Blackmagic Design ATEM Camera Converter
UPC/EAN #9338716001310
MPN #SWRCONV
Live production camera converter with HDMI In/Out, SDI In/Out, 1/4" TRS L/R, 2x 3.5mm headphone/talkback inputs, USB 2.0, and optical fiber In/Out
ATEM Studio and Camera Converters
Now you can position your cameras a long distance away from your switcher and get closer to the action with ATEM Camera and Studio Converters. ATEM Camera Converter is a super tough optical fiber converter with talkback, tally, microphone inputs and a built in long life battery. Using low cost optical fiber you can connect to your cameras up to 28 miles away and even at those great distances you still get full bi-directional video, audio, talkback and tally signals!
Live Camera Connections
ATEM Converters are the perfect solution for live music and sporting events where you need to place cameras in remote locations such as on race tracks or near to a stage, where there is a huge distance between the live action and your switcher! Connect up to 4 ATEM Camera Converters to each ATEM Studio Converter and get multiple camera talkback, so all camera operators can communicate with the switcher operator using talkback that is embedded into channels 15 and 16 of the optical fiber SDI connection.
The ATEM Converters
There are two ATEM converters for use at opposite ends of a live camera connection! ATEM Camera Converter converts your camera?s SDI or HDMI output to optical fiber, with embedded external audio and talkback from the camera position. The machined aluminum design is lightweight, strong and includes an internal long life battery for increased portability. ATEM Studio Converter?s rack mount design has 4 bi-directional optical fiber connections so you can connect multiple camera converters and convert the optical fiber input to SDI and de-embed audio using XLR connections.
Optical Fiber Link
ATEM converters connect using industry standard single mode optical fiber cable with standard LC connectors. Optical fiber lets you connect way beyond the distance of traditional copper cables. It?s widely available, easy to use and affordable because it's the same optical fiber cable used in computer networking. ATEM Camera Converter and ATEM Studio Converter use the standard SMPTE specification for optical fiber connections using standard single mode optical fiber running at 1310nm, which allows you to connect at distances up to 28 miles!
Talkback
During busy live production it's vital to be able to talk to your camera operators. ATEM Camera and Studio Converters take advantage of the 16 channel SDI audio standard and embed the talkback into rarely used channels 15 and 16. ATEM Camera Converter uses standard PC or iPhone type headsets while the ATEM Studio Converter uses more robust aviation headsets that are available in hundreds of different styles! ATEM Studio Converter also features a built in microphone input and speaker so you don't need to use a headset.
Tally
It's important for camera operators to know when their camera is on air, so they don't inadvertently change their shot when millions of people could be viewing! ATEM Camera and Studio Converters support SDI tally output from the program feed of switchers, such as Blackmagic Design's ATEM range of live production switchers. When a camera is on air a red LED illuminates on the ATEM Camera Converter and a red tally border is displayed on the converter's SDI and HDMI monitoring outputs!

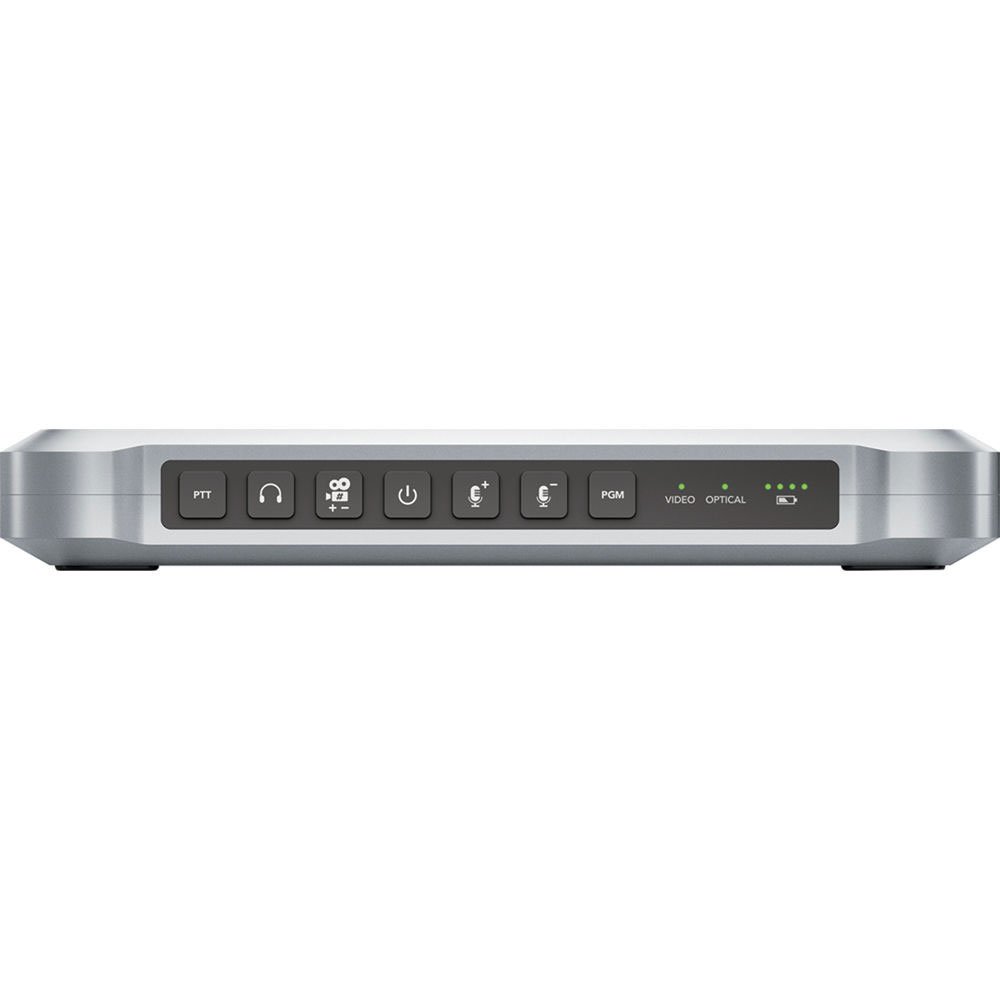

Premium Quality Design
ATEM Camera Converter is machined from a solid block of aluminum to withstand daily use in live production environments. The integrated belt clip lets you operate cameras easily while connected to headsets. ATEM Studio Converter features a stylish machined aluminum front panel for a super tough design that also includes microphone and headset connections, backlit press to talk buttons, plus a built in speaker and volume control for talkback. All video and audio connections are on the rear panel and the built in power supply supports 110V to 240V.

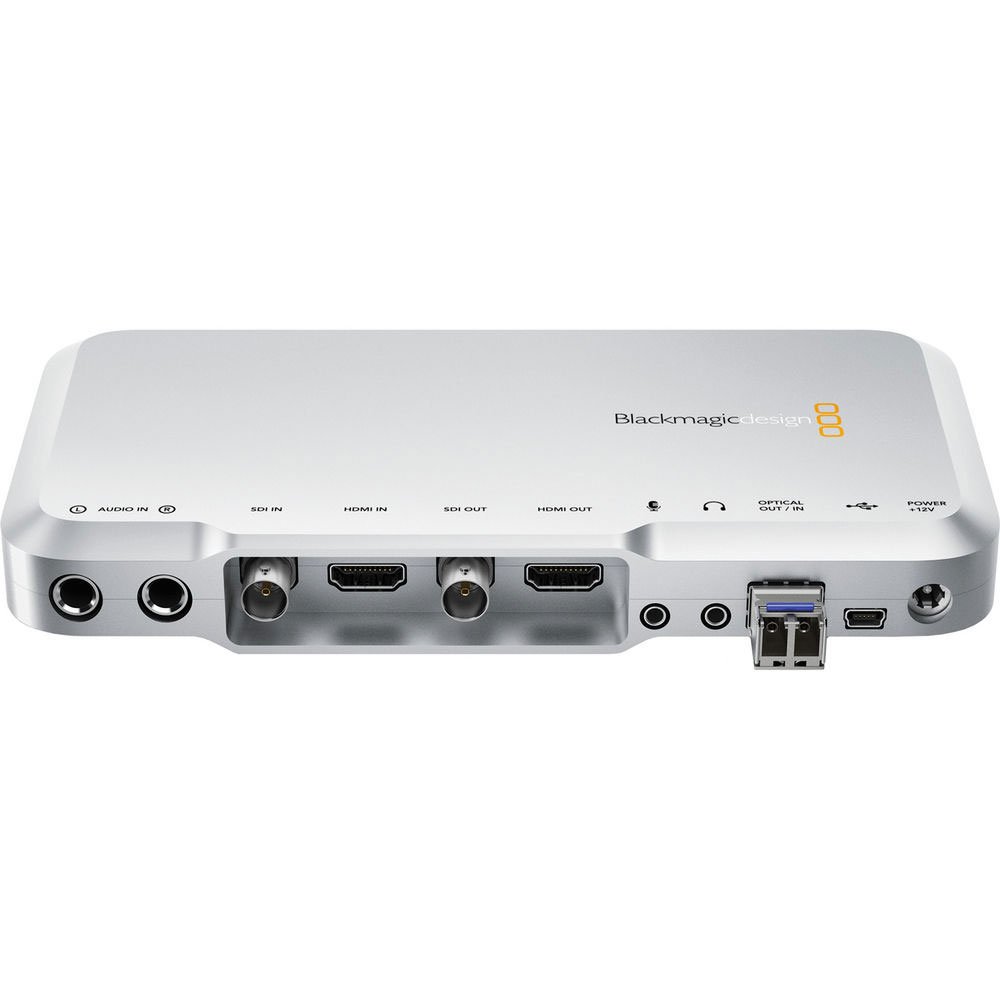

Highest Quality Connections
ATEM Camera Converter features high quality SDI and HDMI inputs for connecting professional SDI and consumer HDMI cameras. It includes 1/4? stereo jack mic/line inputs so external commentary and effects audio can be sent from the camera position. ATEM Studio Converter has 4 bi-directional fiber converters that convert each camera feed from optical fiber to SDI and output balanced analog audio on XLR connectors. Also included is loop program SDI in, plus AES/EBU microphone and headphone loops that let you link multiple ATEM Studio Converters.
Smart Software
Blackmagic Design?s Converter Utility Software lets you quickly set up converter functions, including camera numbers and audio levels. The utility software also lets you update your ATEM Converters with the latest firmware via a USB connection on each converter. This means you can download firmware updates to add new features or support for new video formats. Converter Utility Software is available for both Mac OS X and Windows.
Features
Built-in Button PadAircraft-grade Aluminum ConstructionMicrophone InputsIntegrated Belt Clip / Camera Mount2 Tally LEDs12V Power ConnectionTalkback FunctionInternal BatteryTransmission Distance - 28 miles (45km)Enables Extension of SDI/HDMI Cameras
Specifications

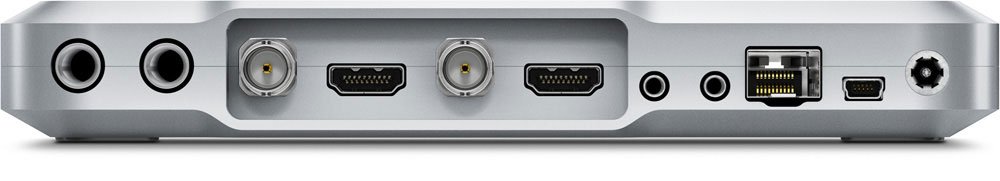

Connections
SDI Video Input: 1 x 10 bit SD/HD switchable.SDI Video Output: 1 x 10 bit SD/HD switchable.HDMI Video Input: 1 x HDMI type A connector.HDMI Video Output: 1 x HDMI type A connector.Talkback Audio: 1 x 3.5mm stereo connector for talkback microphone. 1 x 3.5mm stereo connector for stereo headphones, compatible with iPhone headsets.Analog Audio: 2 x balanced 1/4" TRS connectors (stereo) microphone level in. When connected, replaces audio from SDI In or HDMI In.Optical Fiber Video Input: 1 x single mode SD/HD switchable with LC connector.Optical Fiber Video Output: 1 x single mode SD/HD switchable with LC connector.Optical Fiber Audio Input: 1 x single mode camera audio inputs with LC connector. Channels 1 & 2 are camera audio. Channels 15 & 16 are intercom audio.Optical Fiber Audio Output: 1 x single mode camera audio outputs with LC connector. Channels 1 & 2 are camera audio. Channels 15 & 16 are intercom audio.Computer Interface: 1 x mini-B type USB 2.0 connector for initial setup, firmware updates and Converter Utility software control.
Standards
SDI Format Support: 525i59.94 NTSC, 625i50 PAL, 720p50, 720p59.94, 720p601080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p602K Format Support: 1 2K DCI 24p, 2K DCI 25pHDMI Format Support: 720p50, 720p59.94, 720p601080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 59.94, 60SDI Compliance: SMPTE 259M, SMPTE 292M.Audio Sampling: Television standard sample rate of 48Khz,24 bit A/D conversion.Video Sampling: 4:2:2Color Precision: 10'bitColor Space: REC 601, REC 709Multiple Rate support: SDI and HDMI are switchable between standard definitlon and high definition
Software
Software Included: Converter Utility.
Power Requirements
Power Supply: 12V power supply included with international socket adaptors for all countries.
Environmental Specifications
Operating Temperature: 0° to 40° C (32° to 104° F)Storage Temperature: -20° to 45° C (-4° to 113° F)Relative Humidity: 0% to 90% non'condensing
What's Included
ATEM Camera ConverterWelcome wallet with QR code for software download
