BLACK LION AUDIO  |  SKU: 13978

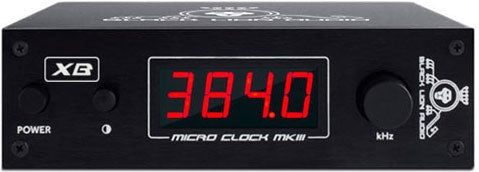

Micro Clock MKIII XB

Master Clocks

The Micro Clock MKIII XB is a very accurate word clock with only 0.6pS RMS of jitter at the BNC outputs. It has less than one third of the jitter of the standard Micro Clock MKIII!

$1,949.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

It boasts incredibly accurate crystal oscillators and superior quality galvanic isolation, both of which contribute to the extraordinarily low jitter measurement.

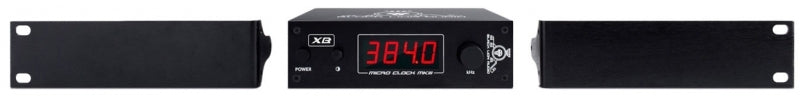

Its small form factor has the ability to drive up to 1,000 feet of coaxial cable and it is suitable for improving the conversion quality of an audio interface. It can sync all of your digital gear together, even if it's located in different rooms, or different buildings. Full- and 1/2-rack removable rack ears are also included.

Features

Ultra-low jitter, harmonically-enhanced word clock signal generation

8 selectable sample rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4kHz, 192 kHz, 352.8 kHz, and 384 kHz

6 BNC outputs with dedicated output drivers for maximum isolation

Specifications

Jitter: 0.6 pS RMS (BNC outputs)

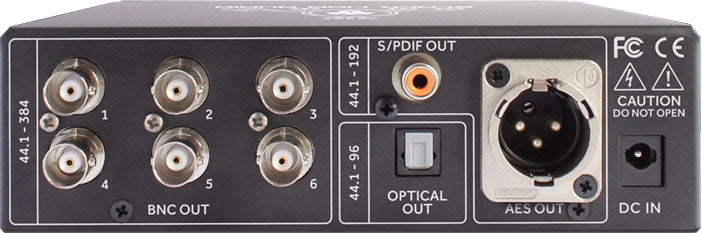

Outputs: 6 x BNC, 1 x XLR AES, 1 x RCA S/PDIF, 1 x optical S/PDIF (recommended max. cable length = 3.3' (1 m)

BNC: 75 Ohms, 5 V unterminated

RCA: S/PDIF: 75 Ohms, unbalanced

AES: 110 Ohms, balanced

Clock Frequency: BNC: 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz

RCA S/PDIF & AES: 44.1, 48, 88.2, 96, 176.4, 192 kHz
Optical S/PDIF: 44.1, 48, 88.2, 96 kHz

Power: 9 VDC (6 W power consumption)

Power Connector: 2.1 mm barrel connector with 5.5 mm outer diameter, center-pin positive

Dimensions (L x W x H): 6.5 x 6 x 1.75" (17 x 15 x 4.4 cm)

Weight: 4 lb (1.8 kg)
