Berkeley Audio Design Alpha DAC Series 3 (Black)
MPN #Alpha DAC Series 3 Black
Digital-to-Analog Converter. Black version
The Alpha DAC Series 3 uses advanced technology from the award-winning Alpha DAC Reference Series 3. Compare the Alpha DAC Series 3 with an Alpha USB noise isolation interface to any DAC available at any price and you will be amazed by Berkeley Audio's quality.
Features
The Alpha DAC Series 3 uses advanced technology from the award winning Alpha DAC Reference Series 3 to provide Reference Level Performance never available before at this price.Compare the Alpha DAC Series 3 to any DAC at any price and hear its superior audio quality.Excellent PCM audio quality from 32kHz to 192kHzExcellent MQA Rendering quality to beyond 384kHzUltra-low phase noise conversion clockingOutputs can connect directly to power amplifiersAll metal Series 3 IR Remote ControlAvailable with a Silver or Black front panel
Specifications

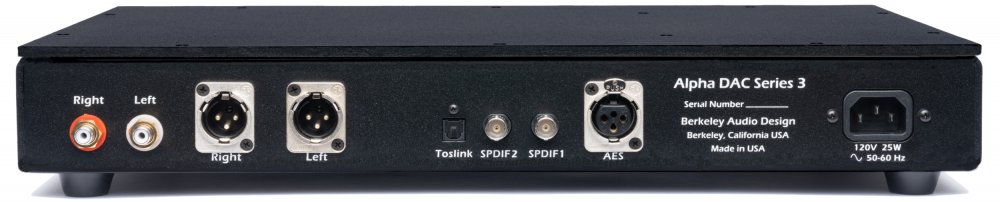

Input sampling rate: 32kHz to 192kHzInput word length: 24-bitUltra-low phase noise Precision Clocking at 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz and 192kHz sampling rates ± 100 ppm Two channel analog stereo outputs: XLR balanced with pin 2 positive and RCA unbalancedDigital Inputs: AES - XLR, 110?; SPDIF1 - BNC, 75?; SPDIF2 - BNC, 75?; TOSLINK - Toslink optical connectorMQA rendering automatically detects MQA Core decoded signals and performs MQA rendering to 384kHz and aboveHDCD decoding detects 16-bit flag at 44.1kHz or 24-bit flag at all sampling ratesMultiple digital filter optionsBalanced analog output level: +18dBu (6.15Vrms) maximum, +12dBu (3.1Vrms) or lower recommendedUnbalanced analog output level: 3.25Vrms maximum, 2Vrms or lower recommendedDigital volume & balance control: 0.1dB/step with .05dB/step L/R gain trim, 60dB rangeFrequency response at ? 88.2kHz sampling rates: ± 0.1dB from < 0.1Hz to 35 kHz, - 3dB at 59kHz for 176.4kHz and 192kHz sampling ratesDistortion at recommended levels: all products ? -120dBFSTHD+N at maximum level: < -110dBFSFirmware is upgradeable through signal inputsEnclosure dimensions: 2.3"H X 16.7"W x 10.6"DWeight: 11.6 lbs.Mains power: 100/120/240VAC, 50/60HzPower consumption: 25W
Controls & Indicators

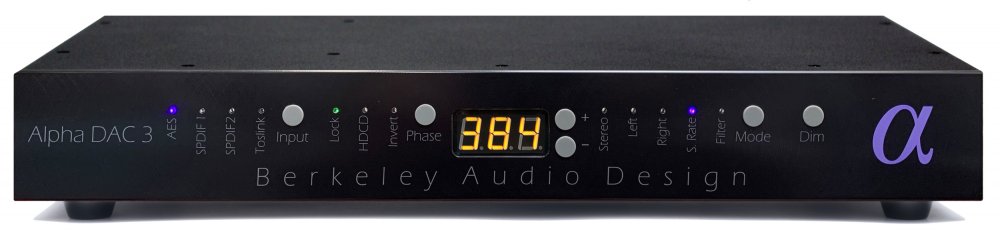

Input selects AES, SPDIF1, SPDIF2 or Toslink inputsLock LED indicates input signal lockHDCD LED indicates HDCD code detectedPhase sets absolute phaseInvert LED indicates absolute phase inverted3 digit LED display of Stereo/L/R attenuation, Sampling Rate and Filter type± controls set attenuation level and select Filter typeMode selects Stereo/L/R attenuation, Sampling Rate and Filter type display modesDim selects multiple display brightness levels
