Benchmark LA4 with Remote Control (Silver)
UPC/EAN #602573174210
MPN #500-17100-101
The LA4 is identical to the HPA4 except that it eliminates the headphone outputs.
The LA4 is well-suited to customers who do not need the headphone amplifier.

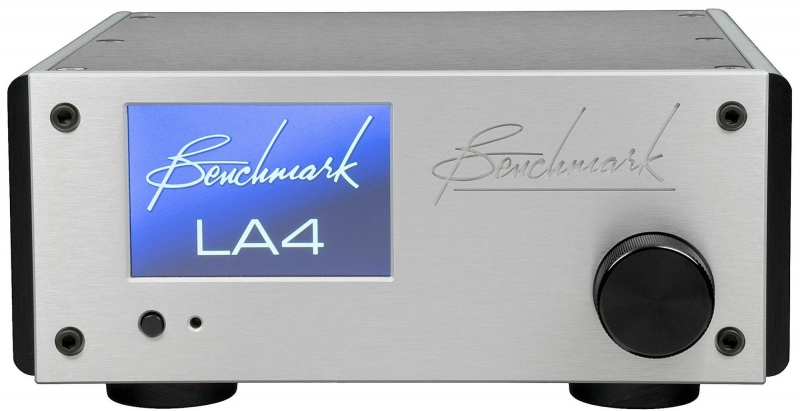

The LA4 is a line-level preamplifier that is designed to sit between a reference-quality D/A converter and a reference-quality power amplifier. This is not an easy task. Most hi-fi preamplifiers introduce significant noise and distortion due to the necessity to provide volume control and input switching. To solve this problem, the LA4 is completely relay controlled and features analog amplifiers with vanishingly low distortion. It features relay gain control, relay input selection, and relay muting. The entire system incorporates the finest gold-contact relays available. The gain control has 256 steps in 0.5 dB increments. It also features a relay-controlled balance adjustment. Relay closures are precisely timed to deliver silky-smooth volume changes. No other relay gain control offers this level of precision or performance. The LA4 includes 2 independent 256-step attenuators: one for the left channel and one for the right channel. To make this all happen, the LA4 includes a total of 40 precision relays that switch high-precision metal-film resistors.
100% Analog Signal Path
The LA4 is 100% analog. It is designed to be driven from external D/A converters and external line-level analog sources. The LA4 is designed to drive any professional or hi-fi power amplifier. The LA4 provides the ultimate analog signal path between inputs and outputs. The LA4 eclipses the performance of typical high-end hi-fi preamplifiers by achieving much lower noise and distortion.
System Optimization
At any volume setting, the relay-controlled gain stage provides an optimized attenuator to match the upstream analog source to the downstream power amplifier. This optimization of the gain staging delivers the best possible system SNR for each volume setting. The LA4 will match high-output D/A converters to low-input power amplifiers and vice-versa. It will also provide an optimized interface to and from balanced and unbalanced devices. In addition, it will match high-level professional balanced interfaces to low-level hi-fi balanced interfaces (in either direction).
Speed and Precision
The bandwidth of the LA4 extends from 0.01 Hz to over 500 kHz. This means that the LA4 delivers very precise amplitude and phase accuracy over the entire audio bandwidth. Wave shapes are accurately reproduced, and the entire spectrum is delivered with precise timing. The LA4 will deliver musical overtones with life-like accuracy. This means that musical instruments are rendered without changing their sonic character.
Balanced and Unbalanced I/O

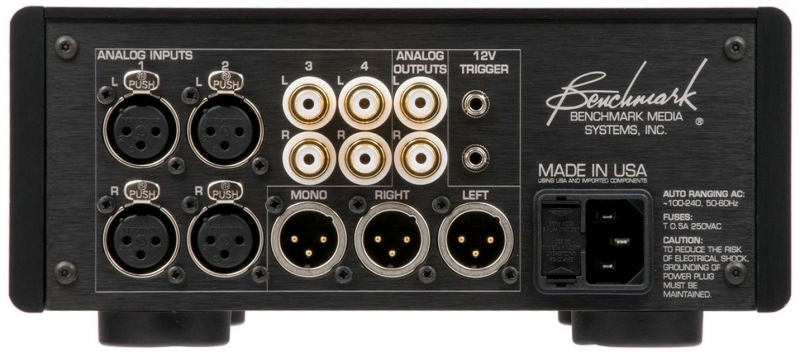

The LA4 features two balanced stereo inputs and two unbalanced stereo inputs. The line amplifier provides one balanced stereo output, one balanced mono sum, and one unbalanced stereo output.
System Integration

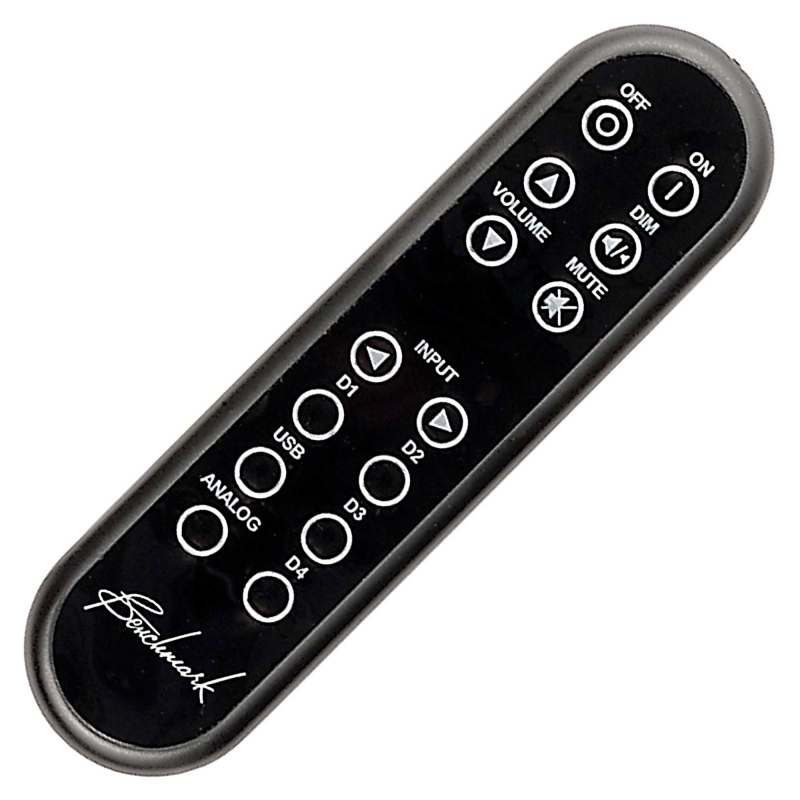

The LA4 includes IR remote control and can be operated using the optional Benchmark remote. The LA4 is designed to work with the Benchmark DAC2 and DAC3 converters but may be driven from any high-end D/A converter. When paired with a Benchmark DAC, a single remote control will operate both units.
The LA4 (line amplifier) or HPA4 (line amplifier + headphone amplifier) are the perfect complement to the Benchmark AHB2. These may be the only preamplifiers or line amplifiers that exceeds the signal to noise ratio of the ultra-quiet AHB2. This means that the LA4 will extract the full performance of the AHB2. In contrast, other preamplifiers limit the system noise performance because they cannot match the SNR performance of the AHB2. The LA4 and HPA4 are the only line amplifier/preamplifiers that we recommend inserting between a DAC and the AHB2. The LA4 or HPA4 can be inserted between a Benchmark DAC3 and AHB2 without degrading the system noise performance. With the LA4 or HPA4 inserted, the DAC3's 32-bit digital gain control is replaced by a more-resolving fully-analog relay gain control.
Two bidirectional 12V trigger ports can be used to link the LA4 with external D/A converters and power amplifiers. The trigger signal controls the power-up and power-down sequencing of the entire audio system. The trigger ports are compatible with most industry-standard trigger input or output ports, but can communicate bidirectionally with other Benchmark products.
Touch Screen
The touch screen provides easy access to advanced features such as balance control, input level offsets, input names, screen dimming, remote control, and function locking. Help screens explain the special functions.
Rotary Encoder
The volume control knob features a high-quality optical encoder that is rated for heavy use. An acceleration feature makes it easy to move through the 256 volume steps while maintaining 0.5 dB/step resolution. A press of the control knob will wake turn on or brighten the screen if you are using the screen sleep or auto-dim functions.
Convenience Features
The LA4 includes an on-screen mute button for the line outputs. Outputs can also be muted with the volume knob or with the optional remote control.
The LA4 includes an on-screen -20 dB "audio dim" button that instantly reduces the level by 20 dB. This function provides a temporary volume reduction and makes it easy return to the previous listening level. This control makes it easy to transition between a normal listening level and a background level. The -20 dB "dim" function is also accessible from the optional remote control.
Inputs may be renamed and unused inputs may be disabled. Input levels can be trimmed to provide input-to-input level matching.
Screen brightness is adjustable and timers can be set to dim or shut off the display. The screen can be locked to prevent access to advanced features.
Features
Benchmark Low-Noise Line Amplifier256-Step Fully-Balanced Relay Gain Control, 0.5 dB StepsPrecision Timed Relay ClosuresPrecision Metal Film ResistorsGold-Contact RelaysBalanced and Unbalanced I/O0.01 Hz to 500 kHzSNR > 135 dBTHD < 125 dB (0.00006%)Touch Screen ControlIR Remote Control (optional)2 Balanced Stereo Line Inputs2 Unbalanced Stereo Line Inputs1 Balanced Stereo Line Output1 Unbalanced Stereo Line Output1 Balanced Mono Sum Output2 Bidirectional 12V Trigger Ports
Specifications
BALANCED LINE OUTPUTS
THD < -125 dB (0.00006%)SNR > 135 dB, unweighted, 20-20 kHzSNR > 137 dB, A-weightedFrequency Response - 0.003 dB at 10 Hz, -0.001 dB at 20 kHz- 3 dB Bandwidth exceeds 0.1 Hz to 500 kHzOutput Impedance 60 OhmsOutput Noise < 1.9 uV at Unity Gain, 20-20 kHzMaximum Input and Output Voltage, 20 Vrms (+28 dBu)Crosstalk < -133 dB @ 1 kHz, -116 dB @ 10 kHz
DIMENSIONS
8.65" W x 3.88" H x 8.33" D - Including Feet8.65" W x 3.47" H x 8.33" D - Excluding Feet
WEIGHT
8.0 lbs., 12 lbs. shipping
POWER
12W Typical Input Power17W Maximum Input power0.33 W Standby Power (when off)Internal Universal Power Supply
Write a review about the Benchmark LA4 with Remote Control (Silver)
![]()
4.0
Dave Wallace
Niagara Falls On.
March 14, 2023
Benchmark LA4
The LA4 was just as advertised, very neutral, transparent with very low noise an excellent preamp.
![]()
5.0
Milos
Toronto, ON
February 19, 2022
Benchmark LA4
Perfect front end for my Quad 909 power amplifiers
