MPN #PAIR 1084WPS

$9789.00

Financing available
Free shipping in Canada. Conditions

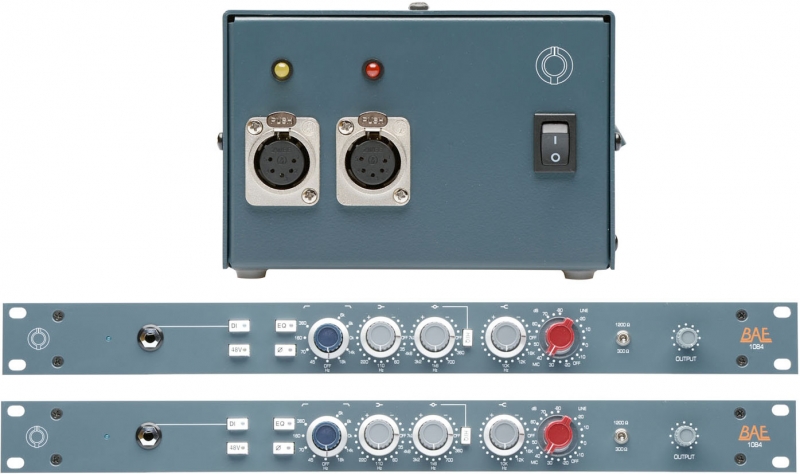

Pair of BAE 1084 Class A Preamp/EQ made from an authentic reproduction of a Neve 1084 module. Includes power supply. The equalizer is very broadbanded and musical.



The 1084 preamp yields a really fat sound. It seems to add subharmonics to the low end which makes the bottom end sound huge. It smoothes the top end which gives the highs a silky sheen. As well the 1084 compresses transients a little bit. It is a smooth, fat., larger than life sound. An added bonus is to use the DI inputs to fatten samples, synths and mixes since the DI can handle line levels.

The 1084 equalizer is very broadbanded and musical. It has a hi-pass filter with four frequencies- 45Hz, 70Hz, 160Hz and 360Hz. It has a lo-pass filter with five frequencies- 6kHz, 8kHz, 10kHz, 14kHz and 18kHz. The low end of this equalizer is so tight that you can boost 220Hz and not muddy up the sound. The mid band has six frequencies- 350Hz, 700Hz, 1.6kHz, 3.2kHz, 4.8kHz and 7.2kHz. As well, the 1084 has a "Hi-Q" button on the mid band for narrower bandwidth. The high band is shelving and is selectable with three frequencies- 10kHz, 12kHz and 16kHz. It is smooth and silky and a little goes a long way.
  • Made from an authentic reproduction of a Neve 1084 module
  • Hi-Z direct inputs on the front panel
  • 48v phantom power on the front panel
  • Balanced mic input, line input and balanced +4 output from XLR connectors on the rear of the module
  • Output level control functions as fader when going straight to tape
  • Modules are mounted horizontally and take up only one rack unit each

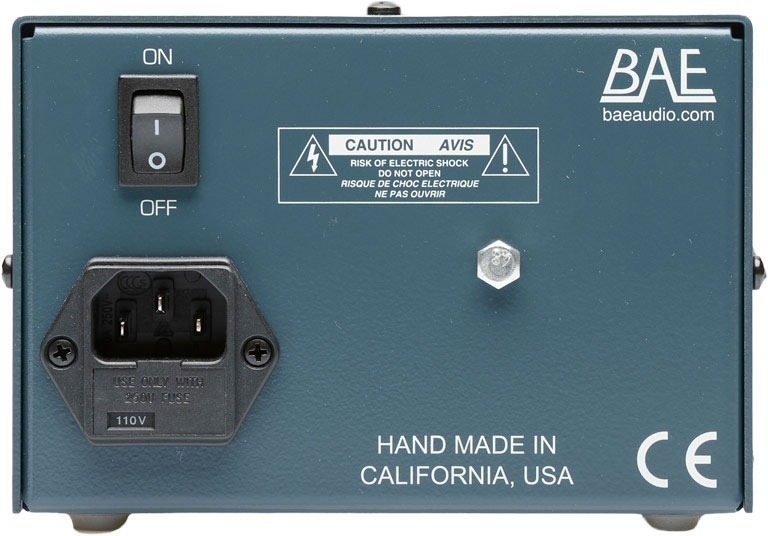

  • Oversize power supply provides four times the current needed for optimum sound quality
  • EQ Button: Switches the equaliser On or Off
  • Frequency Response
    10Hz to -3dB at 55kHz

    3 Band Equaliser
    HF:+/-16dB fixed frequency shelving at 10kHz, 12kHz and 16kHz
    LF: +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz & 220Hz
    MF: +/-18dB peaking, fixed 'Q' with, selectable centre frequencies of 0.36kHz, 0.7kHz, 1.6kHz, 3.2kHz, 4.8kHz & 7.2kHz

    High Pass Filter
    50Hz, 80Hz, 160Hz & 300Hz

    Low Pass Filter
    6kHz, 8kHz, 10kHz, 14kHz, & 18kHz

    Mic Input Impedance
    1200/300 ohms

    Line Input Impedance
    10k ohms

    DI Input Impedance
    150k ohms

    Output Impedance
    65 ohms

    Common Mode Rejection Ratio
    100dB min @ 60Hz

    Maximum Output Level
    +27.4 dBu @ 600

    Power Requirements
    115/230 VAC, 28W

    Gain dB
    0 to 80 dB

    Equivalent Input Noise
    -110 dBu; Unweighted 300kHz Bandwidth

    Weight ( Module/Rackmount )
    6 LBS/2.72 KG
    10 LBS/4.54 KG

    Dimensions in Inches ( Module/Rackmount )
    45 mm W x 8.75 inches H x 10.5 inches D
    19W x 1.75L x 9D
