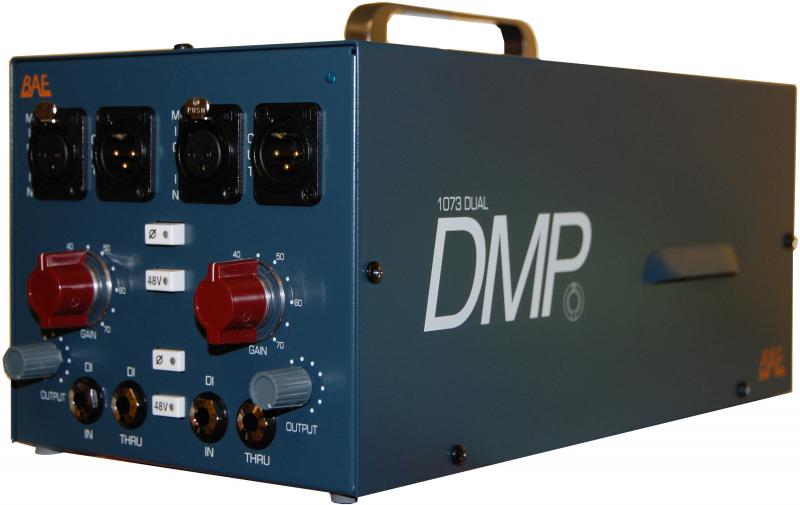

The BAE 1073 Dual DMP Desktop mic pre features include two DI thrus and built in PSU for extra portability. Same hand-wired modular design that BAE is known for.

The 1073 Dual DMP features the same pre-amps and the same Carnhill (St Ives) transformers as the 1073 and 1084.

All units come standard with the 'Bootsy Collins' mod (channel one ONLY) which consists of a Jensen DI transformer to create the first 1073 direct box. The Dual DMP features include two DI thrus, phase reverse, 48V for phantom power, a built in PSU for extra portability and the same hand-wired modular design that BAE is known for.

Features

  • Built in PSU for extra portability.
  • DI in and DI through.
  • 48v for phantom power.
  • Solid steel chassis.
  • Same hand-wired modular design that BAE is known for.
  • Specifications

    Frequency Response
    10Hz to -3dB at 55kHz

    Mic Pre Input Impedance
    1200 ohms

    DI Input Impedance
    150k ohms

    Output Impedance
    65 ohms

    Common Mode Rejection Ratio
    100dB min @ 60Hz

    Maximum Output Level
    +27.4 dBu @ 600

    Power Requirements
    115/230 VAC, 28W

    Gain Voltage
    0 to 33.4 Volts

    Gain dB
    0 to 71 dB

    Equivalent Input Noise
    -110 dBu; Unweighted 300kHz Bandwidth
