BAE 1032 - Mic Pre/EQ Module
MPN #1032MOD

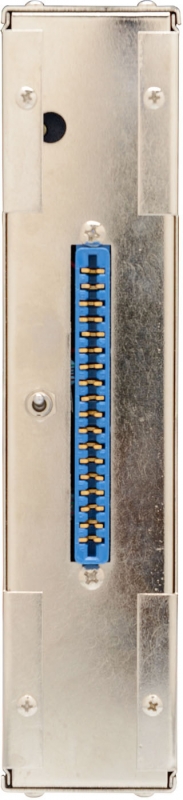

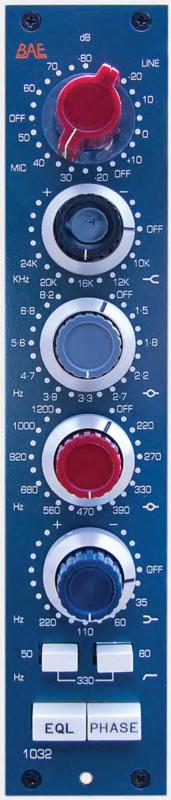

The BAE 1032 4-band Mic/Line preamp Module was inspired by the frequencies of the classic 1081. Hand wired, all discrete using modular cards and Class A transformer-coupled.
It uses the same high quality components and manufacturing techniques used in other BAE modules featuring the same Class A transformer-coupled circuits and same modular cards for long-term serviceability.
Along with the passive inductor high-pass filter, the 4-band equalizer provides greater coverage. The high-mid and low-mid frequencies overlap for flexibility in correcting problem frequencies. The 1032 also provides a more comprehensive high frequency shelf up to 24kHz for extended high frequency correction without compromising the midrange.
Many people loved the EQ portion of the 1081 but the amplifier was class A/B. Our clients told us that they prefer the class A output and so we now have a 1081 inspired equalizer with a 1073 preamp.
Features
Inspired by the 1081 EQ points using the same inductor specifications.Class A transformer-coupled.Hand wired, all discrete using modular cards.4-band with HPF.Low and High Mid-band overlapping frequencies.Extended selection for high frequency shelving.High quality Swiss made Elma rotary switches.
Specifications
1032 Specifications
80dB Class A Microphone preamplifier, HI-LO selectable input impedance, balanced and floating.
High Frequency:
+/-16dB selectable frequency shelving at 10, 12 or 16 kHz.
Low Frequency:
+/-16dB with selectable frequency shelving of 35Hz, 60Hz, 110Hz & 220Hz.
1081 Upper Mid Frequency:
+/-18dB peaking, fixed 'Q' , selectable centre frequencies of 1.5Khz, 1.8kHz, 2.2Khz, 2.7kHz, 3.3Khz, 3.9kHz, 4.7kHz, 5.6kHz , 6.8kHz and 8.2Khz , inductor based.
1081 Lower Mid Frequency:
+/-18dB peaking, fixed ´Q´, selectable center frequencies of 220Hz, 270Hz, 330Hz, 390Hz, 470Hz, 560Hz, 680Hz, 820Hz, 1000Hz and 1200Hz, , inductor based.
High Pass Filter:
18dB per octave slope, switchable between 50Hz, 80Hz & 300Hz, inductor based.
EQ Button:
Engages the equalizer.
Phase Button:
Flips phase180.
Mic Input Impedance:
HI, 1200 Ohm minimum, LO, 300 Ohm.
Line Input Impedance:
10KOhms bridging, transformer balanced and floating.
Output Impedance:
Less than 75 Ohms, transformer balanced and floating, to drive a load of 600 Ohms.
Maximum Output:
Greater than +26dBm into 600 Ohms, greater than +32dBu into 10KOhms.
THD:
Less than 0.025% at 1Khz, Less than 0.05% at 100Hz.
Frequency Response:
20Hz (+0.3dB) to 20Khz (-0.2dB).
Maximum Gain:
Slightly greater than 80dB.
Noise:
Less than -100dBm.
Power consumption:
110 mA @24VDC.
