MPN #1028WPS

$5416.00

Financing available
Free shipping in Canada. Conditions

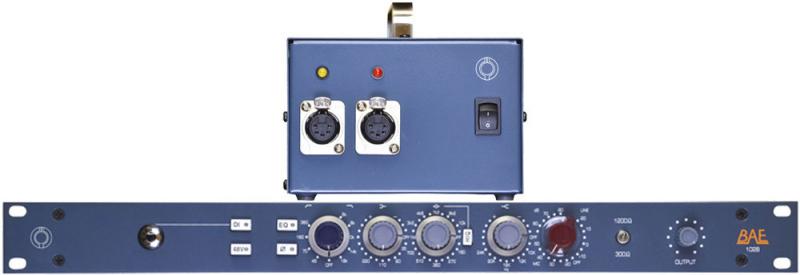

The BAE 1028 Mic Pre/EQ is completely hand-wired using Carnhill (St. Ives) transformers. It has the exact same mic/line preamp as the 1073 with more freq in the mid and hi sections



Aside from simply offering more frequency settings to play with, these expanded EQ sections also allow you to play the mid bell curve directly against the high and low shelves where they overlap. This capability opens the tone shaping possibilities in very interesting and musical ways. The 1028 includes the same low pass filter as the 1084, giving it 28 frequencies.
  • High Frequency: +/-16dB shelving with selectable frequencies of 10kHz,12kHz, 16kHz, 20kHz and 24kHz
  • Low Frequency: +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz & 220Hz.
  • Mid Range: +/-12dB or +/-18dB peaking with switchable selectable centre frequencies of 160Hz, 270Hz, 360Hz, 510Hz, 700Hz, 1.6kHz, 3.2kHz, 4.8kHz, 7.2kHz, 8.2kHz, 10kHz.
  • High Pass Filter: 18dB per octave slope, switchable between 45Hz, 70Hz, 160Hz & 360Hz.
  • Low Pass Filter: 18dB per octave slope, switchable between 6kHz, 8kHz, 10kHz, 14kHz, & 18kHz.
  • EQ Button: Switches the equaliser on or off
  • Phase Button: 180ยบ
  • Frequency Response
    10Hz to -3dB at 55kHz

    3 Band Equaliser
    HF: +/-16dB fixed frequency shelving at 10kHz,12kHz, 16kHz, 20kHz and 24kHz
    LF: +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz & 220Hz
    MF: +/-18dB +/-12dB or +/-18dB peaking with switchable selectable centre frequencies of 160Hz, 270Hz, 360Hz, 510Hz, 700Hz, 1.6kHz, 3.2kHz, 4.8kHz, 7.2kHz, 8.2kHz, 10kHz

    High Pass Filter
    45Hz, 70Hz, 160Hz & 360Hz

    Low Pass Filter
    18dB per octave slope, switchable between 6kHz, 8kHz, 10kHz, 14kHz & 18kHz

    Mic Input Impedance
    1200/300 ohms

    Line Input Impedance
    10k ohms

    DI Input Impedance
    150k ohms

    Output Impedance
    65 ohms

    Common Mode Rejection Ratio
    100dB min @ 60Hz

    Maximum Output Level
    +27.4 dBu @ 600

    Power Requirements
    115/230 VAC, 28W

    Gain dB
    0 to 80 dB

    Equivalent Input Noise
    -110 dBu; Unweighted 300kHz Bandwidth

    Weight (Module/Rackmount)
    6 LBS/2.72 KG 10 LBS/4.54 KG

    Dimensions in Inches (Module/Rackmount)
    45 mm W x 8.75 inches H x 10.5 inches D 19W x 1.75L x 9D
