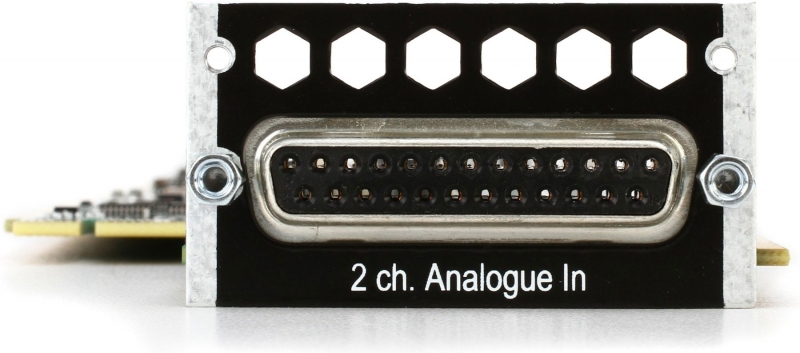

Avid MTRX - 2 Mic/Line Pristine AD Card
MPN #9900-71249-00
The MTRX - 2 Mic/Line Pristine AD Card is an Expansion Card for Avid Pro Tools MTRX Audio Interface offering high-quality AVID AD conversion
About Pro Tools MTRX
Pro Tools | MTRX is fully modular, enabling you to customize it with up to eight analog and/or digital audio I/O option cards to create a 64-channel interface for Pro Tools | HD. You can install a maximum of six AD and/or DA cards to support up to 48 analog channels. Or design an all-digital box-or any combination between. Just start with the Pro Tools | MTRX base unit and go from there. Or design an all-digital box-or any combination between.
Pro Tools | MTRX 8 Line Pristine AD Card
Add eight channels of line-level analog inputs.
Pro Tools | MTRX 2 Mic/Line Pristine AD Card
Add two channels of analog inputs and mic preamps with
relay-based gain circuit-an ideal low-cost option for talkback
and tracking.
Pro Tools | MTRX 8 Mic/Line Pristine AD Card
Add eight channels of analog inputs and mic preamps with
relay-based gain circuit.
Pro Tools | MTRX 8 Pristine DA Card
Add eight channels of line-level analog outputs with an output
level control.
Pro Tools | MTRX 8 AES3 I/O Card
Add eight line AES3 inputs and outputs (16 channels),
with built-in sample rate conversion.
Pro Tools | MTRX Dual SDI/HD/3G Card
Add 2 x 16 channels of SDI/HD/3G connections
(embed/de-embed) with built-in sample rate conversion.
Pro Tools | MTRX 64-Channel IP Audio Dante Module
Add up to 64 channels of low-latency digital audio using
Dante (64 channels at 44.1 kHz or 16 channels at 192 kHz).
Pro Tools | MTRX Dual MADI I/O Card
Add 128 channels of MADI inputs and outputs through two
optical SFP ports.
Pro Tools | MTRX MADI Module for Base Unit
Add an additional one or two 64-channel I/O coaxial or optical
MADI module to the chassis.
Specifications
ANALOG INPUTS 2 MIC/LINE
Mix preamps: 2
Input gain: Adjustable from -18 to +70 dB, in steps of 0.1 dB, ± 0.25 dB accuracy
Max input level: Adjustable from 9 dBu to 30 dBu in steps of 0.1 dB
Mic equivalent input noise (A): < -133 dB
Sampling, resolution: 5-bit sigma/delta @ 5.645 or 6.144 MHz, 24-bit PCM
DSD sample rates: 2.8224 and 5.6448 Mhz (64 and 128 fs)
THD+N (A): < -117 dB @ -3 dB FS / 0.00014%
Crosstalk: < -120 dB
Input Impedance: > 10 k Ohm
SYSTEM REQUIREMENTS
Pro Tools | HDX or Pro Tools | HD Native system running Pro Tools | HD 12 or higher software
