MPN #9935-73264-00

$1199.00

Financing available
Free shipping in Canada. Conditions

USB audio interface for Pro Tools Studio with 21x22 simultaneous I/O capability featuring 4x mic/line/instrument inputs, 4x balanced line in, MIDI, FX Send/Return, S/PDIF and ADAT



Bring professional recording power to your personal studio. Powered by Pro Tools Studio, the MBOX Studio USB audio interface provides everything you need to make music and more. From finding inspiration and composing ideas to recording, monitoring, and mixing the next big hit, its intuitive design puts pure creative power at your fingertips, reducing your time to fun.

Sound incredible with a powerful USB audio interface
MBOX Studio is designed with only the highest quality components, preamps, and audio converters in its class, enabling you to capture and mix up to 24-bit, 192 kHz audio from input to output. Variable Z opens up a whole range of tonal options. And with built-in real-time EQ, delay, and reverb, plus independent cue mixing, you can deliver your best performances with low-latency tracking.

Quickly bring your ideas to life
Easily create, record, edit, and mix music, plus podcast and live stream, without technology getting in the way.

Access a full range of functions right from the interface to keep your creativity flowing
Capture and mix music in pristine sound quality with four mic preamps and premium convertors
Record with mics, instruments, effects, and more with 21 x 22 simultaneous I/O" see more features
  • 4 mic preamps/line inputs with Variable Z (impedance)
  • 2 Variable Z instrument inputs
  • 4 additional line inputs
  • 2 impedance-switching effects loops
  • 2-way simultaneous stereo Bluetooth I/O
  • Optical I/O (8-channel ADAT or 2-channel S/PDIF)
  • Coaxial S/PDIF I/O
  • MIDI I/O
  • 2 stereo monitor outputs
  • 1 Hi-Z reamplification output with ground lift
  • 2 headphone outputs with individual cue mixes
  • 2 footswitch/expression pedal inputs
  • System requirements
    Computer: Avid-qualified USB-equipped Mac or Windows-based computer (see details)

    General
    Simultaneous I/O: 21 x 22
    Audio resolution: 24-bit, 44.1/48 kHz 21 x 22; 24-bit, 88.2/96 kHz 17 x 18; 24-bit, 176.4/192 kHz 8 x 10
    Built-in DSP: Avid FX"EQ, Delay, Reverb, Tuner
    Mic preamps: 4
    Phantom power: +48V switch
    Form factor: Desktop interface
    Dimensions (H x W x D): 4.1 x 11.3 x 8.9 inches (105.2 x 288 x 225.3 mm)
    Weight: 6.1 lbs (2.8 kg)
    Computer connectivity: USB-C 2.0 (includes USB-A adapter)

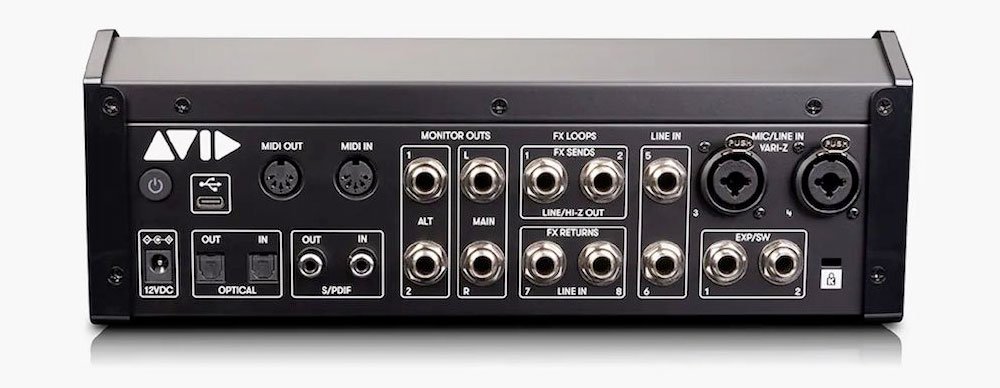

    Inputs and outputs
    Analog inputs
    2 combo mic/line/instrument inputs with Variable Z (impedance) on the front panel (inputs 1"2)
    2 combo mic/line inputs with Variable Z on the back panel (inputs 3"4)
    4 line inputs (inputs 7"8 shared with FX Returns)

    Analog outputs
    2 stereo monitor outputs (Main and Alt)
    2 headphone outputs
    2 Hi-Z switchable FX Loops Sends
    1 Hi-Z out to amp (mirrors FX Send 2)

    Digital inputs
    1 Optical input (8 channels of ADAT or 2 channels S/PDIF)
    1 coaxial S/PDIF input

    Digital outputs
    1 Optical output (8 channels of ADAT or 2 channels S/PDIF)
    1 coaxial S/PDIF output

    Other I/O
    MIDI I/O
    2 footswitch/expression pedal inputs

    A/D conversion
    Mic preamps
    Max Input Level: 14 dBu
    Gain Range: 60 dB
    Dynamic Range: 112 dB
    THD+N: 0.001%
    EIN: -129 dB (A-weighted)
    Frequency Response: 20 Hz"20 kHz, ±0.125 dB

    Line inputs
    Max Input Level: 14 dBu
    Gain Range: 60 dB
    Dynamic Range: 112 dB
    THD+N: 0.001%
    Frequency Response: 20 Hz"20 kHz, ±0.125 dB

    Instrument inputs
    Max Input Level: 14 dBu
    Gain Range: 60 dB
    Dynamic Range: 108 dB
    THD+N: 0.004%
    Frequency Response: 20 Hz"20 kHz, ±0.125 dB

    D/A conversion
    Line outputs
    Max Output: 19 dBu
    Dynamic Range: 110 dB
    THD+N: 0.002%
    Frequency Response: 20 Hz"20 kHz, ±0.125 dB

    Monitor outputs
    Max Output: 19 dBu
    Dynamic Range: 110 dB
    THD+N: 0.0012%
    Frequency Response: 20 Hz"20 kHz, ±0.125 dB

    Headphone outputs
    Dynamic Range: 102 dB
    Frequency Response: 20 Hz"20 kHz, ±0.2 dB
    Output Power: 120 mW > 32 Ohm

    Hi-Z output (reamp)
    Dynamic Range: 103 dB
    THD+N: 0.002%
    Frequency Response: 20 Hz"20 kHz, ±0.3 dB

    Included hardware and accessories
  • MBOX Studio USB interface
  • USB-C cable
  • USB-C female to USB-A male adapter
  • Power adapter
  • Registration card

  • Included software
    Pro Tools Studio 1-year subscription
    Sibelius Artist 1-year subscription (desktop and mobile app)
    MBOX Control
    Celemony Melodyne 5 essential (part of the Pro Tools Studio bundle)
    SoundFlow Cloud Avid Edition (part of the Pro Tools Studio bundle)

    Included plugins and sounds
    All plugins included with Pro Tools Studio
    MBOX Ignition Pack
    Baby Audio Vibe Box"exclusive plugin only available with MBOX Studio
    BPM Create"MBOX Producer Toolkit with sounds and samples
    Brainworx A/DA Flanger"A/DA Flanger stompbox emulation
    Brainworx Ampeg SVT-VR Classic"Ampeg bass amp emulation
    Brainworx bx_bluechorus2"Boss CE-2 Chorus stompbox emulation
    Brainworx bx_console N"Neve VXS console channel strip emulation
    Brainworx bx_greenscreamer"Ibanez TS 808 Tube Screamer emulation
    Brainworx bx_megadual"Mesa Boogie Dual Rectifier emulation
    Brainworx bx_opto compressor"all-around compressor emulation
    Gauge LUSH VOX"parallel compression + processor for vocals
    Avid Loopmasters Sample Pack (part of the Pro Tools Studio bundle)
