Avedis Audio MD7
MPN #MD7

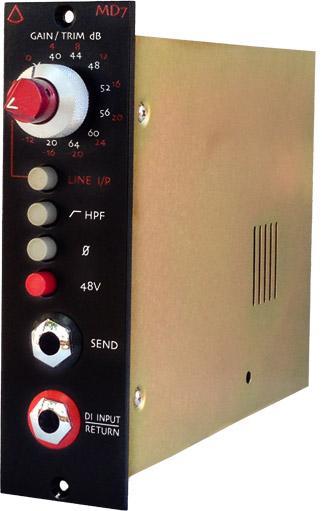

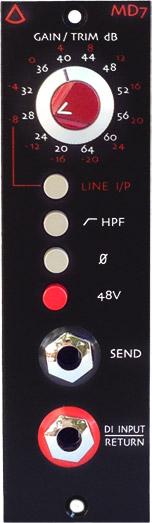

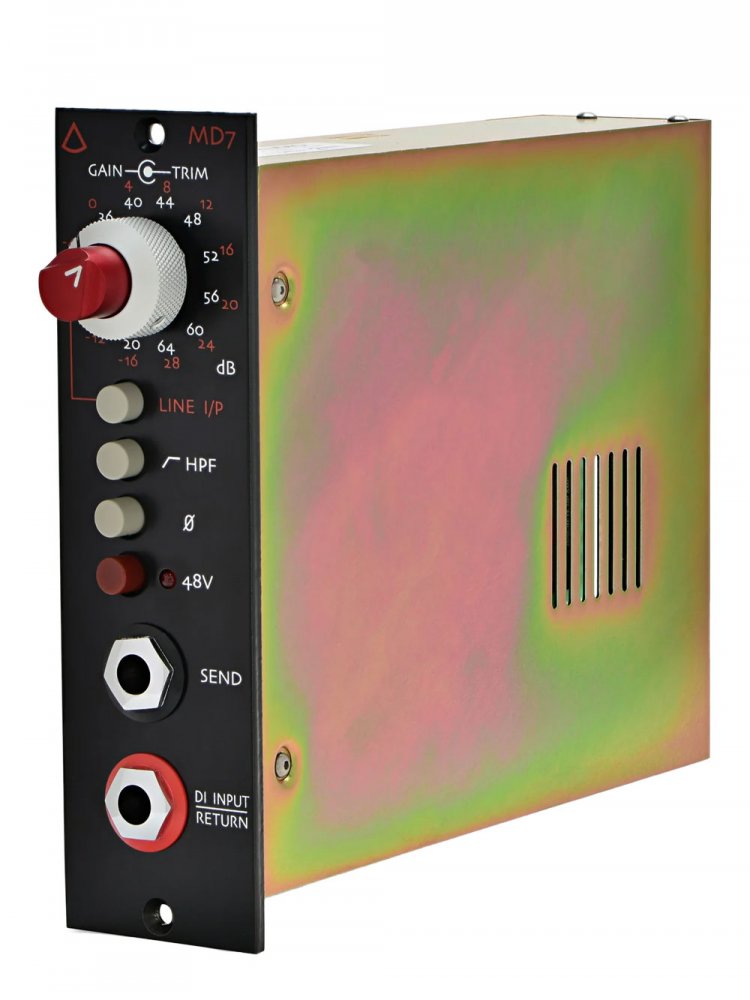

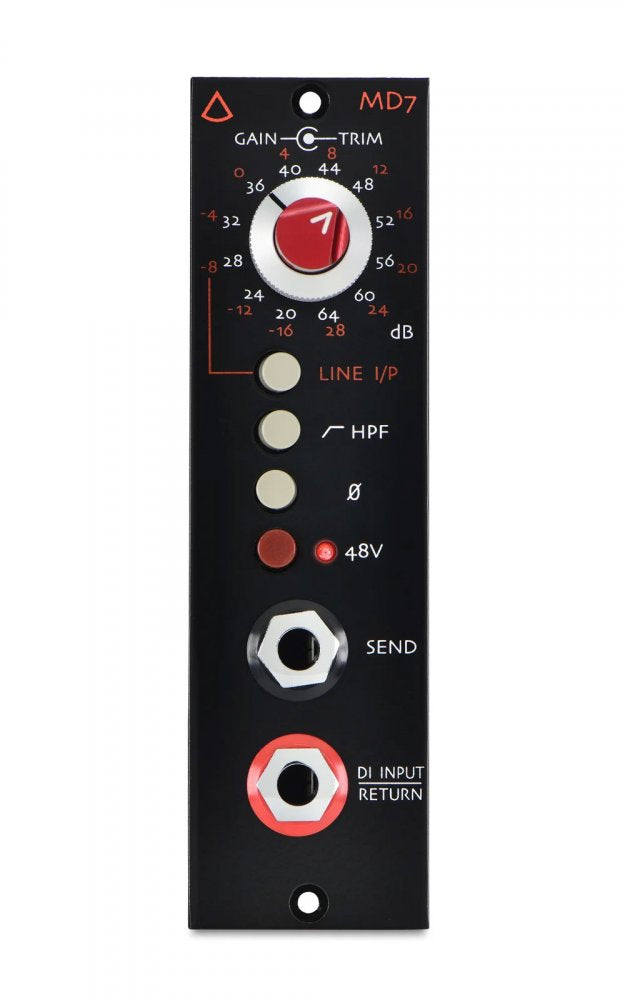

The Avedis MD7 is 500 series preamp with 64 dB of gain in 4dB step increments and input trim control. It also features a Send/Return for outboard insert capability.
Gain range from 0dB - 64dB in 4dB steps for recall-abilityInput Trim control for fine control of gainUtilizes the discrete 1122 op-amp known for depth and resolutionAll discrete design with class A buffer amplifierWide bandwidth, high headroom, low noiseNO PAD, NO IC's, and NO Surface Mount ComponentsLine Input to interface with DAW'sPhase reverse, and filtered 48V phantom powerHigh Pass Filter using a gentle slope for natural bass roll-off10 Meg-ohm high impedance DI input great for all instrument pickupsSEND feature to run signal through stomp boxes for variety of effects
Specifications
Frequency Response: <10Hz to -3dB at 75kHzInput Impedance: 1500 ohmsOutput Impedance: <75 ohmsCommon Mode Rejection Ratio: >123dB min @ 60HzMaximum Output Level: +28.8 dBu @ 100K, +27.4 dBu @ 600Power Requirements: ±16 vdc @ 35mA per railGain Voltage: 0 to 22 VoltsGain dB: 0 to 64.7 dBEquivalent Input Noise: 114 dBu; Unweighted 300kHz bandwidthWeight: 2.6 lbs / 1.18kg
