Audioroot uPRE MKII
MPN #uPREMKII
The Audioroot uPRE MKII is the successor of the uPRE microphone preamp which was first introduced in 2010.
The new MKII's electronic design benefits from many enhancements including a 24bits/192kHz digital output.

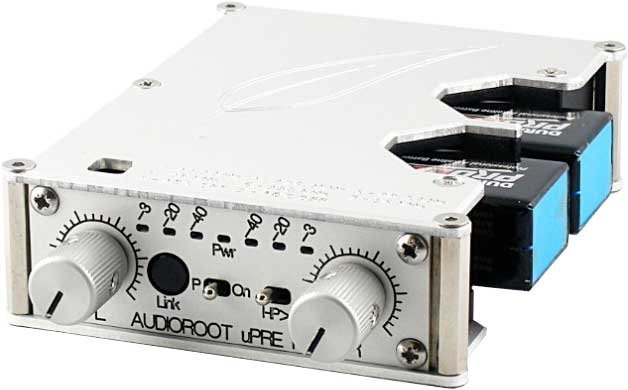

This unit is a small, lightweight, high quality microphone preamplifier designed for ENG/EFP or musical production. It can be operated with 2 x 9V batteries or an external power supply via a Hirose push-pull connector. It will add 2 mic inputs to your recorder thru analog and/or digital inputs. The wide range trims offers perfect control over audio level.
Specifications
2 Electronically balanced mic inputs via Switchcraft mini XLRHigh efficiency 48V Phantom for Mic Power on each channel80 Hz 12dB/Oct LF Cut filter on both channels-50dB to +80dB input gain trimsStereo LinkM/S Decoding - can be used as a mono mixerUnbalanced outputs via Switchcraft mini XLR5AES (default) or SPDIF 24bits/192kHz digital outputMiniature 3 leds level indicator per channelPower / low battery indicator (13V threshold)Rugged hybrid polyamid/aluminum housingAnodized/engraved face plates2 x 9V batteries or 9 - 18V external power supply (automatically switched)5 hours typical battery autonomy with 2 Schoeps CMC6Ug and ADC ON10 hours battery autonomy with dynamic microphones and ADC OFFCompatible with environnement friendly iPOWERUS lipo batteriesOptional 100-240V power supply130 x 85 x 30mm / 255 grams
The optional uPRE MKII CABLE KIT includes the following :
2 XLR mic inputs cables1 mini XLR stereo output cable (mini XLR5 to 2 x mini XLR3)1 XLR3 AES output cable
Recommended external 100-240V PSU (not included) : MEAN WELL GE12I18-P1J
