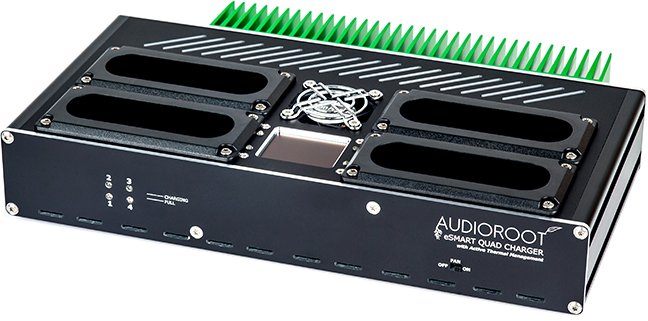

Audioroot eSMART QUAD CHARGER
UPC/EAN #8504403090
MPN #eSMART QUAD
The eSMART QUAD CHARGER is our eSMART chargers product line. The unit is powered directly through mains AC and features a 160x128 pixels OLED screen and PWM controlled fan
Thermal behavior of the charger is automatically monitored and controlled through an Active Thermal Management system. This system uses fan speed or charging current to ensure the quietest and coolest operation possible. When users choose the fan based cooling of the unit the fan's speed is automatically controlled by the charger's internal temperature. Users can disable the fan's operation with a switch located on the charger's front panel. Once the fan is disabled the integrated micro-controller will adapt the charger's maximum charging current to reduce heat generation inside the unit.
Specifications
Maximum charging current per bay : 2.0A
160x128 pixels full color OLED screen
Ultra quiet (10dBA min / 28dBA max) ON/OFF switchable and PWM controlled fan
All anodized aluminum CNC machined and extruded enclosure with laser engraving
90-240V AC input / 150W
IEC C14 power input connector
Weight : 1.6Kg
Dimensions : 270 x 176 x 53mm

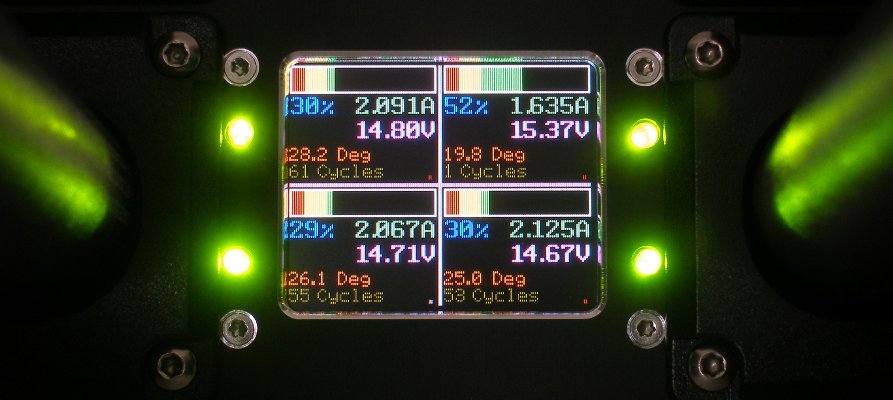

OLED display informations:
Battery capacity (%)
Charging current
Charging/battery voltage
Battery temperature
Battery cycle count
Batteries not included
