Audio Technica BP4025

UPC/EAN #4961310102890 MPN #BP4025

$949.00

Financing available

Be the first to write a review

Free shipping in Canada. Conditions

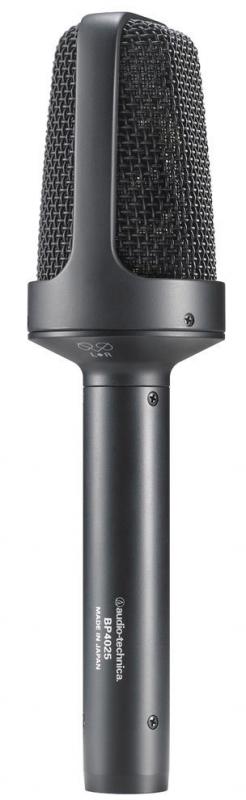

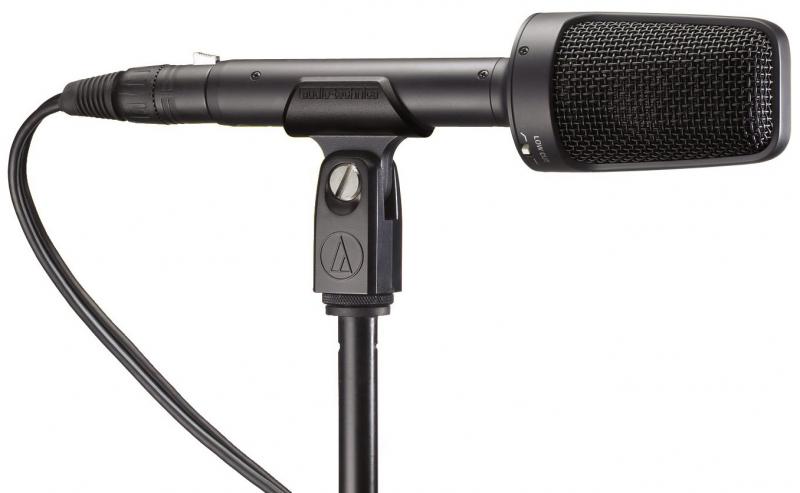

The Audio Technica BP4025 is a X/Y Stereo Field Recording Microphone. Innovative coincident capsule configuration produces accurate stereo image in smaller housing.

Designed for broadcast and professional recording, Audio-Technica's BP4025 stereo condenser offers large-diaphragm capsules in an innovative coincident capsule configuration. This allows for a smaller housing while producing an X/Y stereo image with the spatial impact and realism of a live sound field. Ideal for use with professional audio and video equipment, the microphone is fully RoHS-compliant - free from all substances specified in the EU directive on the reduction of hazardous substances (RoHS).

Features

Large-diaphragm capsules offer pristine sound quality and exceptionally low noise

Innovative coincident capsule configuration produces accurate stereo image in smaller housing

Compact, lightweight design is ideal for camera-mount use

Excellent channel separation

Phantom power operation-for use with professional equipment

Switchable low-frequency roll-off and 10 dB pad

Includes one balanced cable (two 3-pin XLRM-type connectors at output)

RoHS-compliant - free from all substances specified in the EU directive on the reduction of hazardous substances (RoHS)

Specifications

ELEMENT: Fixed-charge back plate permanently polarized condenser

POLAR PATTERN: X/Y Stereo

FREQUENCY RESPONSE: 20-17,000 Hz

LOW FREQUENCY ROLL-OFF: 80 Hz, 12 dB/octave

OPEN CIRCUIT SENSITIVITY: -32 dB (25.1 mV) re 1V at 1 Pa

CHANNEL BALANCE: <2.5 dB

IMPEDANCE: 170 ohms

MAXIMUM INPUT SOUND LEVEL: 145 dB SPL, 1 kHz at 1% T.H.D. - 155 dB SPL, with 10 dB pad (nominal)

DYNAMIC RANGE (typical): 131 dB, 1 kHz at Max SPL

SIGNAL-TO-NOISE RATIO: 80 dB, 1 kHz at 1 Pa

PHANTOM POWER REQUIREMENTS: 11-52V DC, 7 mA typical (both channels total)

SWITCH: Flat, roll-off; 10 dB pad (nominal)

WEIGHT: 269 g (9.5 oz)

DIMENSIONS: 186.0 mm (7.32") long, 47.6 mm (1.87") head diameter 21.0 mm (0.83") body diameter

OUTPUT CONNECTOR: Integral 5-pin XLRM-type

CABLE: 5.0 m (16.5') long, 8 conductor, shielded, vinyl-jacketed stereo cable with 5-pin XLRF-type connector at microphone end and two 3-pin XLRM-type connectors at output end

ACCESSORIES FURNISHED: AT8405a stand clamp for 5/8"-27 threaded stands; windscreen; soft protective pouch

AUDIO-TECHNICA CASE STYLE: S12
