Audio Technica ATM350UL
UPC/EAN #4961310136734
MPN #ATM350UL

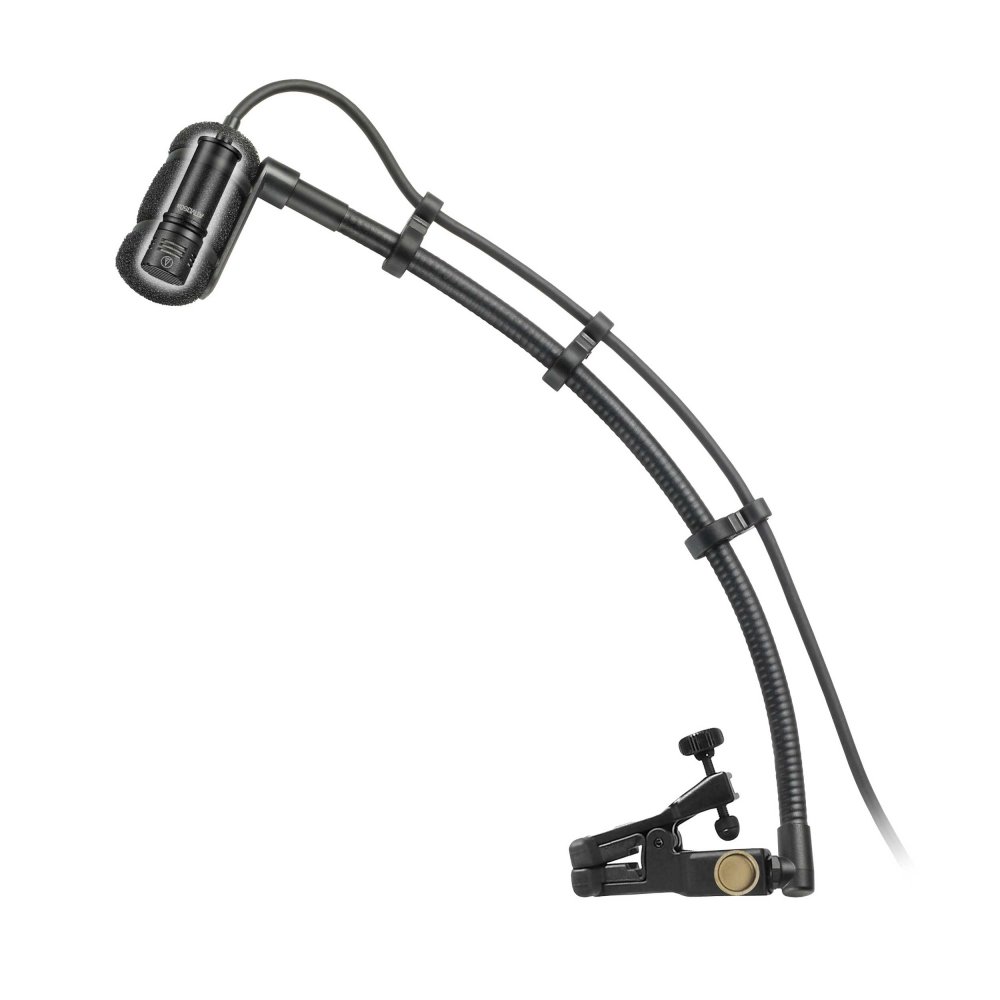

Designed for use with brass, saxophone and other instruments, the ATM350UL is a cardioid condenser instrument microphone with universal clip-on mounting system (9" Gooseneck)

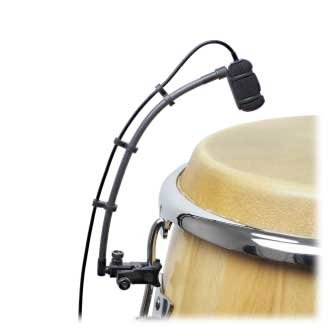

The system features the ATM350a cardioid condenser microphone, a high-SPL mic that provides a clear, well-balanced response from any instrument. When teamed with the included AT8491U universal clip-on mount and strong, flexible AT8490L 9" gooseneck, the mic can be clipped securely to the bell of your instrument and positioned to stay where you want it - the gooseneck won't flop around no matter how aggressively you move the instrument as you play.
The microphone's cardioid polar pattern isolates the instrument by reducing side and rear pickup, and the switchable 80 Hz high-pass filter on the in-line power module helps control undesired low-frequency noise. The system also includes an AT8468 violin mount with hook-and-loop fastener and a protective carrying case.
Features
Low-profile mic design for minimum visibilityCrisp, clear, well-balanced microphone response, even at high SPLsCardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound sourceUniMount universal clip-on mount attaches securely to instrument bell and provides excellent shock resistance for the microphoneRugged UniMount 9" gooseneck rigidly holds its shape, keeping microphone accurately positioned even during aggressive playIn-line power module is equipped with a switchable 80 Hz high-pass filter to control undesired ambient noiseInterchangeable elements available for hypercardioid and omnidirectional polar patternsIncluded violin mount with hook-and-loop fastener provides an additional mounting option
Specifications
ELEMENT: Fixed-charge back plate, permanently polarized condenser
POLAR PATTERN: Cardioid
FREQUENCY RESPONSE: 40 - 20,000 Hz
LOW FREQUENCY ROLL-OFF: 80 Hz, 12 dB/octave
OPEN CIRCUIT SENSITIVITY: -49 dB (3.5 mV) re 1V at 1 Pa
IMPEDANCE: 200 ohms
MAXIMUM INPUT SOUND LEVEL: 159 dB SPL, 1 kHz at 1% T.H.D.
DYNAMIC RANGE (typical): 130 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO: 65 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS: 11- 52V DC, 3.5 mA typical
SWITCH: Flat, roll-off
WEIGHT (MICROPHONE): 14.5 g (0.5 oz)
WEIGHT (POWER MODULE): 90 g (3.2 oz)
DIMENSIONS (MICROPHONE): 37.8 mm (1.49'') long, 12.2 mm (0.48'') maximum body diameter
DIMENSIONS (POWER MODULE): 92 mm (3.62") long, 18.9 mm (0.74") diameter
OUTPUT CONNECTOR (POWER MODULE): Integral 3-pin XLRM-type
CABLE: 4.0 m (13.1') long (permanently attached to microphone), 3.2 mm (0.13") diameter, 2-conductor shielded cable with HIROSE HR10-type connector
OPTIONAL INTERCHANGEABLE ELEMENTS: UE-H hypercardioid (100), UE-O omnidirectional (360)

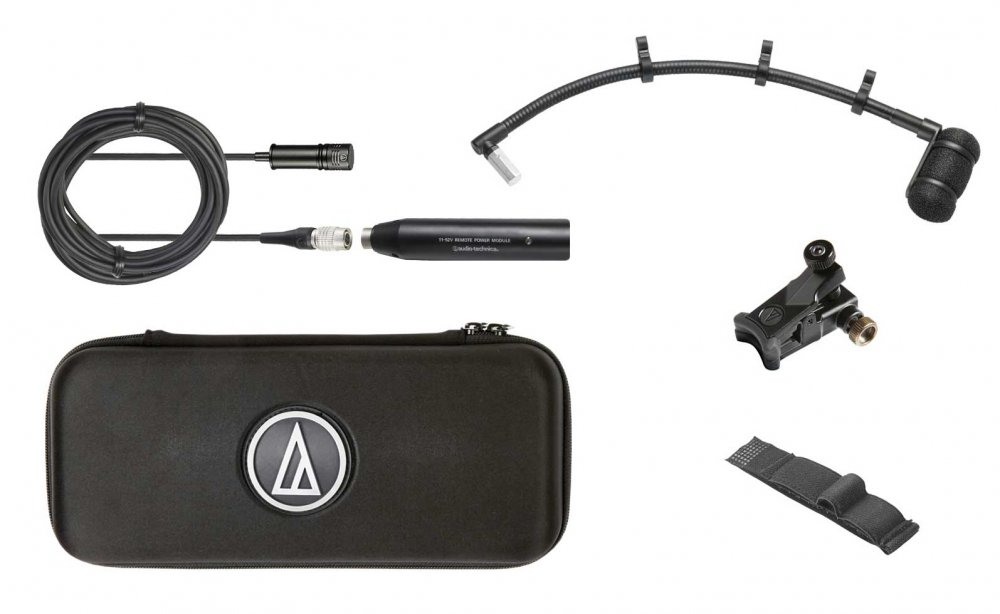

ACCESSORIES FURNISHED: ATM350a cardioid condenser microphone; AT8543 power module; AT8491U UniMount universal clip-on mount; AT8490 UniMount 9" gooseneck; AT8468 violin mount (hook-and-loop fastener); protective carrying case
AUDIO-TECHNICA CASE STYLE: M36
