Audio Technica ATDM-0604a
UPC/EAN #4961310158040
MPN #ATDM-0604a
Digital SmartMixer 6-channel automatic mixer (gate or gain sharing); four balanced mic inputs and two balanced mic/line inputs
The ATDM-0604a automatic mixer is ideal for meetings, conferences, soft codec applications, courtroom proceedings, radio and TV broadcasts and other applications involving the use of multiple microphones or other media inputs. Audio-Technica's SmartMixer technology allows channels to be mixed automatically in gate or gain sharing mode, ensuring consistent, high-quality audio output from all inputs in a setup, without the introduction of feedback, excessive ambient noise, or comb filtering.
Features

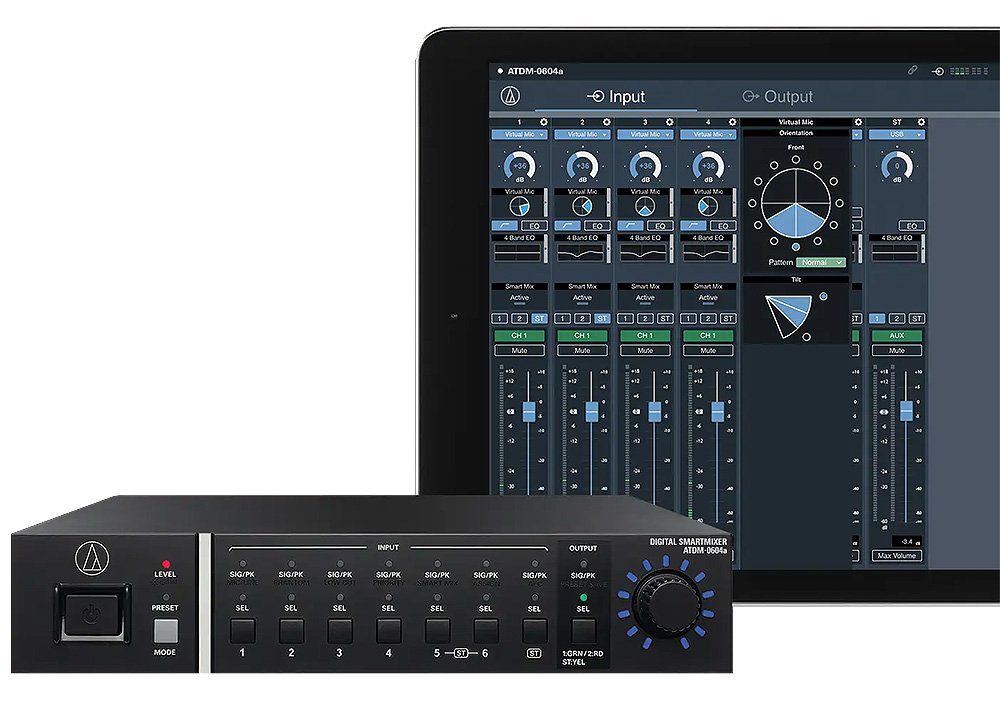

6 mic/line inputs and 1 unbalanced stereo input2 balanced outputs and 1 unbalanced stereo outputUSB audio input/output (1 stereo input, 1 stereo output)Remote LED control of ES954 hanging microphone arrays using the GPO terminalSmartMixer with selectable gain sharing or gate modeHigh-performance echo canceler for each input channelNoise cancellation that can be assigned to any output channelBuilt-in 4-band EQ and compressor/de-esser for each input channelEight 8-band feedback suppressors that can be assigned to mic/line inputs and any output channelBuilt-in 12-band PEQ, compressor, and limiter for each output channelDedicated Audio-Technica LINK terminals are compatible with a wide variety of Audio-Technica LINK-enabled productsAudio input/output settings can be configured from the front panel in applications without a computerAdvanced settings can be configured using the web browser or Smart Mixer Manager app GUI in applications with a computerIP Protocol-based external remote controlCompatible with Barco ClickShare Conference
Specifications
Maximum Gain: 64 dB
Frequency Characteristics:
20 Hz to 20 kHz (MIC -16 dBu)
+1.0 / -1.0 dB 20 Hz to 20 kHz (MIC -60 dBu)
+1.0 / -2.0 dB 20 Hz to 20 kHz (LINE 24 dBu): +1.0 / -1.0 dB 20 Hz to 20 kHz (LINE -40 dBu)
+1.0 / -2.0 dB
Dynamic Range:
110 dB or higher
A-weighted/ST
S/N Ratio:
90 dB or higher
A-weighted/ST
Headroom:
20 dB or higher
