ATOMOS  |  SKU: 22389

Shinobi II

Monitors & Screens

5-inch 1920x1080 touchscreen monitor, 1000 nits brightness, HDMI input, 3D LUT support, real-time monitoring, battery-powered, lightweight design, durable build

$509.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

Atomos has been developing amazing monitoring and recording technology for over a decade. Shinobi II has been redesigned with a new, slimline case and a 50% brighter HDR screen, yet it still manages to pack in all of Atomos' renowned screen processing technology and professional monitoring tools, plus exciting new hardware features like camera control. Take control of Canon, Panasonic or Sony cameras via USB-C, plus Z CAM cameras via optional USB-C to Serial cable. More vendors will be supported with future firmware releases. Due to its low power consumption and efficient hardware, Shinobi II will run all day on a single battery charge. Expose your shots accurately using our advanced exposure tools like false color, zebras, histograms, waveforms and vectorscopes. A multi-tool Analysis View gives you all the essential info at a glance. There's even a selfie Mirror Mode for vloggers. Shinobi II is the perfect accessory to improve any photo or video production.

Features

Much slimmer body and low-profile design " weighs just 210gms.

50% brighter " 1500nit HDR, 5-inch, high-resolution touchscreen.

Camera control via USB-C for Canon, Panasonic and Sony cameras, plus Z CAM cameras via optional USB-C to Serial cable.

Use the Camera Status indicators to check the camera's internal record settings, battery status & remaining record time.

New AtomOS 11 user interface has a more modern look, more responsive operation and easy access to all the most-used monitoring tools.

Powered by NP-F style batteries, or via USB-C PD (10W input). Also charge/power the camera via USB-C PD (13W output).

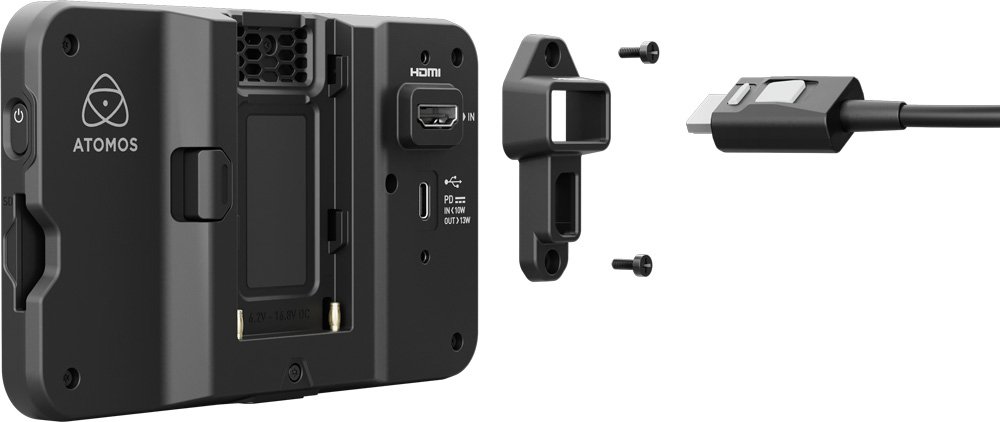

Included HDMI & USB-C locking adapter allows you to use Atomos' new line of locking cables for rock-solid connectivity.

Unique Analysis Mode can deploy the waveform, histogram & vectorscope tools simultaneously.

Frame Guides and 9 Grid help get perfect framing and composition.

Low power consumption - Shinobi II can run all day off a single battery charge.

Specifications

Display

Size: 5.2 inches

Type: IPS LCD

Resolution: 1920 x 1080 pixels (Full HD)

Aspect Ratio: 16:9

Brightness: 1000 nits

Viewing Angle: 170 (horizontal/vertical)

Color Gamut: Rec.709 and DCI-P3

Input/Output

HDMI Input: 1 x HDMI 1.4 (supports up to 4K/30p or 1080p/120)

HDMI Output: N/A (input only)

Battery

Type: Sony L-Series (NP-F) battery compatible

Battery Life: Approx. 4-5 hours with NP-F970 battery

Power Input: 12V DC (via locking DC connector)

Audio

Input: HDMI embedded 2-channel audio

Output: 3.5mm headphone jack

Build

Dimensions: Approx. 151 x 91.5 x 31.5 mm

Weight: Approx. 196g (without battery)

Construction: Polycarbonate body

User Interface

Touchscreen: Yes, capacitive touch

Features: Focus peaking, zebra, false color, frame guides, anamorphic de-squeeze, LUT support

LUT Support: 3D LUT (.cube format), 8 LUTs preloaded, custom LUTs via SD card

Mounting

1/4"-20 screw mount (on top and bottom)

Additional Features

SD card slot for LUTs and firmware updates

Customizable waveform monitor, histogram, and vectorscope

Multi-language support

Fanless design for silent operation

Power Consumption

Approx. 6W

Operating Temperature

0C to 40C (32F to 104F)

Storage Temperature

-20C to 60C (-4F to 140F)
