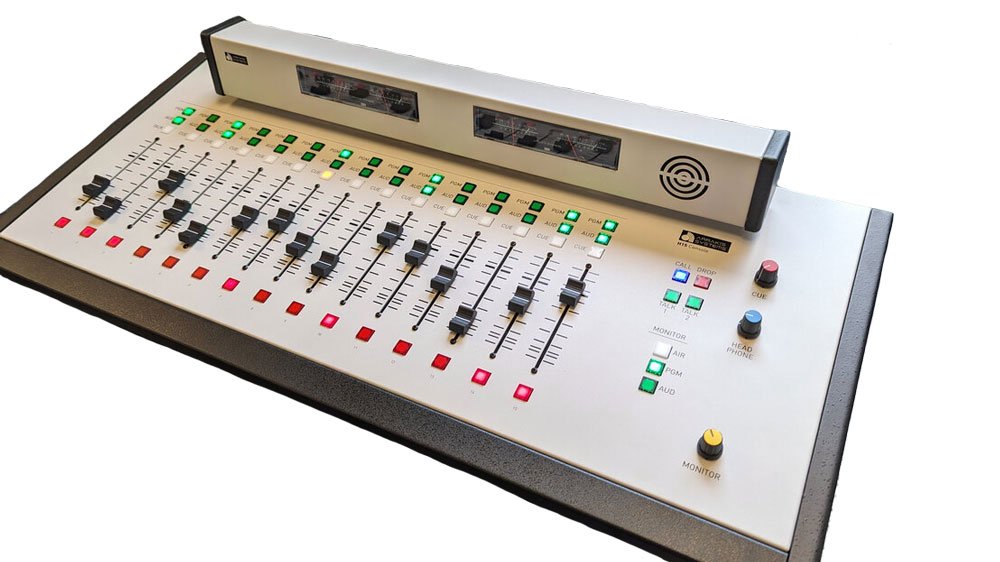

H15 - Lite

15-channel analog studio console with 2 stereo output buses

25 total inputs including mic, line, USB, phone, and Bluetooth

Same hardware and audio performance as the full H15, without remote software control

Ideal for studios that don't require network-based operation or remote access

Software and remote control hardware not included (upgradeable anytime)

Built-in USB input/output channel for direct PC or Mac connectivity

1 to 5 mic preamp channels with optional 48V phantom power (selectable by dip switch)

7 to 12 stereo line channels with active balanced RJ45 and unbalanced RCA inputs

Bluetooth-enabled channel (15) for wireless streaming or phone calls

2 phone channels (14 & 15) with hybrid connection and mix-minus feed

Talkback system with cue speaker and built-in amp

Classic VU meters for Program and Audition outputs

Conductive plastic linear faders with high resolution and dust protection

Long-life LED illuminated switches rated for millions of operations

RF-resistant with balanced and unbalanced inputs and outputs

Stereo and mono output options with XLR and RCA connectors

Headphone output and stereo line-level output for external amplifier

Auto-sensing power supply (110"220V AC) for global compatibility

Built tough with socketed ICs for easy service and long-term reliability

Compact console size: 33 in W - 15 in D - 5.25 in H

Includes USB cable, RCA audio cable, RJ45 cables (6), 3.5 mm cable, power supply, and manual

Upgrade path available to add full software control later-just pay the difference

General Overview:

15-channel professional analog console

Identical hardware to standard H15 console

No H-Series Controller hardware or software included

Ideal for studios that do not require remote software control

Fully upgradeable to full H15 version at any time

Channel Configuration " 5 Input Types:

Mic Channels (1"5): Built-in mic preamps with XLR inputs, Dip-switch selectable mic or line level, Optional 48 Volt phantom power (sold separately), Channel 1 includes Talkback to studio monitor

Stereo Line Channels (6"12): Active balanced RJ45 and unbalanced RCA inputs, Rear dip-switch selectable line level, Trim adjustment per channel

USB Channel (13): USB audio interface (PC/Mac) for play & record, Sound card functionality with any software, Simple USB cable connection

Phone Channels (14"15): Connect to external phone hybrids, Mix-minus feed, Cue/talkback controls for off-air communication

Bluetooth Channel (15): Wireless audio connection via Bluetooth, Take calls or stream media from any Bluetooth device, Preserves hardware from repetitive plugging/unplugging

Monitoring & Outputs:

2 Stereo output buses: Program (Pgm) and Audition (Aud)

Balanced XLR and unbalanced RCA outputs

Mono mixdown available for both buses

Headphone system with built-in amp and stereo balanced output

Real VU meters (backlit) for Program and Audition buses

Sub-output mix for independent monitoring

Hardware Build & Durability:

High-reliability conductive plastic faders with dust protection

LED illuminated switches (5 million cycle rated)

Socketed ICs for easy maintenance

Balanced I/O design to resist RF interference

Momentary LED switches with no bulbs to replace

Designed for 24/7 use in pro broadcast environments

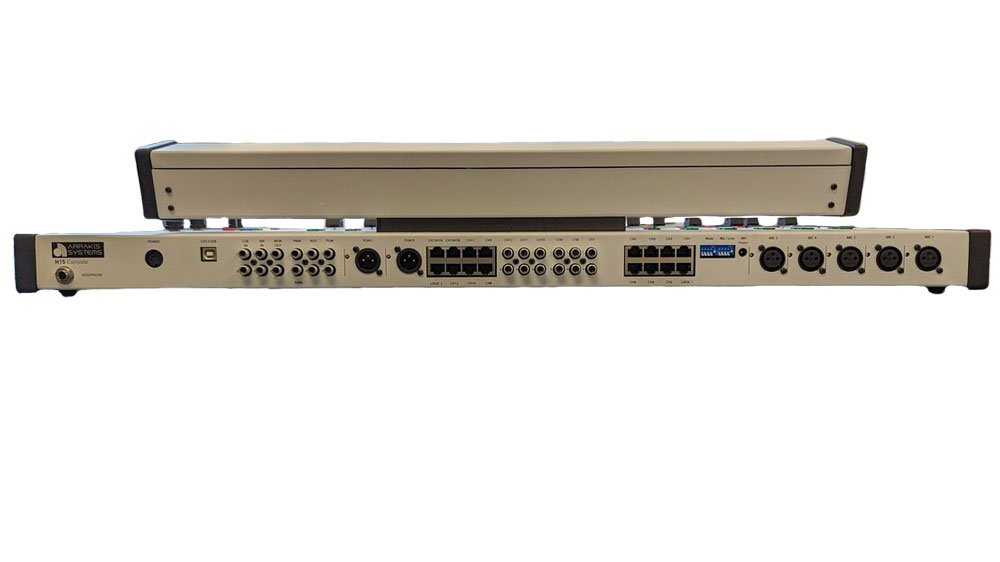

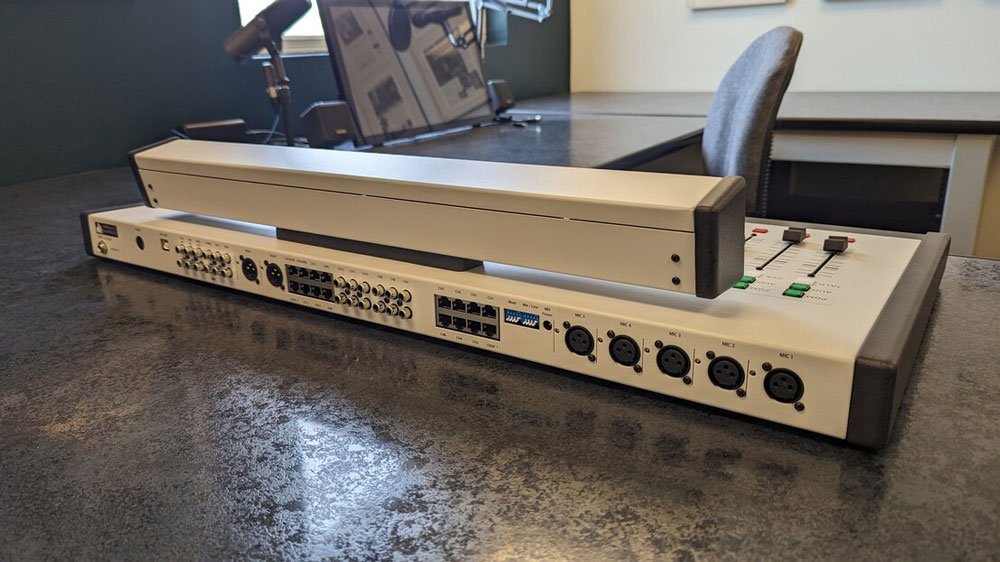

Connectivity & Installation:

Balanced audio via RJ45 connectors (world-standard pinout)

Supplied with RJ45, RCA, USB, and 3.5 mm cables

Optional pre-made cables for XLR and RCA available

Autosensing power supply (110"220 Volt AC, 50/60 Hertz)

Power supply certified: UL, CE, CS, CB

Stereo Line Input:

Frequency Response: ±0.5 dB (20 Hertz"20,000 Hertz)

Signal-to-Noise Ratio: -82 decibels typical (+8 dBu in/out)

Total Harmonic Distortion: 0.01% typical

CMRR: -75 decibels at 1 kilohertz

Max Input: +23 dBu balanced

Mono Mic Input:

Frequency Response: ±0.5 dB (20 Hertz"20,000 Hertz)

Equivalent Input Noise: -115 dBu typical

THD: 0.05% typical

CMRR: -60 decibels at 1 kilohertz

System:

Max Output Level: +23 dBu

Stereo Separation: -75 decibels at 1 kilohertz

Crosstalk (Pgm to Aud): -80 decibels @ 1 kHz, -70 decibels @ 20 kHz

Crosstalk (Cue to Pgm): -90 decibels @ 1 kHz, -75 decibels @ 20 kHz

Physical Specifications:

Console Dimensions: W: 33 inches (839 millimeters), D: 15 inches (381 millimeters), H: 5.25 inches (133 millimeters)

Shipping Dimensions (Box #1): W: 12 inches (305 millimeters), H: 19 inches (483 millimeters), D: 37 inches (940 millimeters)

Weight: 40 pounds (18 kilograms)

Included Accessories:

H15-Lite Console

Power supply (auto-sensing 110"220 Volt AC)

Operations manual

USB cable

RCA audio cable

RJ45 cables (x6)

3.5 mm audio cable

Upgrade Path:

Upgradeable to full H15 with software/hardware control

Return to manufacturer with prepaid shipping label

Pay only the price difference (additional repairs/warranty extension extra)

Upgrade turnaround: 3"5 business days
