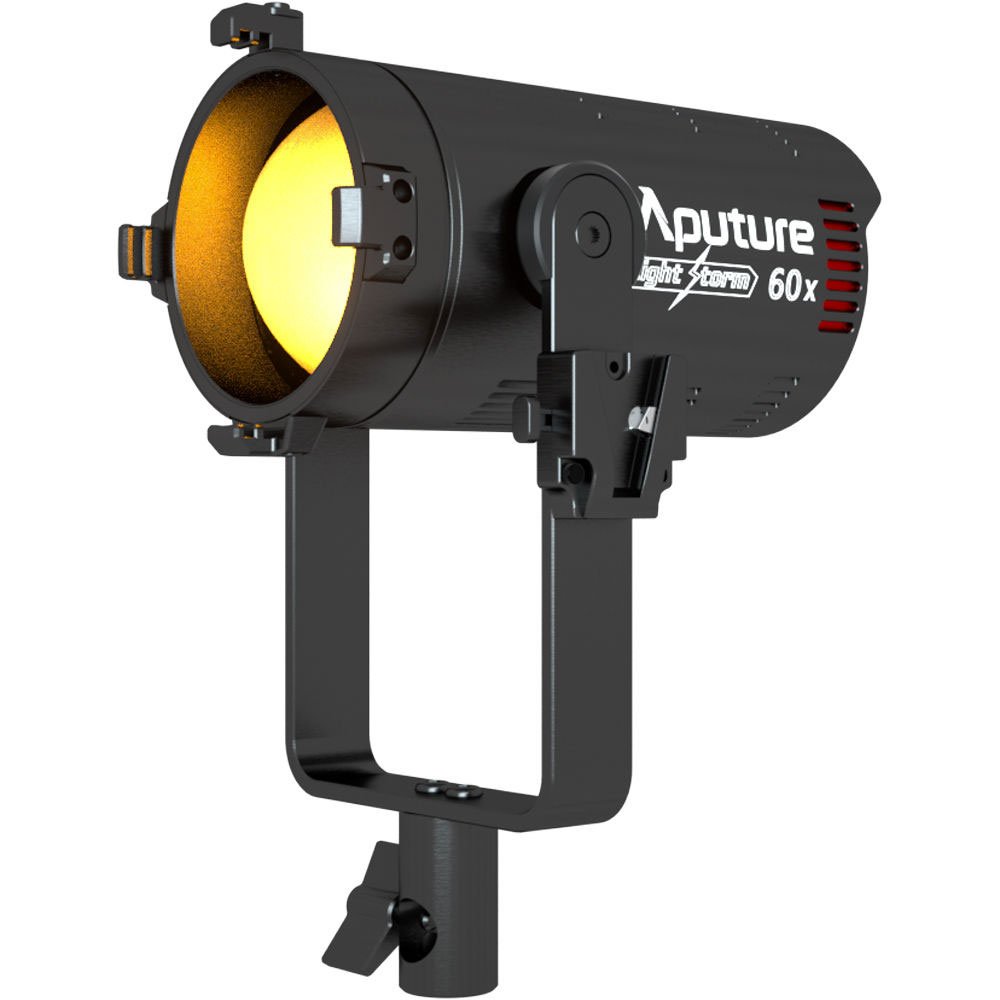

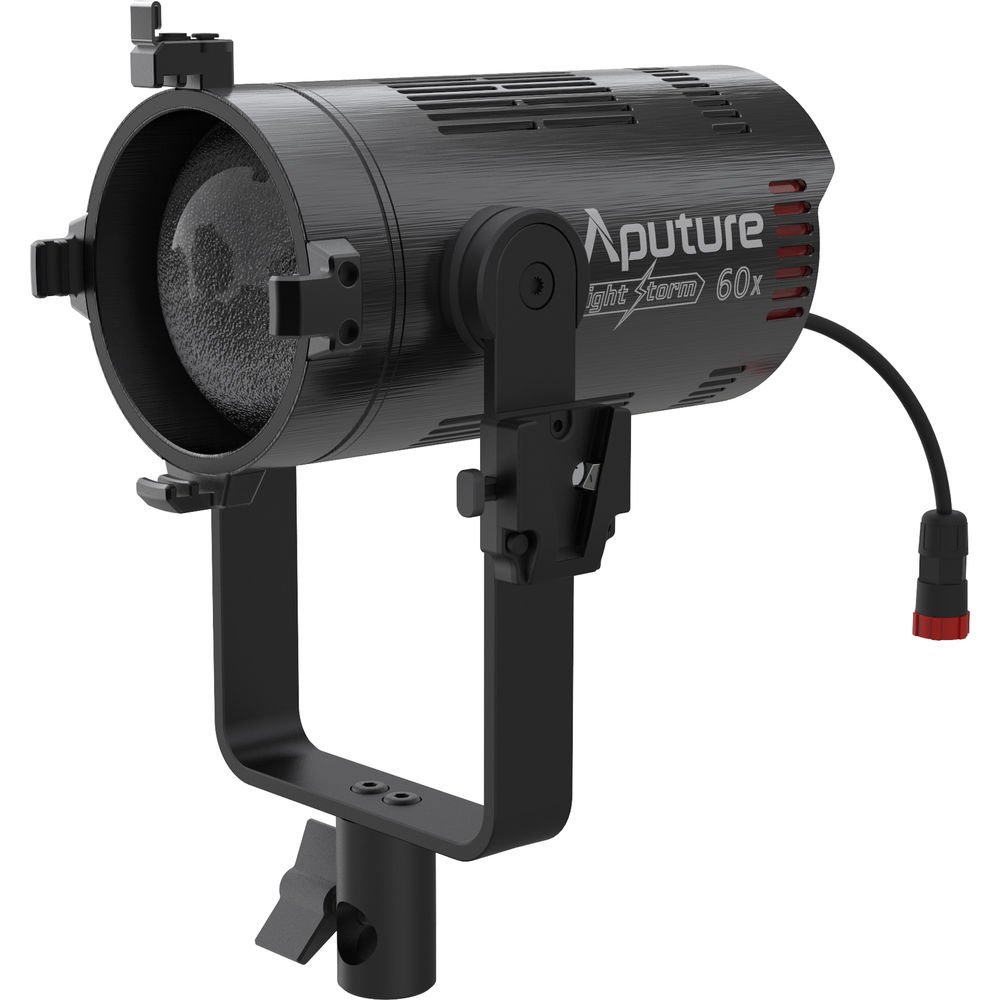

Aputure LS 60X Bi-Color Focusing LED
UPC/EAN #6971842181247
MPN #APA0183A20
60W Bi-color adjustable focusing light with 15 to 45 adjustable beam angle, active cooling, weather-resistant design, 9 preset special effects and onboard & app Control
FOCUS FORWARD
The LS 60x is a battery-powerable bi-color focusing LED that uses custom aspherical optics to achieve a 15-45 spot-flood beam angle with intense output and flexibility.
ENHANCED OUTPUT
The LS 60x punches way above its weight class as a 60W Expanded Bi-Color Focusing LED fixture that outclasses the output of a 300W tungsten Fresnel and outpaces comparable LED lights. With its custom, Aputure aspherical optics, the LS 60x (@ 5600K) can output 30,000+ lux in full spot, or 5,200+ lux in flood mode.
EXPANDED BI-COLOR
Matching the LS 300x, the LS 60x features an expanded bi-color CCT range of 2700K-6500K, with built-in CCT presets, to give filmmakers the ability to add just a touch of warmer or cooler colors to their scene.
RELIABLE COLOR
The LS 60x Bi-color LED continues Aputure's ambition to provide high-quality, color-accurate LEDs to all filmmakers, with CRI/TLCI scores of 95+, and SSI (Tungsten) of 86, and an SSI (D56) of 74.
WEATHER-RESISTANT DURABILITY
Designed to withstand the rigors of any film set, the LS 60x lamp head &DC power connector feature a weather-resistant design as a sign of its durability, so filmmakers can feel free to take it on any adventure.
POWER SOLUTIONS
With a variety of included power solutions, the LS 60x is a light designed to solve problems in ways no other fixture can. The modular V-Mount Receiver on its yoke can hold all of its power options, including the AC adapter, D-Tap (V-Mount) Batteries, and the intelligent Dual NP-F Battery Plate.
FLEXIBLE OUTPUT
Light Storm fixtures like the 120d II, 300d II, and 300x can be powered using only a single battery, and the LS 60x is no different. The LS 60x can achieve full output with a single D-Tap battery or two NP-F batteries, or half output with a single NP-F battery, using its intelligent Dual NP-F Battery Plate.
8-LEAF BARNDOORS
Included with the LS 60x, the 8-Leaf Barndoors allow for more precise control than traditional barndoors due to the two pairs of helper flags that can adapt the light output's size and shape.
BOWENS MOUNT ADAPTABILITY
As a Light Storm fixture, the LS 60x can utilize a wide variety of lighting modifiers. In addition to its 8-Leaf Barndoors, 60x includes a custom Bowens Mount Adapter that attaches to its accessory mount and allows it to use Bowens Mount soft light modifiers.
LIGHT SHAPING TOOLS

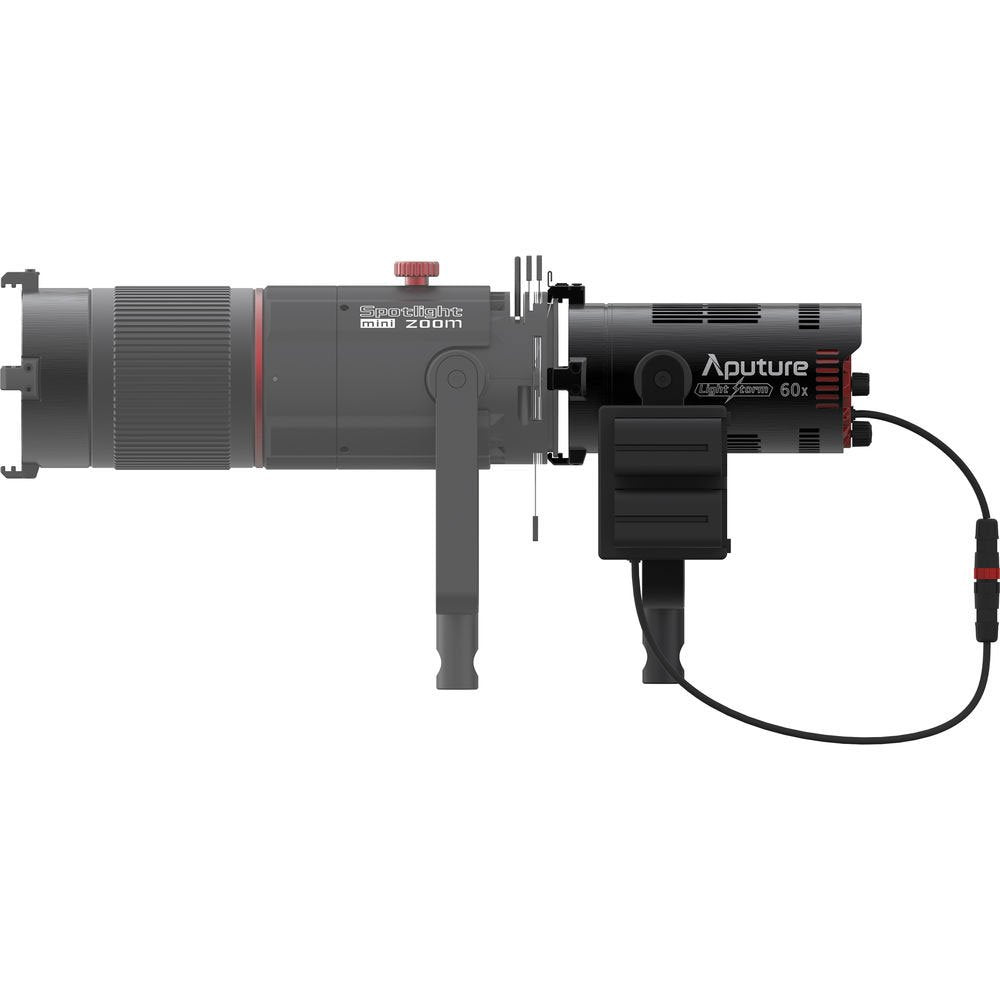

The LS 60x is also compatible with the LS 60 Softbox, a square soft light modifier, and the Spotlight Mini Zoom, a precision protection attachment with a 2X optical zoom range, both of which are designed specifically for the LS 60d & 60x.
BUILT-IN LIGHTING FX
The 60x launches with 9 built-in lighting FX, such as Paparazzi, Fireworks, Lightning, Faulty Bulb, TV, Pulsing, Strobe, Explosion, and Fire, with adjustable color temperature control.
SIDUS APP CONTROL
Joining the Sidus Link ecosystem, the LS 60x gains unprecedented, quick & easy wireless control for any fixture in its class. As part of a mesh network, the LS 60x conducts two-way communication with the controlling smartphone or tablet and all other Sidus Mesh fixtures, resulting in a more robust network and longer range.
Features
Output: 33,480 Lux at 3.3' (15, 5600K)2700-6500K CCT15 to 45 Adjustable Beam AngleAC or Battery PowerOnboard & App ControlCRI 96 | TLCI 98 | CQS 95 | SSI 74Active Cooling, Weather-Resistant Design9 Preset Special EffectsIncludes Bowens Adapter, Barndoors & Bag
Specifications
CCT: 2700K~6500KCRI: ?96TLCI: ?98CQS: 95 (ave.)SSI (D56): 74SSI (Tungsten): 86Beam Angle: 15~45Output Wattage: 60WMax Power Draw: 90WOperating Current: <6.5A (Max)Operating Voltage (Power Supply): 19VOperating Voltage (Battery) Sony NP-F: 6~8.4V (Single battery) 12~16.8V (Dual battery)Operating Voltage (Battery) D-Tap: 12 ~ 16.8VOperating Temperature: -20C ~ 45C / -4F ~ 113FControl Methods: On-board, Sidus Link (Sidus Mesh)Wireless Operating Range (Bluetooth): ? 80m / 262.5ftScreen Type: OLEDWeatherproofing: YesCooling Method: Active CoolingCable Type: Head Cable: 4-pin DC Twist Lock CableCable Type: Power Cable: Locking IEC Power Cable (4m)Accessory Mount: LS 60 Mini MountAccessory Mount Diameter: 120mm / 4.72inMounting: 16mm | 5/8in (Baby Pin)
Photometrics
15 at 3200K: 2799 fc / 30,132 Lux at 3.3' / 1 m, 352 fc / 3794 Lux at 9.8' / 3 m15 at 5600K: 3110 fc / 33,480 Lux at 3.3' / 1 m, 393 fc / 4241 Lux at 9.8' / 3 m45 at 3200K: 497 fc / 5357 Lux at 3.3' / 1 m, 60 fc / 647 Lux at 9.8' / 3 m45 at 5600K: 539 fc / 5803 Lux at 3.3' / 1 m, 65 fc / 703 Lux at 9.8' / 3 m
DIMENSIONS
Dimensions: Lamp Head without Yoke: 209*116mm / 8.23*4.57inDimensions: Lamp Head with Yoke: 280*156*127mm / 11.02*6.14*5inDimensions: Barn Doors Closed: 134*108*33mm / 5.28*4.25*1inDimensions: Power Supply: 135*56*34mm / 5.31*2.2*1inDimensions: NP-F Battery Plate: 103*87*25mm / 4.06*3.43*1inDimensions: Case: 420*200*200mm / 16.54*7.87*8in
WEIGHT
Weight: Lamp Head: 1.8kg / 3.968lbsWeight: Barn Doors: 222g / 0.489lbsWeight: Power Supply: 370g / 0.816lbsWeight: NP-F Battery Plate: 134g / 0.295lbsWeight: Total w/ Case: 4.475kg / 9.866lbs
