Appsys ProAudio Flexiverter AES50
MPN #FLX-AES50
Appsys FLX-AES50 Flexiverter: 96x96-channel AES50 format converter for high-capacity, low-latency digital audio integration in professional setups.

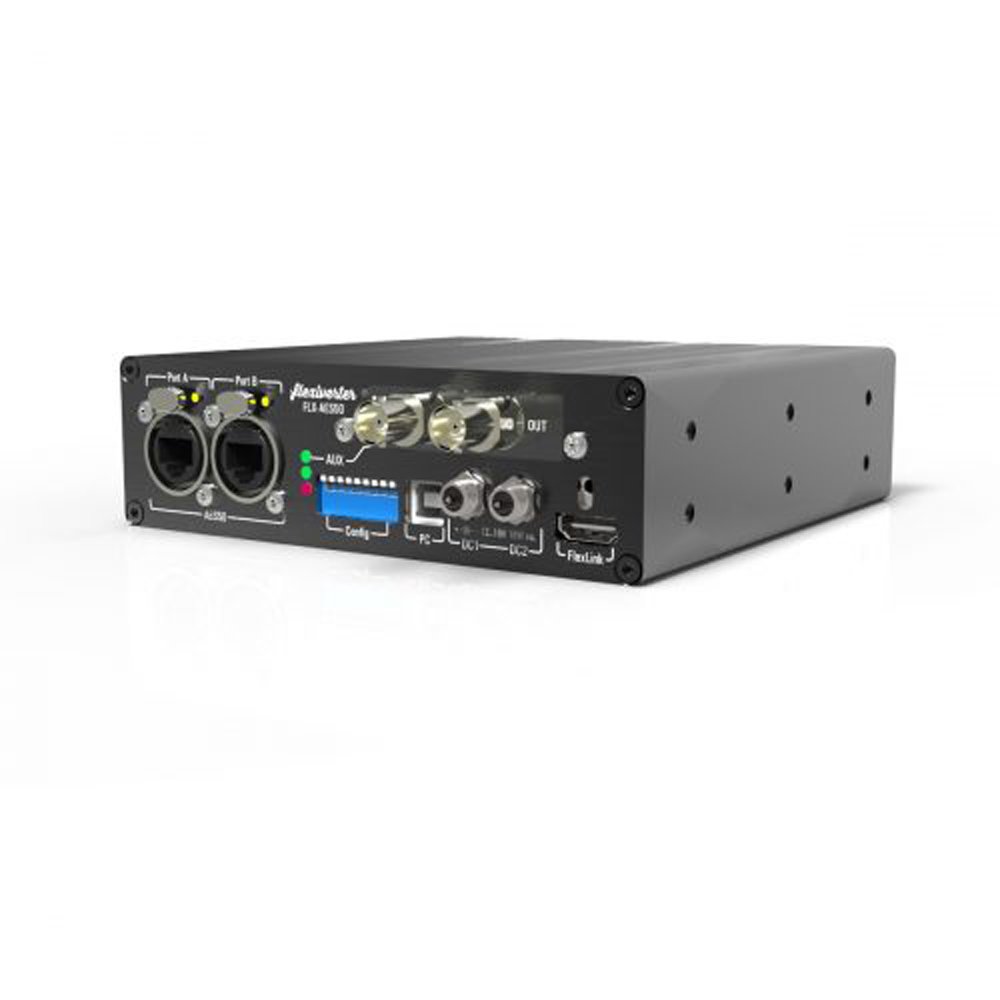

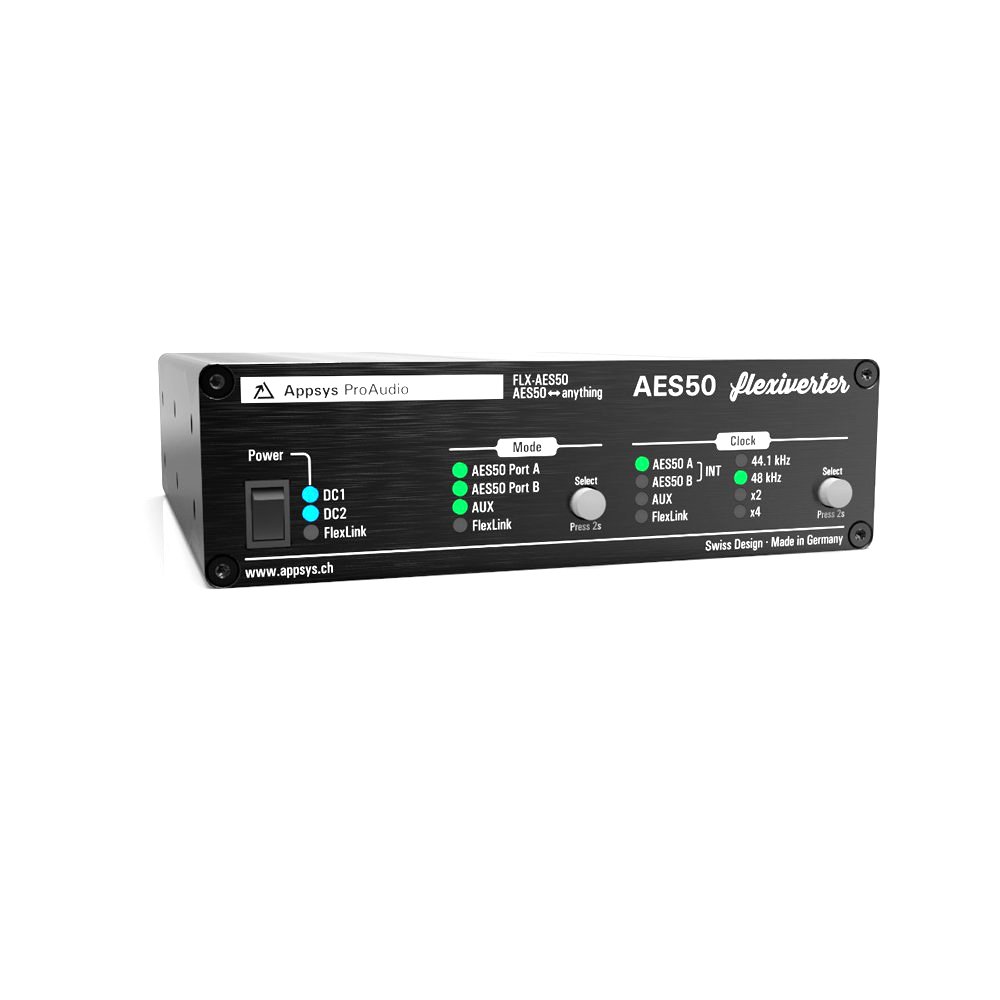

The Appsys Flexiverter FLX-AES50 is a compact and versatile format converter designed to facilitate seamless integration between AES50 digital audio streams and various other audio protocols. It features two AES50 ports, each capable of handling up to 96 input and 96 output channels at 48 kHz, or 48 input and 48 output channels at 96 kHz, ensuring compatibility with a wide range of professional audio equipment.
A key feature of the FLX-AES50 is its AUX port, which accepts optional AUX cards, enabling conversion to and from different audio formats such as Dante, MADI, or ADAT. This modular approach allows users to tailor the device to specific requirements, enhancing flexibility in diverse audio setups.
Features
96x96 Channel Format Conversion: Converts up to 96 bidirectional channels of AES50 audio for seamless system integration.High-Performance Audio: Maintains pristine digital audio quality with ultra-low latency for professional-grade applications.Bi-Directional Audio Flow: Supports simultaneous audio input and output for versatile routing configurations.Compact and Portable Design: Lightweight and durable, ideal for studio, live sound, and broadcast environments.Plug-and-Play Setup: Simple installation with no drivers or complex setup required.Flexible Integration: Works flawlessly with AES50-compatible devices, such as mixing consoles and stage boxes.
Specifications
AES50 Ports: Two ports supporting up to 96 input and 96 output channels at 48 kHz; 48 input and 48 output channels at 96 kHz.AUX Port: Accepts optional AUX cards for conversion to and from additional digital audio protocols such as Dante, MADI, ADAT, and more.FlexLink Port: Enables low-latency, bidirectional transfer of up to 192 audio channels, along with clock and power, facilitating expansion with other Flexiverter units or the MVR-64 Multiverter.Sample Rates Supported: 44.1 kHz, 48 kHz, 88.2 kHz, and 96 kHz.Remote Control: Accessible via USB for web-based remote control (no additional software required) or UART command line interface.Power Supply: Triple-redundant system with dual DC inputs and power over FlexLink for enhanced reliability.Dimensions: 152 mm (W) x 44 mm (H) x 153 mm (D) (excluding connectors/buttons); 152 mm (W) x 44 mm (H) x 169 mm (D) (including device-side connectors/buttons).Weight: Approximately 560 grams.
