Appsys ProAudio Flexiverter AES3/SRC
MPN #FLX-AES3/SRC

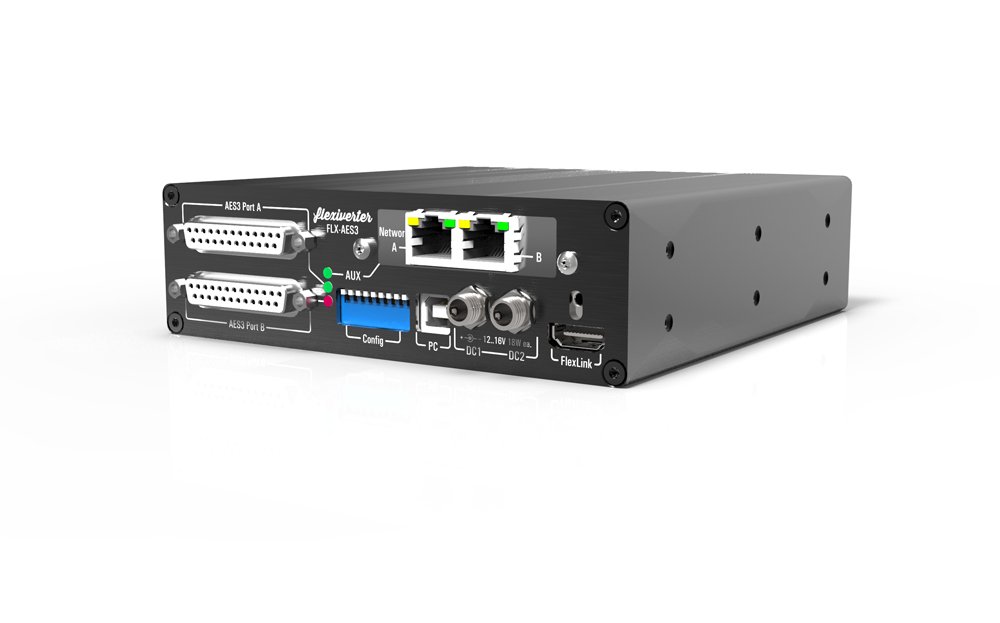

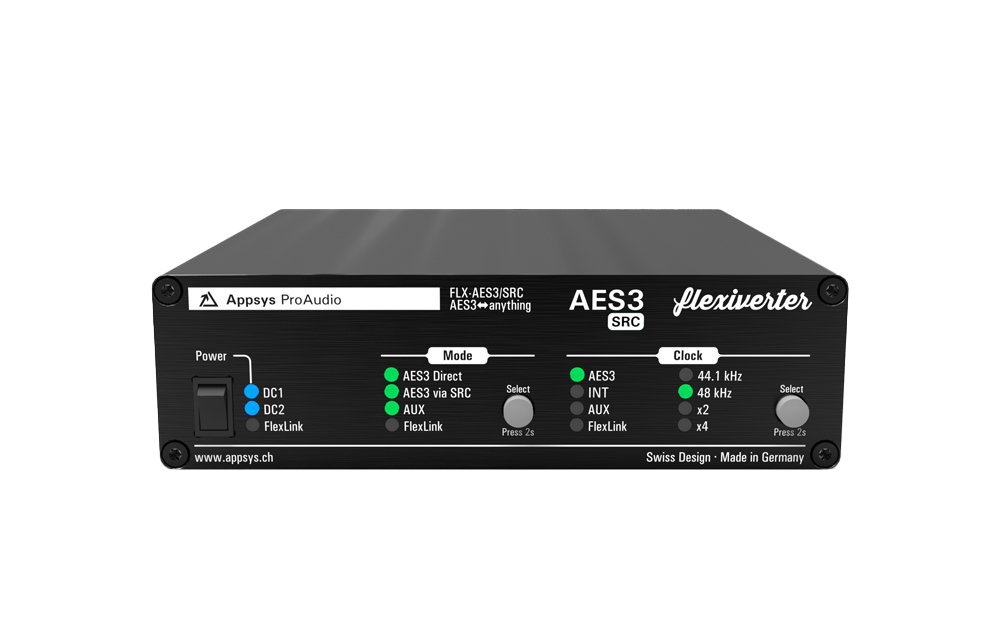

Appsys FLX-AES3/SRC Flexiverter: Compact AES3-to-anything converter with built-in sample rate converters, enabling seamless multi-format audio integration.
The Appsys Flexiverter FLX-AES3/SRC is a compact and versatile converter designed to facilitate seamless integration between AES3 (AES/EBU) digital audio signals and various other audio protocols. It features 16 input and 16 output channels of fully transformer-isolated AES3, ensuring high-quality signal transmission. A notable feature is the inclusion of eight individual high-end sample rate converters (SRCs), each offering over 120 dB THD+N and more than 134 dB dynamic range. These SRCs allow for the conversion of streams with different clocks to a common house clock, effectively managing up to eight distinct input clock domains.
The FLX-AES3/SRC is equipped with an AUX port that accepts various AUX cards, enabling conversion to and from different audio formats such as Dante, MADI, or ADAT. This modular design provides flexibility to tailor the device to specific requirements, enhancing adaptability in diverse audio setups. It supports arbitrary sample rates ranging from 44.1 kHz to 192 kHz, accommodating various professional audio standards. Additionally, the device offers selectable DB25 connector pinouts (Tascam or Yamaha) via internal jumpers, ensuring compatibility with different equipment configurations.
Features
16x16 Channel Format Conversion: Converts up to 16 channels of AES/EBU audio between compatible digital formats.Flexible Audio Routing: Supports bi-directional audio flow for seamless integration across different systems.High-Quality Audio: Delivers pristine digital sound with minimal latency and no signal degradation.Compact Design: Lightweight and portable, ideal for use in studios, live events, and broadcast setups.Plug-and-Play Operation: Easy setup with no additional drivers or complex configuration needed.Versatile Connectivity: Works seamlessly with AES3-compatible devices for expanded audio system functionality.
Specifications
Channels: 16 AES3 (AES/EBU) input and 16 output channelsConnectivity: DB25 connectors for AES3 I/O, transformer-isolatedPinout Options: Selectable DB25 pinouts for Tascam or Yamaha standards via internal jumpersSample Rates: Supports 44.1 kHz, 48 kHz, 96 kHz, and 192 kHzAUX Port: Expandable via optional AUX cards for other formats like Dante, MADI, or ADATFlexLink Port: Provides low-latency bidirectional transfer for integration with other Flexiverter units or the MVR-64 MultiverterClocking: Internal clock or external clock synchronization supportedPower Supply: Triple-redundant inputs with two DC connections and power over FlexLinkControl: Configurable using a web-based interface accessible over Ethernet or USBDimensions: Compact design suitable for professional installationsApplications: Ideal for digital audio routing, system integration, and format conversion
