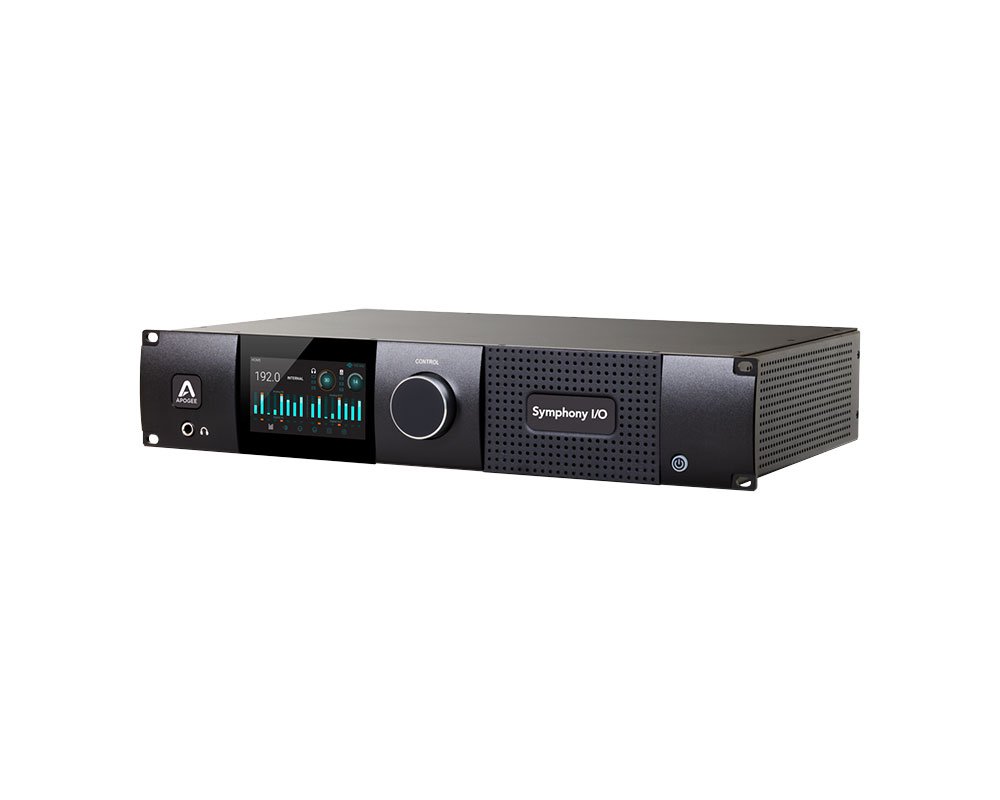

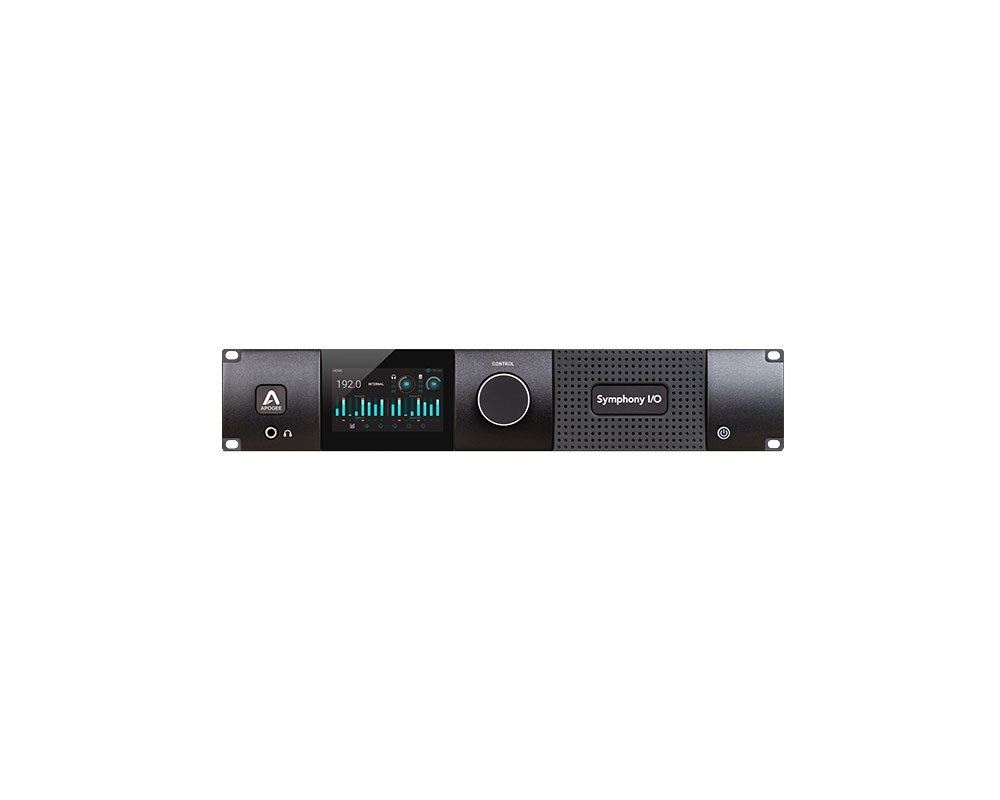

Apogee Symphony I/O MkII 8X8MP-16X16SE
UPC/EAN #805676303055
MPN #SYM2-8X8MP-16X16SE
8 mic/line, 16 line in, 24 line out, AES/optical/SPDIF coax, flagship AD/DA, touchscreen display, modular I/O, Thunderbolt, immersive audio ready
The Symphony I/O MkII 8X8MP-16X16SE is a powerhouse audio interface designed for studios that demand exceptional audio fidelity, expanded I/O capabilities, and robust configurability. This model combines Apogee's premier 8-8 MP module-equipped with 8 transparent mic/line preamps-with the high-density 16-16 Special Edition module, delivering an impressive total of 24 analog outputs and 16 analog line-level inputs. It's a configuration built for professionals managing complex tracking, mixing, and surround sound sessions, including immersive formats like Dolby Atmos.
At its core, the Symphony MkII boasts ultra-low latency performance, intuitive touchscreen navigation, and Apogee's renowned AD/DA conversion-ensuring the cleanest, most dynamic audio capture and playback. The inclusion of AES, ADAT, optical, and coaxial digital formats supports flexible integration into any digital studio workflow. With support for Thunderbolt, Pro Tools HD (plus Dante), and Waves SoundGrid connectivity, this interface offers unmatched versatility, making it ideal for commercial studios, post-production facilities, and high-end music production environments.
Features
Includes 8 mic/line combo inputs with premium built-in mic preamps.Adds 16 balanced line inputs and 24 balanced line outputs for large-scale routing.Equipped with AES, optical, and coaxial SPDIF digital I/O for broad compatibility.Offers top-tier AD/DA conversion for pristine professional audio.Modular design supports expansion up to 32 analog I/O channels.Touchscreen interface for intuitive control and real-time monitoring.Ideal for immersive audio production with up to 32 speaker outputs.Ultra-low latency with options for Thunderbolt, Pro Tools + Dante, or SoundGrid.Built in the USA for durability and studio-grade performance.
Specifications
General Specifications:
Product: Apogee Symphony Mk IIModel: Symphony I/O MkII 8X8MP-16X16SEConfiguration: 8 Mic/Line Inputs, 16 Line Inputs, 24 Line Outputs, AES Optical S PDIF Coaxial I ODisplay: Intuitive touchscreen controlModularity: Up to 32 channels of modular analog I OPower: 90 to 240 VAC, 50 to 60 Hz, 150 WBuild: Designed and built in the USA
Analog to Digital Conversion:
THD plus N: minus 115 dB at 22 dBu unweightedDynamic Range: 122 dB A weightedMax Input Levels: plus 24 dBu at plus 4 dB setting, plus 6 dBV at minus 10 dB settingFrequency Response: 44.1 kHz to 20 kHz plus minus 0.05 dBInput Impedance: 10 kilo Ohm
Digital to Analog Conversion:
THD plus N: minus 119 dB at 21 dBu unweightedDynamic Range: 126 dB A weightedMax Output Levels: infinity to plus 24 dBuFrequency Response: DC to 20 kHz plus minus 0.05 dBOutput Impedance: 50 OhmOutput Design: Apogee Perfect Symmetry Circuitry
Headphone Output:
Connector: 1 stereo quarter inch on front panelTHD plus N: minus 110 dB at 19 dBu into 600 Ohm, minus 101 dB at 14 dBu into 32 OhmDynamic Range: 121 dB A weightedOutput Design: Apogee Constant Current Drive
I O Configuration:

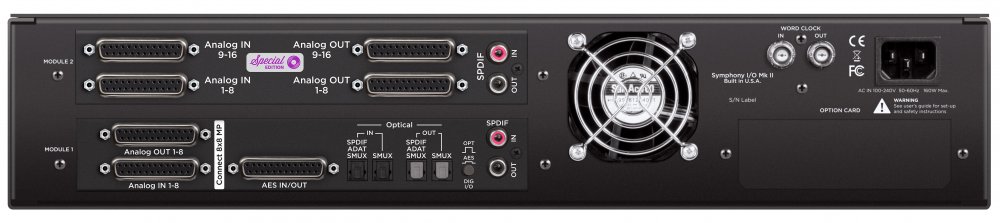

Mic Line Inputs: 8 digitally controlled microphone preampsLine Inputs: 16 balanced inputsLine Outputs: 24 balanced outputsDigital I O: AES Optical S PDIF Coaxial multi format digital connectivity
Connectivity Options:
ThunderboltPro Tools Plus Dante and Pro ToolsWaves SoundGrid
Monitor Control and Immersive Audio:
Monitor Workflows: Up to 32 speaker outputsImmersive Audio Support: Dolby Atmos and Sony 360 Reality Audio
Operating System Compatibility:
Thunderbolt: Mac OS 10.10 and abovePro Tools HD HDX: Mac or PC with Pro Tools HD 9 or greaterDante: PC compatible
