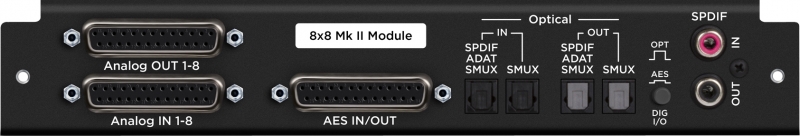

Second generation of the Apogee Symphony I/O 8x8 Analog modules. 8 Analog Ins, 8 Analog Outs and 8 AES I/O.

INPUTS
Analog IN: 8 balanced inputs on 1 DSUB 25-pin connector
AES-EBU IN: 8 inputs on 1 DSUB 25-pin connector (192k single wide compatible)
Optical IN: Supports ADAT, SMUX & S/PDIF

ADAT: 8 channels 44.1-48 kHz

SMUX: 8 channels 88.2-96 kHz

S/PDIF: 2 channels, up to 96 kHz

Coax IN: 2 channels of S/PDIF, up to 192 kHz

OUTPUTS
Analog OUT: 8 balanced outputs on 1 DSUB 25-pin connector
AES-EBU OUT: 8 outputs on 1 DSUB 25-pin connector (192k single wide compatible)
Optical OUT: Supports ADAT, SMUX & S/PDIF

ADAT: 8 channels 44.1-48 kHz

SMUX: 8 channels 88.2-96 kHz

S/PDIF: 2 channels, up to 96 kHz

Coax OUT: 2 channels of S/PDIF, up to 192 kHz

Information

Second generation of the Apogee Symphony I/O 8x8 Analog modules. 8 Analog Ins, 8 Analog Outs and 8 AES I/O.
