API  |  SKU: 18148

Select SR22

Dual Compressors

Dual channel compressor with patented THRUST circuit and variable Threshold, Ratio, and Make-up gain controls

$1,725.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

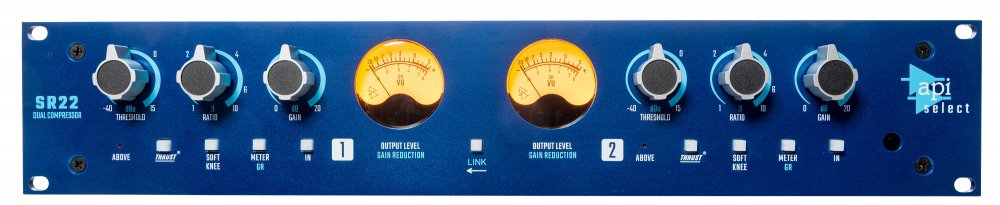

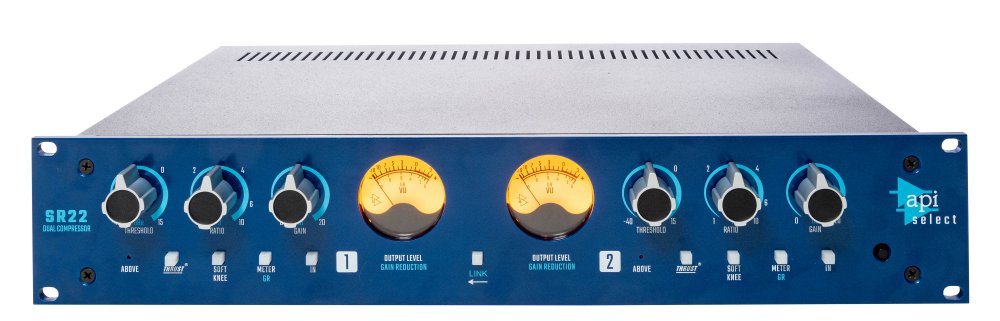

The SR22 Dual Channel Compressor features two channels of API's patented award-winning VCE compressor circuit in a rackmount unit with internal power supply. This same compressor circuit was originally designed into the legendary ATI Paragon analog live mixing console. Each channel includes the patented THRUST circuit, which protects the sensitive high frequency content of the audio signal, even under the most vigorous of compression ratios. The perfect companion to the new SR24 Dual Channel EQ, the SR22 provides comprehensive, easy-to-use control along with classic analog VU meters for monitoring output and gain reduction. The two channels can also be linked for use as a stereo compressor with true RMS power summing of the left and right signals.

Features

Patented THRUST circuit

Variable Threshold, Ratio, and Make-up gain controls

Classic analog VU meters

Switchable metering of output level and gain reduction

Peak threshold LED indication

Switchable Hard of Soft Knee compression

Linkable for stereo operation with true RMS power summing

Fully balanced XLR and ¼" inputs and outputs

Specifications

Inputs: Balanced XLR (pin 2 hot) and 1/4" jack (wired tip hot) (1/4" normalled priority)
Outputs: Balanced XLR (pin 2 hot) and 1/4" (wired tip hot) parallel jacks
Input Impedance: 15k Ohms Balanced
Bandwidth: +/- 0.5dB, 20Hz - 50kHz
THD+N @ 1kHz, +4dBu: <0.005%
Maximum Level: +19dBu
Signal-to-Noise Ratio: -88dBu (comp in), -92dBu (bypass), -106dB
Crosstalk: <84dB @ 20kHz
Stereo Link: True RMS Power Summing
Meter: -20 to +3 VU Output Level, 0 to -15 dB Gain Reduction, switchable
Compressor Controls:

Threshold Range: -40dBu to +15dBu

Ratio Range: 1:1 to 10:1

Makeup Gain Range:

- 0dB to +20dB

- Hard or Soft Knee switchable

- Flat or Thrust side chain filter switchable

Attack Time: Program and Control Adaptive, 10mSec to 40mSec

Release Time: Program and Control Adaptive, 30mSec to 400mSec

Power Consumption: 12W
Dimensions:: 2U EIA 19" Rack
Size: 19" x 3.5" x 10" Deep
Weight: 12 lbs.
