MPN #3122V

$2449.00

Save 22.1%, MSRP $3144.00
Financing available
Free shipping in Canada. Conditions

2 Channel Mic/Line Pre with variable output and high-pass filter

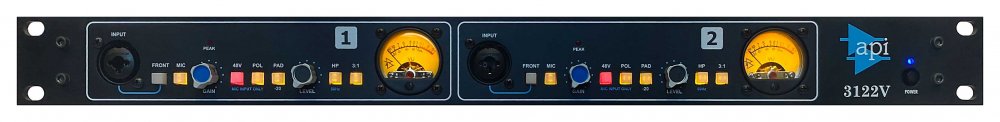

The 3122V provides 2 channels of API's signature analog sound and features the same legendary circuit design found in the 3124V and 3124MV, as well as the 312, 512V, and 512c mic preamps. In addition to the familiar combination of 2520 Op Amps and proprietary output transformers that give all API mic preamps that punch and massive headroom, the 3122V also includes front and rear panel XLR and ΒΌ" inputs (conveniently selectable on the faceplate), a fixed-frequency HP filter, GAIN and the popular Variable Output Level control, as well as 48V, POL, and PAD. Rounding out the expansive feature set are the 3:1 Output Transformer Tap and 2 stunning analog VU meters with a separate peak LED.
  • 2 Channels of Classic API Circuit Design
  • API 2520 and Output Transformer
  • Proprietary AP2516 Input Transformer
  • Variable Output Control
  • Fixed Frequency High Pass filter
  • Vintage Style Analog VU Meters
  • 3:1 Output Transformer Tap Selection
  • Two Selectable front or rear female XLR Mic Input
  • Front panel 1/4" Hi Z Instrument Input
  • Front panel mic/instrument selection switch
  • Front panel polarity switch
  • Front panel 40V power switch
  • Front panel -20dB pad switch
  • Peak LED
  • Maximum 68dB of gain
  • Input Impedance:
  • Mic: 1500 Ohms
  • Hi-Z: 470 kOhms unbalanced
  • Output Impedance: Less than 75 Ohms, transformer balanced
    Nominal Levels: XLR channel output: +4 dBu
    Frequency Response: +/- 0.5 dB, 20 Hz to 40 kHz
    SNR:
  • Mic: -128 dB
  • Hi-Z actual: -106 dB
  • Gain Range:
  • Mic input: 14 dB min., 68 dB max (inc. pad)
  • Hi-Z: -6 dB min., 48 dB max (inc. pad)
  • Metering:
  • VU calibrated for XLR output, 0VU = +4 dBu
  • PEAK LED calibrated to +18 dBu at 312 amp output
  • Connections:
  • Front: two female mic input XLRs, two Hi-Z instrument inputs

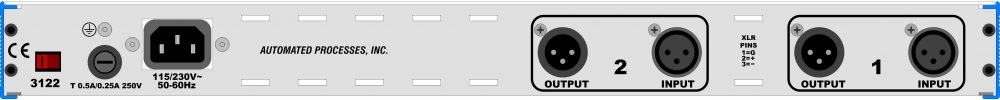

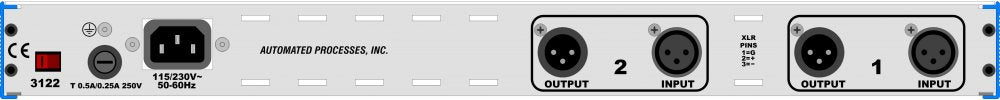

  • Rear: two female mic input XLRs, two male line output XLRs
  • Power Consumption, Quiescent: 8 Watts
    Size: 19" X 1.75" (1U) X 11" Deep
    Size (Boxed for Shipping): 23.25" X 6.5" X 16.5"
    Actual Weight: 9 lbs.
    Shipping Weight: 13 lbs.
