API 1608-II

MPN #1608-II 16 channel manual

$73195.00

Financing available

Be the first to write a review

Free shipping in Canada. Conditions

16-channel analog console loaded with 16x 548c inputs with Mic/Line and direct output, 12x 550A EQs, and 4x 560 EQs

Following the introduction of the 1608 in 2008, API delivered over 600 consoles and expanders to discerning audio professionals throughout the world. New for 2018 and based on the incredible success of the original, API proudly announces the 1608-II. Equipped with an updated feature set and debuting API's new cross-platform Final TouchTM automation system, the 1608-II continues API's rich legacy of crafting the world's highest-quality analog recording consoles. Adding valuable features for today's Engineers, Producers and Musicians, the 1608-II provides the powerful reliability and the incredible API sound that has characterized API products for nearly 50 years.

Optional Final TouchTM Motorized Fader Automation System (Not included)
Derived from API's Vision Automation System used extensively in the Vision, Legacy Plus and AXS consoles, API now offers optional Final Touch fader automation for the 1608-II console. Final Touch automation combines system reliability, user flexibility and operational simplicity and offers a host of features found only in the most expensive and sophisticated console automation systems typically costing many times more. Consoles can be factory-fitted with Final Touch automation prior to delivery, and existing 1608-II consoles can be retrofitted with Final Touch automation.

Features

16 Channels of Input

Each channel equipped with Mic Pre and Equalizer

Accepts API 500 Series Equalizers

8 Multitrack Buses

8 Auxiliary Buses

1 Stereo Bus

4 Stereo Returns, 100mm faders (manual or automated) with Multitrack and Stereo Bus assign

Full Center Section Control

Surround 5.1 Center Section Monitoring

Classic Analog Metering

Global 0dB Fader Bypass

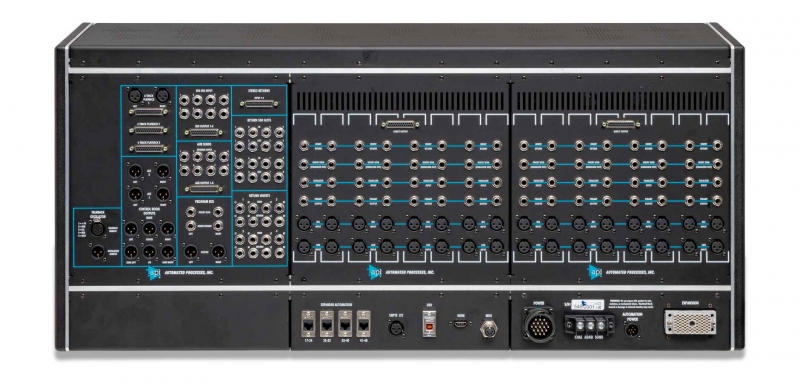

Comprehensive Rear Panel IO Connectivity

Final Touch Automation Features (Optional - Not Included)

Reliable, self-contained system requiring no external computer

Individual Switch Control on each fader

Global Control Panel in the console Center Section

Hi Resolution 7.5" Touch Screen Control

Files are easily saved to standard memory cards

Automated Mute and Insert switches on each channel

Unlimited Fader Groups with 2 dedicated Group Master Faders

Motorized Stereo Program Fader

4 Motorized Stereo Returns

DAW Control with unity gain audio bypass

Unlimited Mix Restore points

Comprehensive Operations Manual

Specifications

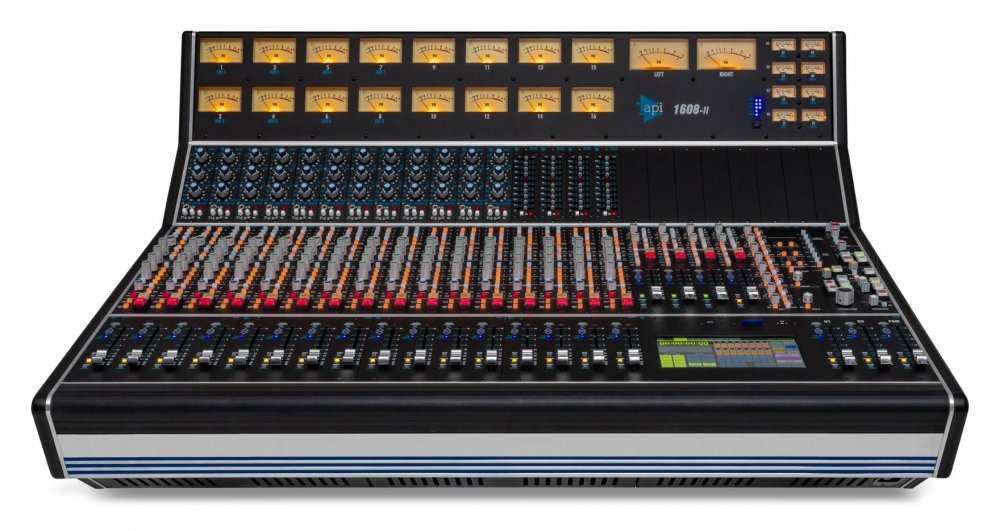

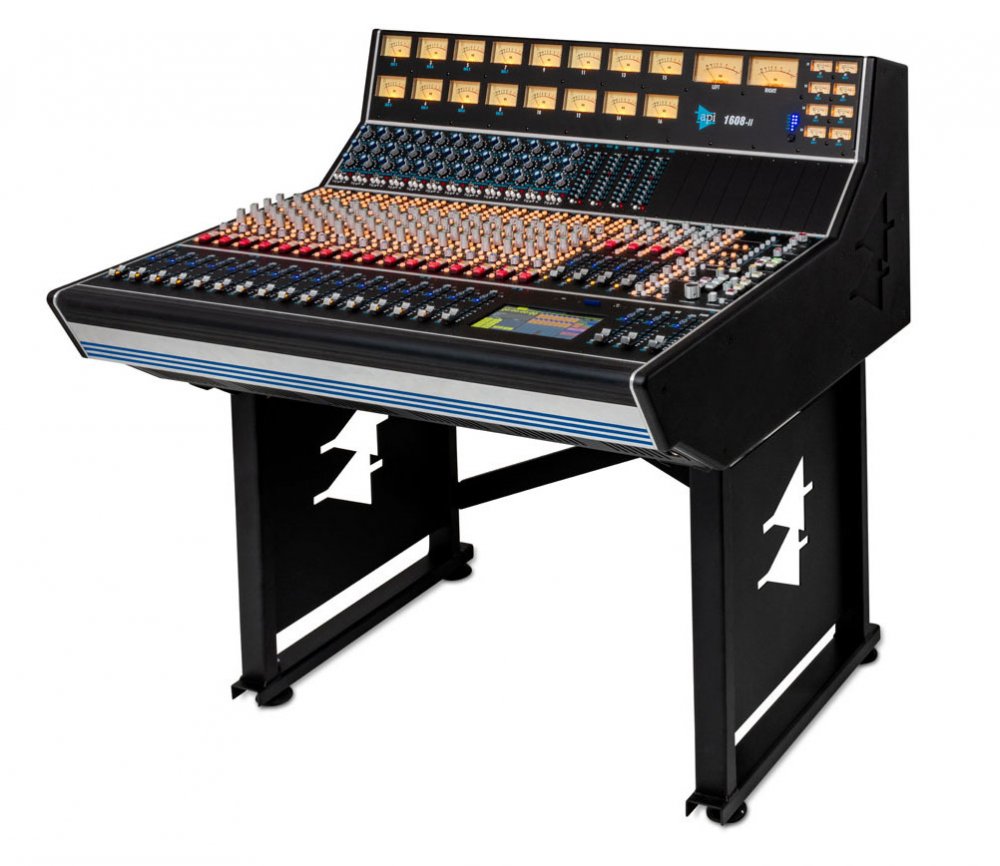

Please Note: pictured with optional FinalTouch Motorized Automation System
