UPC/EAN #853744004281     MPN #PURE2

$3375.00

Financing available
Free shipping in Canada. Conditions

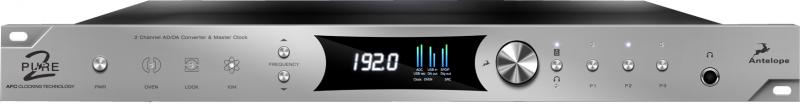

The Pure2 is a high-end Mastering AD/DA Converter, powered by Antelope Audio's legendary clocking and pristine analog circuitry



Pure2 is a mastering-grade 24-bit, 192 kHz AD/DA 2-channel converter and master clock that includes a relay-controlled volume attenuator. It features Antelope Audio's world-renowned Acoustically Focused Clocking (AFC) technology, and also utilizes pristine analog circuitry, driven by a proprietary multi-stage linear power supply for unsurpassed digital clarity and analog realism.

LEXIBLE CONTROL
Access all Pure2 features via Mac & PC app or through the front-panel controls
All Pure2 features are available in an intuitive software control panel for Mac or Windows provides users the ability to manage all facets of the device operation. Pure2 is also configurable via the front panel with user-definable presets.

EASY LIFE
We know the engineer's life
Fis not a glamorous one. So we tried to make it easier.
You can set up Pure2 in a couple of minutes. All you actually need is one USB cable (provided in the box) and a laptop of your choosing (Win 7.1 or higher / Mac OSx 10.9 or higher) and you can start capturing stereo audio at 192 kHz.
After setting it up, just download the Control Panel, a few clicks and you're set.
  • A/D converter with optimized overload handling
  • D/A converter with dual-DAC architecture
  • High-end headphone amp with dedicated D/A converter
  • Relay-based analog volume control for accurate monitoring
  • Master clock with 4th-generation Antelope AFC jitter management
  • Connections for S/PDIF, TOSlink, AES, and USB
  • Intuitive software control panel for Mac/Windows

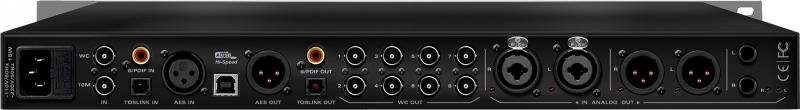

  • Inputs
  • 1x World Clock
  • 1x 10 MHz Atomic Reference
  • 1x SPDIF
  • 1x TOSLINK
  • 1x AES
  • USB 2.0 on Type B
  • 1x Analog (ADC) on Combo XLR
  • * Factory preset to accept 22dBu, trim to accept 8dBu to 24dBu

    Outputs
  • 1x USB 2.0 on Type B
  • 1x AES
  • 1x SPDIF
  • 1x TOSLINK
  • 8 x World Clock
  • 1x Main Analog (DAC 1) on XLR
  • 1x Monitor Analog (DAC 2) on 1/4" TRS
  • 1x Headphones(DAC 3)on 1/4" TRS

  • Operating Temperature
  • 0-45ºC/32-113ºF

  • Weight (approx. prior)
  • ~3kg/ 6,5lb approx.

  • Dimensions (approx.)
  • Width: 482 mm/19" /Rack/
  • Height: 44 mm/1U/
  • Depth: 350 mm

  • Power Supply
  • Nominal 100-120 / 220-240 VAC, 50 or 60 Hz
  • Actual 95-264 VAC, 50 or 60 Hz

  • SYSTEM REQUIREMENTS
    Windows
  • OS: Windows 7/8/8.1/10
  • Disk Space: Minimum 512 MB available disk space
  • USB: 1x USB 2.0 Port
  • Required USB bandwidth: 80%-90%
  • CPU: Intel or AMD equivalent CPU with at least 2GHz operating frequency
  • Memory (RAM): 4GB Minimum (8GB or more Recommended)

  • MAC
  • OS X: 10.9/10.10/10.11/10.12 (Sierra Recommended)
  • Disk Space: Minimum 512 MB available disk space
  • USB: 1x USB 2.0/3.0 Port
  • Required USB bandwidth: 80%-90%
  • Memory(RAM): 4GB Minimum (8GB or more recommended)
  • CPU: Intel Core 2 Duo (Minimum) Intel Core i3 ? or higher (Recommended)
  • Additional Info: Internet connection required for product activation.
