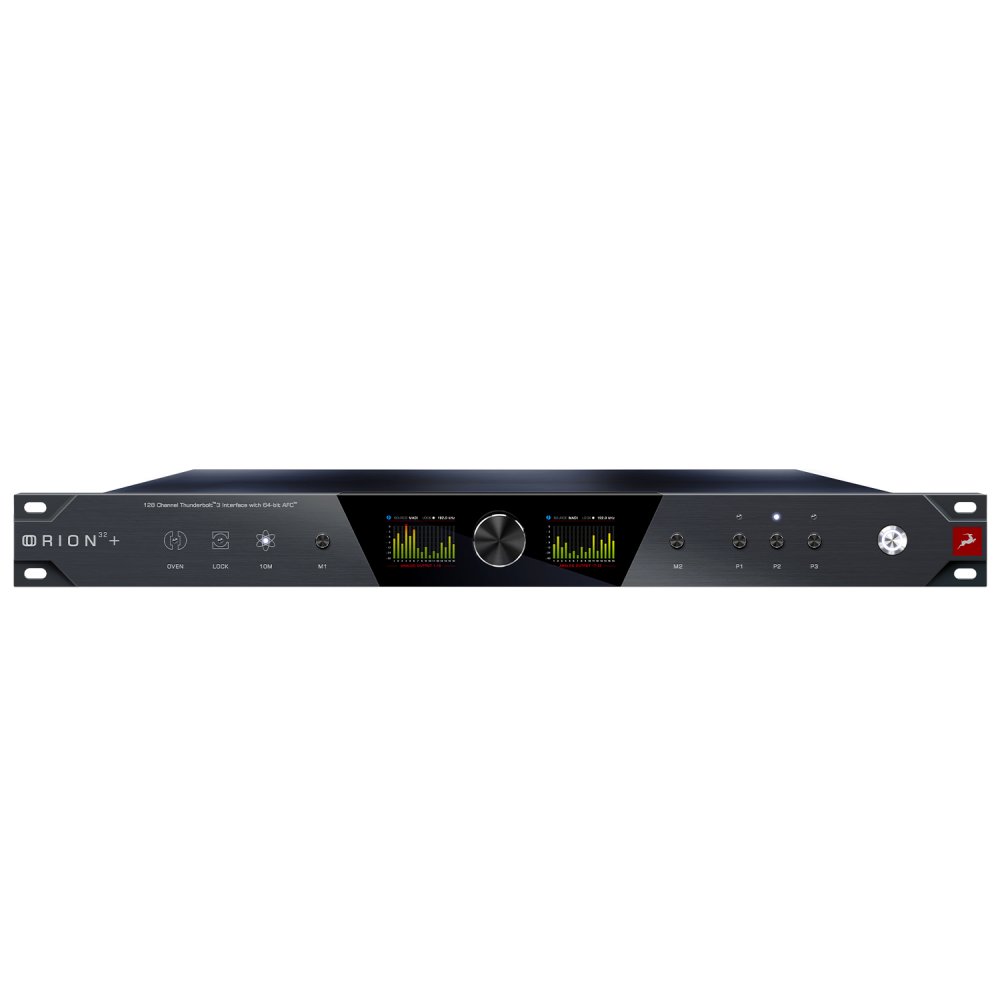

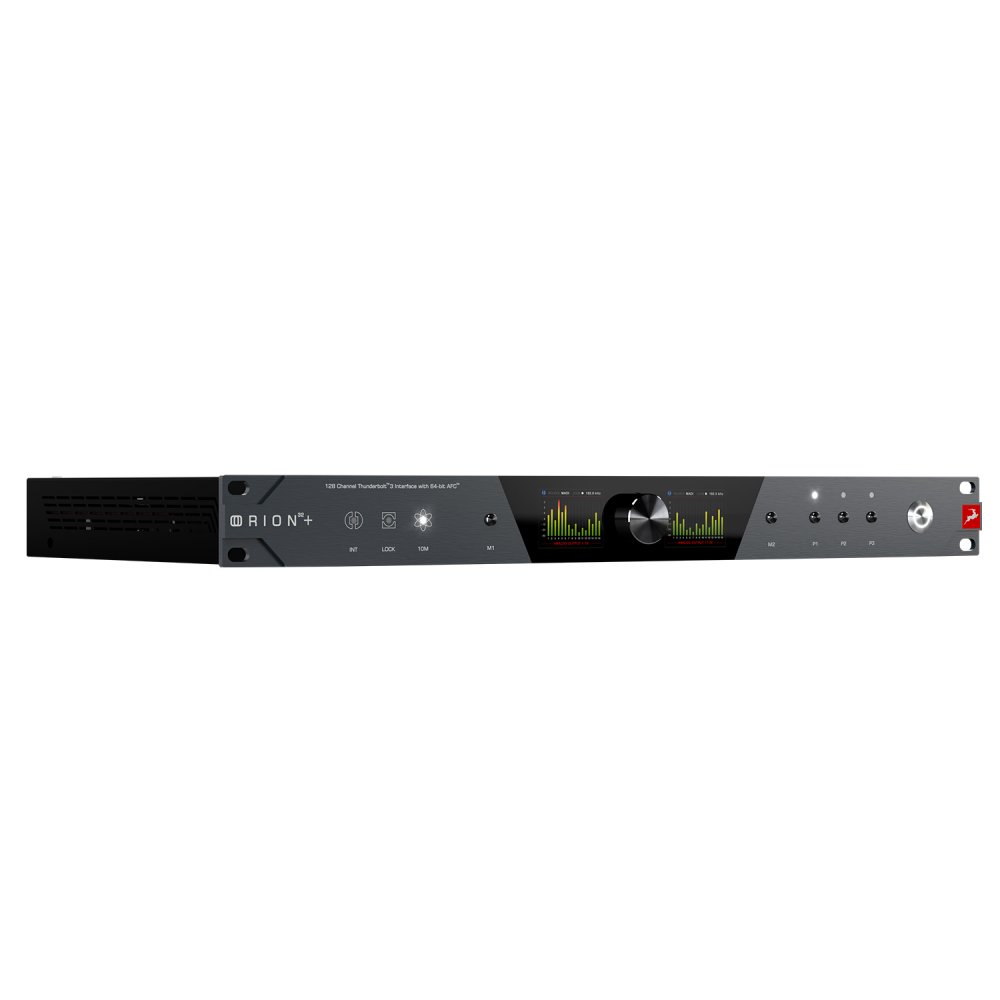

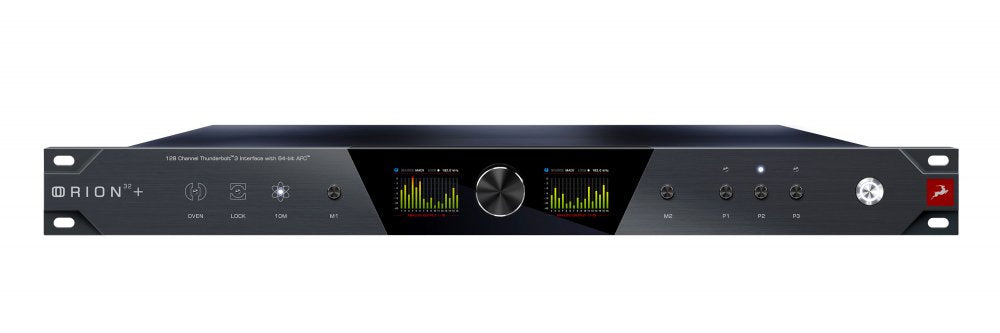

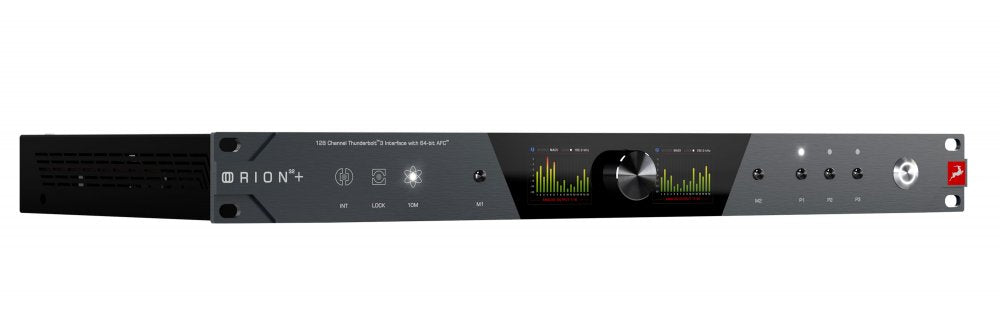

Antelope Audio Orion 32+ | Gen 4
UPC/EAN #850041548067
MPN #Orion 32+ | Gen 4
$4395.00 (Special)
Save $150.00, Regular $4545.00
128-Channel Thunderbolt/USB audio interface with 64-bit AFC
For over a decade now the Orion 32 line of interfaces has been revolutionizing the world of professional audio recording and production. The latest revision of this iconic 1RU studio centerpiece steps up the game by taking the best of its predecessors and adjusting it to the ever-growing needs and standards of the industry. Orion 32+ Gen4 incorporates the latest Antelope Audio tech, drastically boosting the unit's potential.
STANDARD-SETTING CONVERSION AND CLOCKING
Antelope Audio interfaces are globally renowned for their industry-leading conversion and clocking and Orion 32+ Gen4 gives you the latest Antelope technology. Its AD/DA converters are capable of achieving up to 130dB dynamic range, ensuring Gen4 its leading position among 1U studio centerpieces. Antelope Audio's signature 64-bit Acoustically Focused Clocking technology powers the high-performing conversion and the unit's two Word Clock outputs are there to keep your whole studio in line. Additionally, the available 10MHz input is compatible with the cream of the crop of clocking - the unrivaled 10M & 10MX Atomic Clocks by Antelope Audio.
128-CHANNELS OF AUDIO VIA THUNDERBOLT? AND MADI
Orion 32+ Gen4 can stream twice as many channels over Thunderbolt? as its predecessor and has twice as much MADI connectivity, now at 128 channels for both. These significant upgrades allow for up to four units to be daisy-chained for 128 channels of AD/DA via a single computer connection. This makes the unit a top choice for large recordings, live sound applications, complex post-production setups and broadcast facilities. It's a preferred companion to large mixing consoles, hardware effects processing chains, analog summing boxes, reel-to-reel setups, hardware synthesizers and pretty much anything else you can throw at it.
EMBRACE THE FUTURE OF AUDIO PRODUCTION
Orion 32+ Gen4 is compatible with the latest Antelope Audio Atmos-ready surround and immersive audio monitoring system. The integrated platform supports over 23 audio formats from stereo to Dolby Atmos 9.1.6 and offers precise speaker and room calibration tools. The system's intuitive monitoring controls and fast preset recall functionality are designed to increase productivity. It is available as an optional upgrade for the Orion 32+ Gen4. As a physical extension of the system, the compatible Antelope MRC hardware controller provides streamlined and tactile controls that are key for effortless yet advanced monitoring.
REDESIGNED WORKFLOW FOR IMPROVED PRODUCTIVITY
Orion 32+ Gen4 comes not only with an updated look and drastically boosted hardware but with a redesigned Software Control Panel for an even smoother workflow. It now features a powerful preset recall system complete with signal routing, level adjustments, mixer settings and monitoring controls, among others. A handy monitoring pop-out widget has been introduced for hands-on output level control and preset recall, featuring an always-on-top function.
The unit's signal routing matrix is now fully customizable with convenient patching and less complexity in mind.
EASY INTEGRATION IN ANY SETUP
Orion 32+ Gen4 is more than generous when it comes down to its available connectivity options. The unit is designed for quick and effortless integration in a variety of studio configurations - be that Thunderbolt or USB based. The interface is compatible with both Windows and macOS systems and with extra options such as its ADAT port is guaranteed to fit all possible applications - from recording, mixing, interfacing, and conversion to being used as an advanced patch bay or monitor controller. Orion 32+ Gen4 is also ready to become your modular synth's best friend as it features DC Coupled I/O allowing you to send CV signal from your DAW of choice straight up to your hardware instruments.
Features
32x32 channels of DC coupled analog I/O plus dedicated stereo monitor output128 I/O channels over Thunderbolt? 3 or 32ch via USB, at up to 192kHz128 I/O channels over optical MADI at up to 48kHzHigh-performing conversion with up to 130dB dynamic rangeAcclaimed 4th Generation AFC? 64-bit clocking and jitter managementOptional multi-channel, Atmos-ready monitoring calibration system built-inSoftware control panel with powerful preset system, monitoring pop-out widget and customizable signal routing matrixAdditional ADAT and S/PDIF connectivitymacOS & Windows compatible over both Thunderbolt? and USB
Specifications

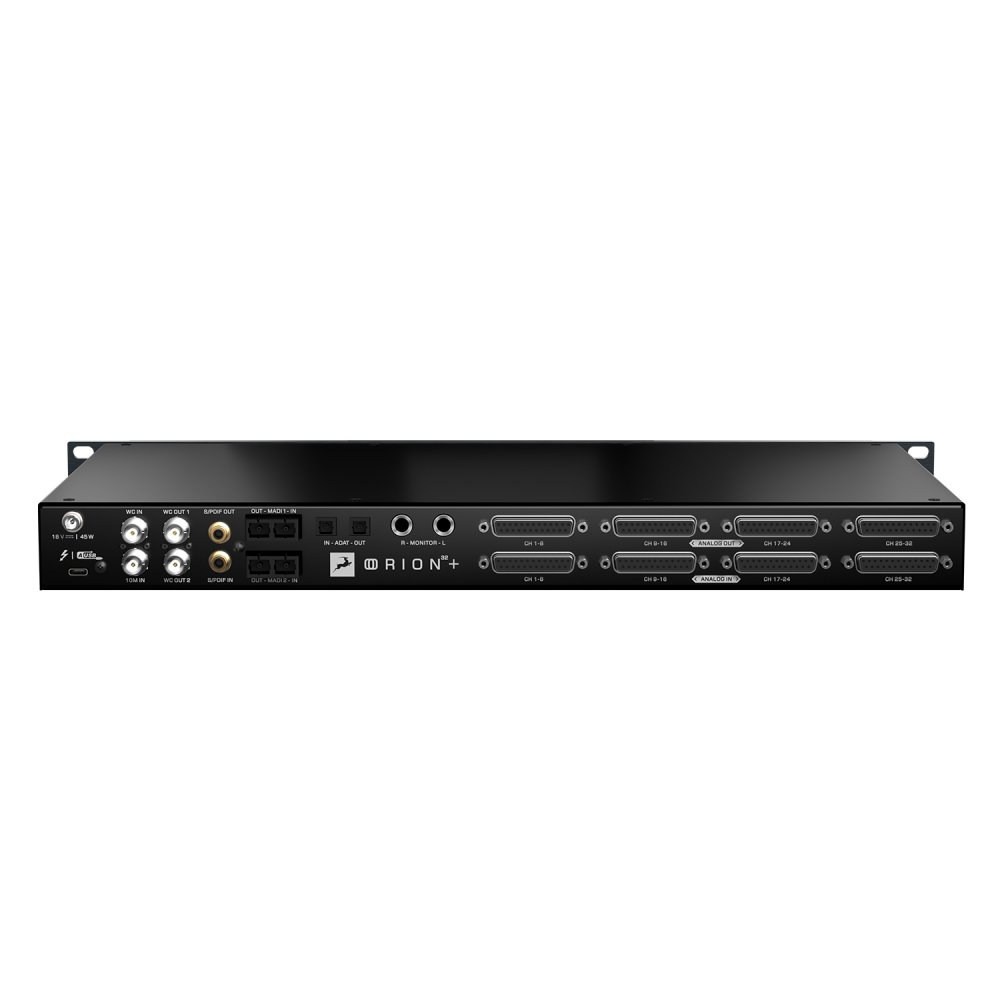

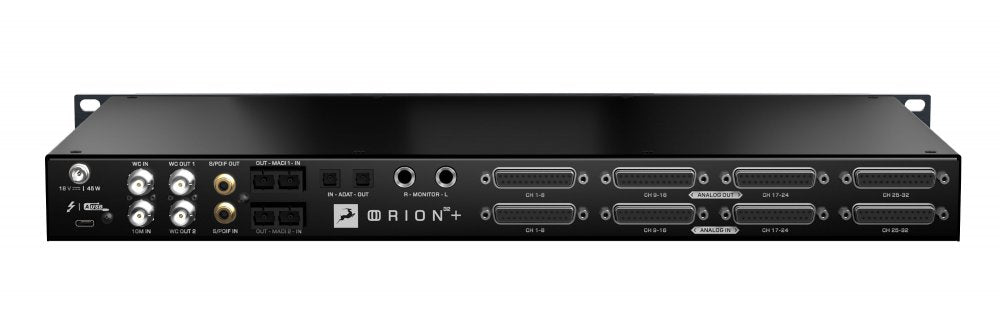

ANALOG
Analog Inputs
4 x D-SUB 25 (32 channels total), +24dBu max
Analog Outputs
4 x D-SUB 25 (32 channels total), +24dBu2 x Monitor Outs on TRS 1/4 Jacks
D/A Monitor Converter
Dynamic Range: 130 dB (A-Weighted)THD + N: -115 dB
A/D Converters (Line In)
Dynamic Range: 122 dBTHD + N: -116 dBDC coupled
D/A Converters (Line Out)
Dynamic Range: 130 dBTHD + N: -115 dBDC coupled
DIGITAL
Digital Inputs
2 x Fiber Optic MADI (up to 128ch)1 x ADAT (up to 8ch)1 x S/PDIF
Digital Outputs
2 x Fiber Optic MADI (up to 128ch)1 x ADAT (up to 8ch)1 x S/PDIF
Thunderbolt?
1 x Thunderbolt? 3 (128 channels I/O)
USB I/O
Same connector as Thunderbolt? portUSB 2.0 Hi-Speed; Data stream up to 480 Mbps/192kHz,32 channels I/O, Type C
CLOCKING
Word Clock Input
1 x Input @ 75 Ohms 3Vpp on BNC 32 " 192kHz
Word Clock Outputs
2 x Outputs @ 75 Ohms 3Vpp on BNC 32 " 192kHz
Atomic Clock Input
1 x 10M Input @ 75 Ohms 1Vpp on BNC
Clocking System
4th Generation Acoustically Focused Clocking64-bit DDS
Sample Rates (kHz)
32, 44.1, 48, 88.2, 96, 176.4, 192
OTHER
Operating Temperature
0-50C, 32-122F
Weight
3.4kg / 7.4lbs
Dimensions
Width: 483 mm / 19"Height: 44 mm / 1.73"Depth: 280 mm / 11"
In the box:
Orion 32+ Gen4 - 32-channel AD/DA Interface with AFC? Clocking TechnologyGetting started guidePower adapterUSB cable
Write a review about the Antelope Audio Orion 32+ | Gen 4
![]()
4.0
ARCHTOP STUDIOS
Woodstock New Brunswick
September 29, 2023
Antelope Orion 32+ Gen 4
My last Sound Card Interface was the Apogee I/O Mark1. So I was very used to having pristine sound with no problems what so ever. I needed a to upgrade as it was time but I now needed some with 32 ins and outs and with Apogee that would have costed me over $10,000.00.
Read moreSo I have heard lots about Antelope and the price was in my price range. So it's now in my studio and I think this is a great product. It's a slightly different sound than my Apogee and the Antelope is as every bit as good as the Apogee. Actually the sound is more real like because there is no bumps in the frequencies as with the Apogee. I started off using the USB cable they give you and that's actually a waste of time. I bought a Thunderbolt cable and the program worked flawlessly once I bought the Thunderbolt cable. I really like the sound of this unit. It was actually easy to configure. The only problem I had was with the USB cable. So if your thinking of getting one go out and buy one, you will not be disappointed what so ever. Plus, thanks Mario for putting me in the direction of the Antelope Orion 32+ Gen 4. Merci?..
