ANTELOPE AUDIO  |  SKU: 11509

10MX

Rubidium atomic clock with support for sampling rates of up to 768 kHz


$9,865.00 CAD
Shipping calculated at checkout.

Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

FUSION OF FLAWLESS CLOCKING TECHNOLOGIES 10MX features the atomic precision of 10M and Trinity's groundbreaking jitter management algorithm

10MX is the newest and the premier member of the Isochrone family. It features technologies from two of Antelope's legendary products. The atomic precision of the 10M and the sophisticated jitter-management algorithm of Trinity are combined in a futuristic, 1U rack space enclosure, providing the world's most stable and musical clocking.

10MX is a fusion of proven technologies and contemporary industrial design, where no compromises are allowed and both build-quality, and performance-excellence are top priority. The new Rubidium Atomic Clock is an epiphany of more than 20 years' expertise in the digital audio world, making vividly real the clarity, depth, width and 3-dimensionality distinctive of the analog sound.

ATOMIC CLOCKING 10MX fits any studio environment - from recording to mixing and mastering

10MX is perfectly suited for recording, mixing and mastering environments. Its form factor, occupying only 1U of rack space, makes it ideal for live sound application where rack slots are precious commodity. The multiple atomic outputs allow up to 10 devices to be clocked simultaneously over BNC outputs of 10MHz. The unit can also be used as a master clock with 4 outputs, supporting the outstanding sampling rate of up to 768 kHz via BNC. Two more clocking outputs are available via AES and two via S/PDIF.

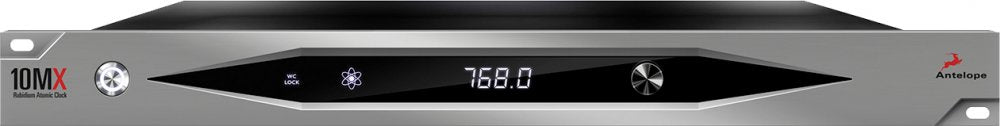

ADVANCED CONTROL Access all features of 10MX via its user-friendly software app or from the sleek front panel The new Rubidium Atomic Clock is equally easy manageable either from the front panel or the intuitive software control panel available for OS X and Windows, connecting via a USB port.

THE LEGEND GROWS The 10MX continues the legacy of the world renowned 10M and Trinity

The new Rubidium Atomic Clock is an epiphany of more than 20 years' expertise in the digital audio world, making vividly real the clarity, depth, width and 3-dimensional distinctive of the analog sound.

Features

4 WORD CLOCK OUTPUTS


The master clock beast: 4 Word Clocks allowing up to 768 kHz

64-BIT ACOUSTICALLY FOCUSED CLOCKING


Flawless clocking powered by Antelope Audio's world-renowned jitter management algorithm

MULTIPLE ATOMIC OUTPUTS


The 10MX's multiple atomic outputs allow up to 10 devices to be simultaneously clocked

ADDITIONAL OUTPUTS


2 x S/PDIF and 2 x AES/EBU master clocking outputs up to 192 kHz

MAXIMUM CONTROL


Intuitive Software Control Panel

PC/MAC CONNECTION


PC/Mac connection via USB, allowing remote control and firmware upgrades

Specifications

Phase Noise (SSB)

1Hz -70 dBc/Hz

10Hz -87 dBc/Hz

100Hz -114 dBc/Hz

1kHz -130 dBc/Hz

10kHz -140 dBc/Hz

Short-Term Stability

t=1s 3E-11

t=10s 1.6E-11

t=100s 8E-12

Time drift in a 24-hr period:

Warm-Up Time

8 - 10 minutes (depends on ambient temperature)

Word Clock Input

1 x Word Clock Input @ 75 Ohms 3Vpp on BNC 44.1 - 384kHz

Maximum Shock Withstanding

Non-operating, flight case mounted

100m/s2 (~10.2 g*), 11 msec half-sine pulse per IEC 60068-2-27:2008

Non-operating, in original packing

300m/s2 (~30.6 g*), 5 msec half-sine pulse per IEC 60068-2-27:2008

* g - gravitational acceleration

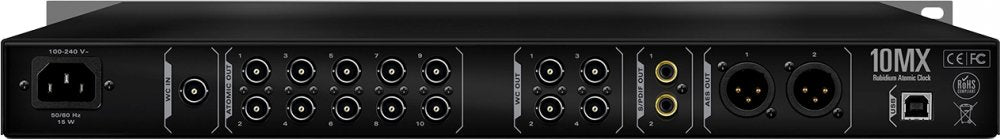

Outputs

Word Clock: 4 x BNC

AES/EBU: 2 x XLR

S/PDIF: 2 x RCA

Word Clock Outputs

4 x Word Clock Outputs @ 75 Ohms 3Vpp on BNC 44.1 - 768 kHz square wave signal

USB I/O

USB 2.0 Hi-Speed; Data stream up to 480Mbits/384kHz, Type B

Clocking System

4th Generation Acoustically Focused Clocking

64-bit DDS

Oven Controlled Crystal Oscillator

Clock Stability

<+/-0.0 2 PPM, oven controlled at 64.5 C

Atomic Reference Type

Rubidium Ultra-Stable Resonance-Controlled Master Oscillator

Frequency

10 MHz

Frequency Accuracy

Better than ±5E-11 @25C (±0.05 PPB)

Aging

Daily* ±2.5E-11

Monthly* ±1E-10

Yearly ±1E-9

(*After 1 day & 1 month of operation respectively)

Atomic Clock Outputs

10 x BNC Sinusoidal, 10MHz, 75 Ohm, 1Vpp typical (unload)

Sample Rates (kHz)

32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384, 768

Word Clock Specs

TTL Level, 75 Ohm Output Impedance

USB

USB 2.0 Full-Speed, Type B, only for control

Operating Temperature

0-50C, 32-122F

Weight

2.8 kg/6.17 lb

Dimensions

482.6 (W) 228 (D) 44 (H) mm

19 (W) x 9 (D) x 1.73 (H) inch

Power Supply

AC

Power Consumption

15 W

Humidity

30 - 80% RH non-condensing

Power Supply Input

100 - 240 V~
