ADAM D3V Monitors Black
UPC/EAN #4260113135280
MPN #AD-D3V/BLK

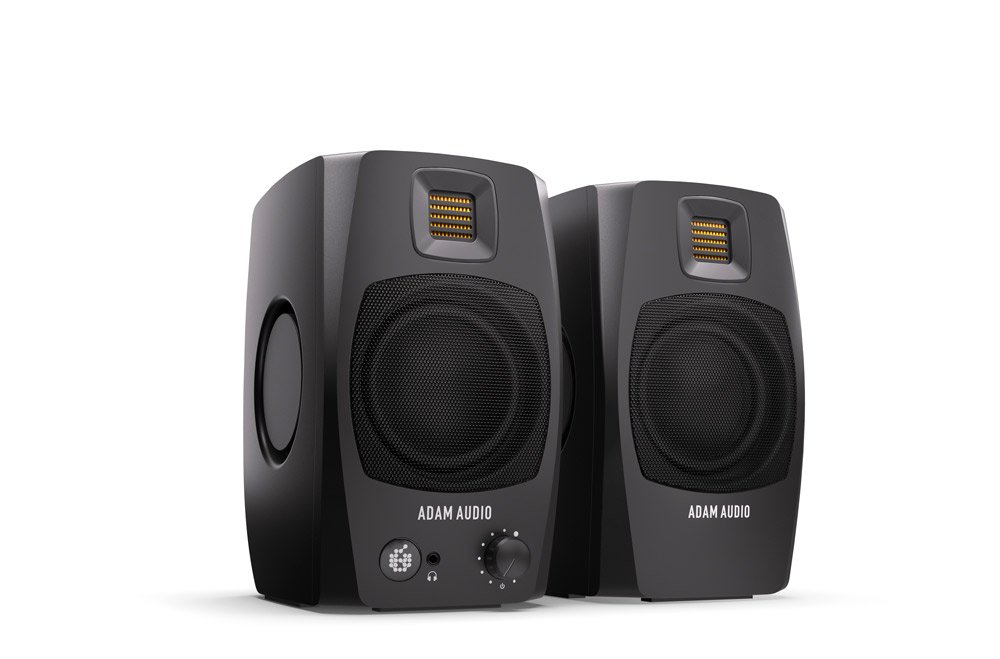

Active desktop monitoring system with iconic ribbon tweeter, USB-C port for uncompressed audio, precise sound reproduction, and refined German industrial design. Available in black
The D3V is an active desktop monitoring system designed for songwriters, producers, office workers, and music lovers who want to enjoy ADAM Audio sound quality as conveniently as possible. Available in white or black editions, the active monitors feature the iconic golden ribbon tweeter and stay true to ADAM Audio's German industrial design heritage.
A distinct advantage of the D3V is the USB-C port. This allows for the transmission of uncompressed audio without the need for an additional audio interface. This digital signal is reproduced to impeccable detail through the woofers and ribbon tweeters " technology that ADAM Audio has been refining for 25 years " and is of far superior quality to audio transmitted wirelessly.
Features
High-Quality Sound: Delivers precise audio with a 3.5" aluminum woofer and advanced ribbon tweeter for clear, balanced sound across all frequencies.Plug-and-Play Connectivity: USB-C input allows direct connection to computers and mobile devices without an audio interface.Versatile Inputs: Offers both digital USB-C and balanced analogue inputs for flexible audio connections.Room Acoustic Adjustments: Features backplate switches to adjust for speaker placement and room acoustics.Compact Design: Comes with detachable angled stands and microphone stand mounting options.Convenient Front Controls: Includes a headphone jack and volume control for easy access.Durable Construction: Built with high-grade injection-molded polycarbonate to reduce vibrations.
Specifications
Acoustics
Frequency Response @ -3 dB: 48 - 22.6 kHzFrequency Response @ -6 dB: 45 - 23.2 kHzMaximum SPL at 1 m: 92 dB (RMS), 96 dB (Peak)Crossover Frequency: 4.0 kHz
Drivers
Woofer: 3.5" single-piece aluminum conePassive Radiators: Dual-sided 3.5" (2 per speaker)Tweeter: 1.5" D-ART (Desktop Accelerated Ribbon Tweeter)Woofer Voice Coil Diameter: 25 mm (1")Tweeter Velocity Transform Ratio: 4:1
Amplification
Woofer Amplifier Type: PWMWoofer Amplifier Output (Peak): 2 x 80 WWoofer Amplifier Output (RMS): 2 x 70 WTweeter Amplifier Type: PWMTweeter Amplifier Output (Peak): 2 x 40 WTweeter Amplifier Output (RMS): 2 x 30 W
Signal Processing
A/D Converter: 24-bitInternal Sample Rate: 48 kHzProcessing Bit Depth: 28-bitLatency: 4.0 msProtection: Independent peak and thermal limiters
Inputs/Outputs
Digital Input: USB-CDigital Signal: Class-compliant USB 1.1Sample Rates Supported: 32, 44.1, 48 kHzBit Depth: 24-bitAnalog Input: 2 x balanced 6.3 mm jackHeadphone Output: 3.5 mm TRS mini-jack
Control Options

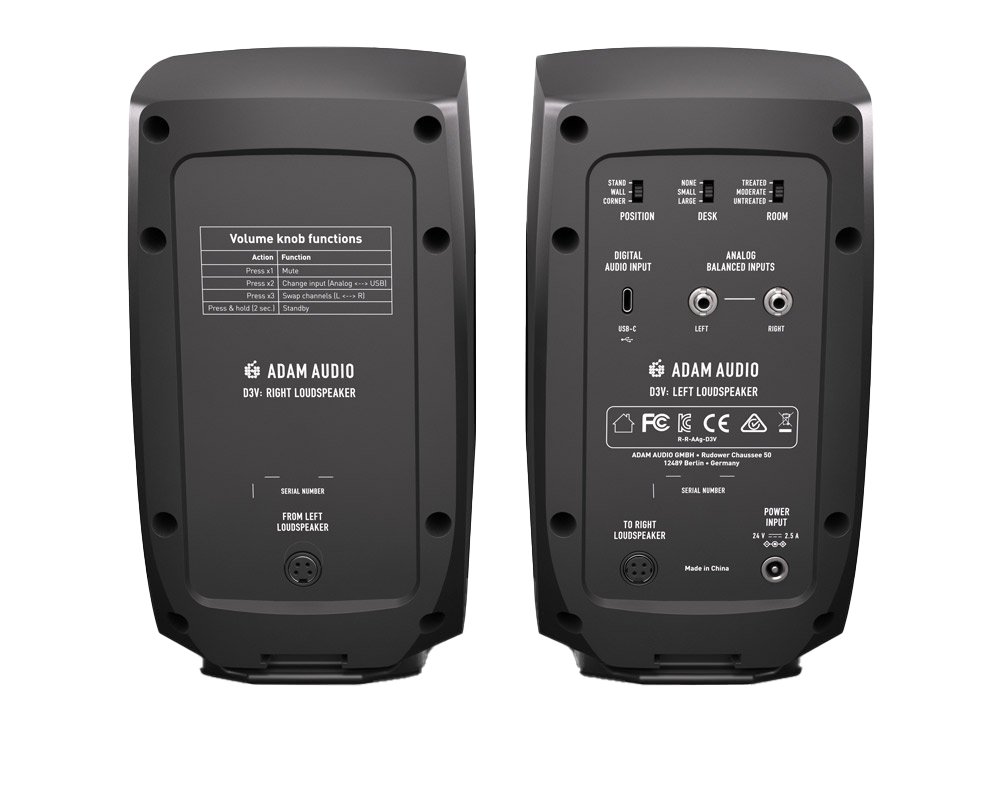

Input Sensitivity: 0 dBu = 88 dB SPL at 1 mVolume Control Range: -? dB to +6 dBVolume Knob Functions: Mute, Standby, Input Select, Channel SwapInput Selection: USB-C, AnalogChannel Order: Normal, L/R SwappedRoom Adaptation Controls: Position (0, -3, -6 dB), Desk (0, -3, -6 dB and 0, -2, -4 dB), Room Acoustics (0, -1.5, -3 dB)
Cabinet Design

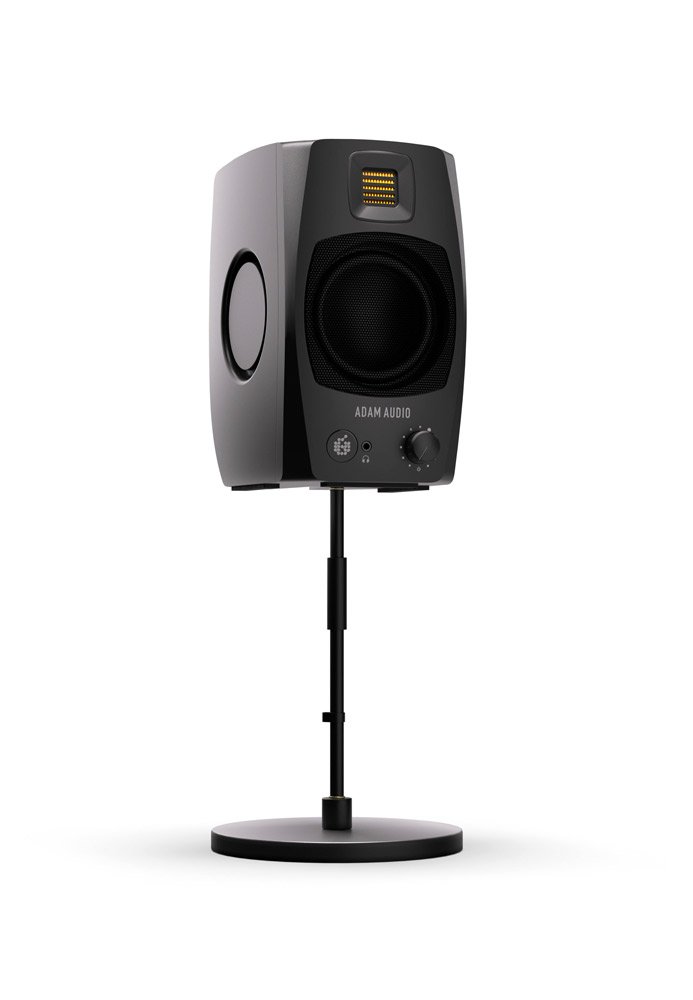

Material: Injection-molded ABS PolycarbonateShape: Dual passive radiator designMounting: Flat, angled (15 with included stands), 3/8" threaded insert for microphone standDimensions (W x H x D): 115 x 200 x 150 mm (without stand)Dimensions with Stand (H): 240 mm
Power
Voltage: 100-240 V, 50/60 HzPower Rating: 60 W max
Weight
Left Speaker: 1.85 kg (4 lbs 1 oz)Right Speaker: 1.73 kg (3 lbs 13 oz)Shipping Weight: 5.64 kg (12 lbs 7 oz)
Included Accessories
2x D3V angled stands6x D3V desktop pads1x 2m speaker link cable1x PSU and mains power cable1x 1m USB-C to USB-C cable1x USB-C to USB-A adapter
