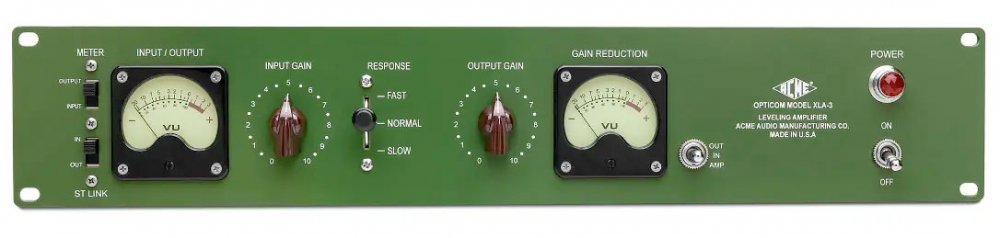

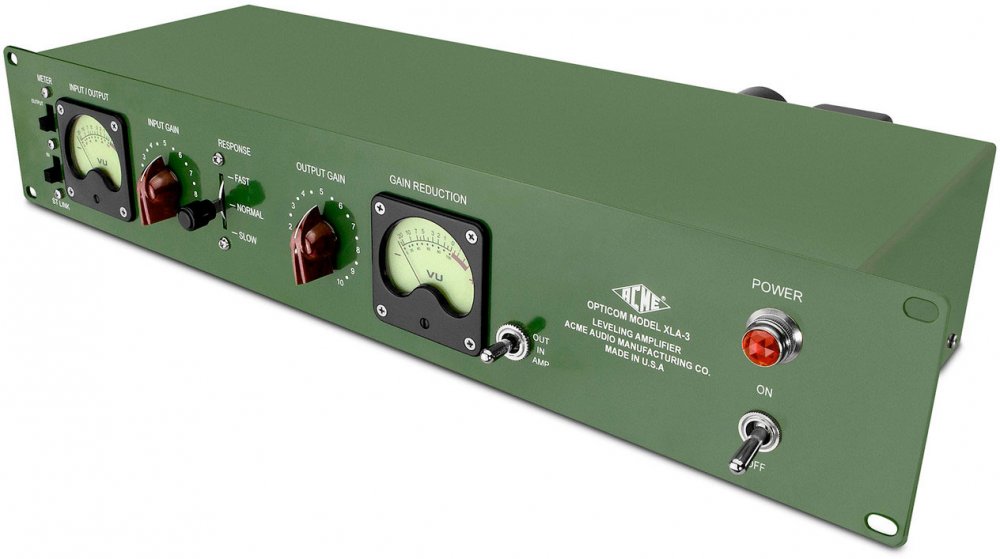

Acme Audio Opticom XLA-3 MKIII

MPN #OpticomXLA-3 MKIII

$3615.00

Financing available

Be the first to write a review

Free shipping in Canada. Conditions

All-tube optical limiter with triple optoelectronic circuit and CineMag input transformer, inspired by the Teletronix LA-2A

The Opticom XLA-3 is an all-tube optical limiter inspired by the classic Teletronix LA2A. Loving the la2a's smooth natural compression characteristics but seeking to improve upon its single compression speed inspired us to develop the XLA-3. The heart of the XLA-3 is a unique triple optoelectronic circuit that combines the best characteristics of 3 separate compression curves into a single unit. The result: a high-speed optical limiter with tones that range from ?clean' to ?harmonically rich' to ?dirty.'

Features

All tube circuitry

High-speed cadmium-selenide (CdSe) photocells

Custom Bakelite analog control knobs

Full-sized backlit panel meters

15db switchable input pad

Hand-wired 2 stage bypass switch

Triple optoelectronic circuit

Cinemag input transformer

IEC power connector

115/230V AC Mains

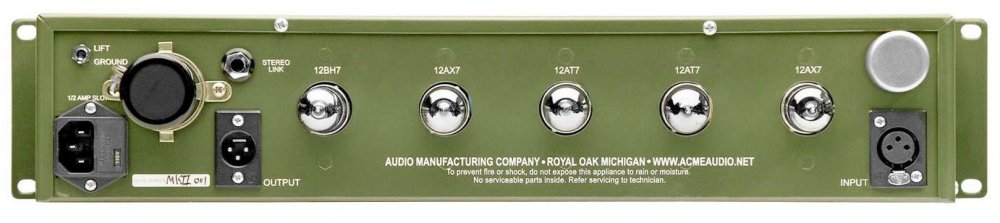

Neutrik XLR input and output connectors

Stereo link connector

Micalex tube sockets

Specifications

Audio Performance

Frequency Response: 20Hz"20kHz ±1.4dB

Distortion: Yes

Gain Reduction: 29dB maximum

Make-Up Gain: 34dB

Physical Specifications

Width: Standard 19? rack mount

Height: Standard 2U (3.5?) rack mount

Depth: 8.75? from front panel

Weight: 10.5 lbs / 4.8 kg

Power Requirements

Voltage: 115/230V, 60Hz

Current Draw: 265mA

Power Consumption: 32W / 64W
