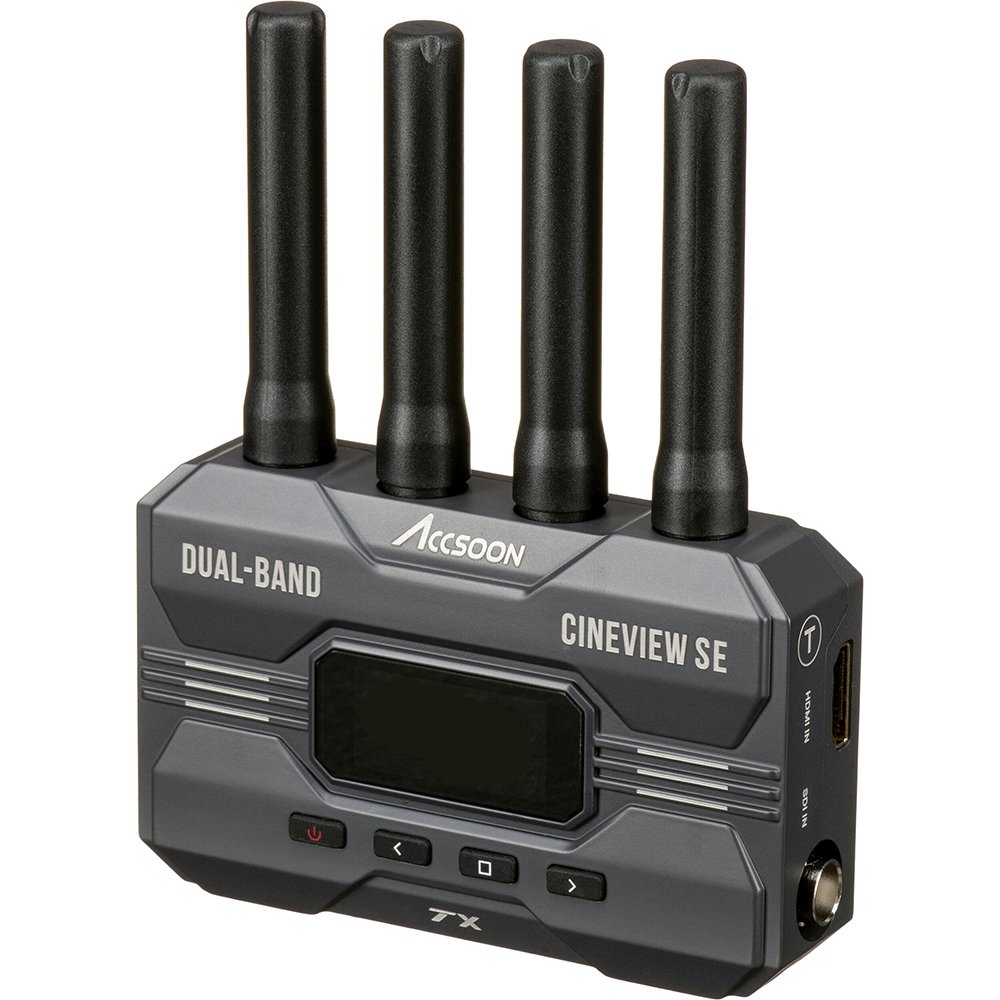

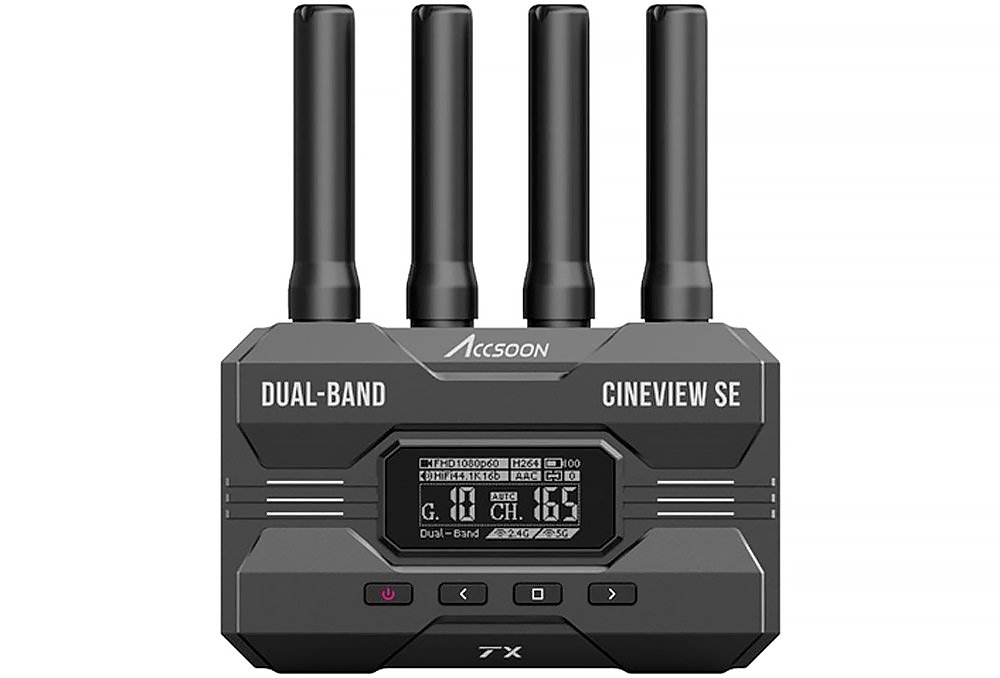

Accsoon Cineview SE-Transmitter
UPC/EAN #664918771751
MPN #ACS-WIT04-SE-TX
$319.00 (Special)
Save $110.00, Regular $429.00
CineView SE-TX (TX Only). Dual Band transmission, 1200ft range, 50ms latency, SDI & HDMI. Compatible with Smartphone APP
Accsoon's most powerful, most advanced SDI TX/RX system to date is the latest addition to the CineView line. It is solidly built from aerospace-grade aluminum alloy and has a modern fanless design for silent running. The CineView SE is the ultimate affordably priced SDI and HDMI wireless on-set and on-location monitoring solution for productions of all sizes.
Accsoon Dual-Band reliability with four antennas
The CineView SE RX and TX units each have four removable antennas and a range of 1200ft using Accsoon's unique Dual-Band wireless technology. This transmits the same image on both 2.4GHz and 5GHz frequencies at the same time. The receiver then intelligently identifies interference as it combines the two signals together as needed into a complete single stream. This is inherently more stable than lower performing wireless systems that simply hop between frequencies. The result is super robust, near real time transmission of HD video and audio that can reach the length of a football field and is not plagued with drop-outs and black screens. Screen lag is almost imperceptible with new best-in-class latency at under 50ms.
SDI and HDMI
The transmitter has both SDI and HDMI inputs, while the receiver has SDI and HDMI outputs, both capable of frame rates up to 1080p 60fps. It even accepts SDI level A and B signals to cater for older professional cameras. This makes the CineView SE the perfect companion for every DP, director or camera operator thanks to its compatibility with a wide range of cinema, professional and mirrorless cameras.
Smaller than ever
CineView SE is even smaller and lighter than ever, with both transmitter and receiver weighing in at just 210g each. Both RX and TX units are around the size of a pack of cards, measuring 105mm x 66mm x 32mm, excluding antennas. This makes it much more compact than previous CineEye 2S Pro model, while at the same time enhancing performance.
View on multiple monitors or iOS devices
Like other CineView models, the CineView SE TX can be used with up to four other CineView RX units. It can also transmit to up to four iOS or Android devices running the Accsoon Go app, or any combination of RX units and smart devices totalling four.
Newly improved Accsoon Go app and Livestreaming
Monitor, record and stream from the CineView SE using the Accsoon Go app on iOS and Android devices. The free app offers a huge range of monitoring and recording features and has been freshly updated with some exciting new tools. As with the previous version of Accsoon Go, it can record HD video transmitted from the CineView SE to your smart device for instant review and social media sharing, plus stream it using RTMP to popular video sharing sites.
The new tools include Smart Sharpening for more accurate focusing, Onion Skin Overlay for precise repetition of shots and improved LUT loading and recording. These add to the existing high-end features like Focus Peaking, Histogram and False Color. There is also a new ability to Multitask with the Go App on Split View when using a suitable iPad.
For users wishing to use the CineView SE solely with iOS and Android devices the TX will also be available to purchase standalone without the RX. Accsoon offers complete flexibility to wirelessly monitor the way the user needs.
The new CineView platform - faster, smaller, cooler
The CineView SE uses the latest improved version of the computing platform first seen on the acclaimed CineEye series. After years of painstaking development by Accsoon, the result is a system that is even faster, smaller, more efficient and cooler-running than before.
The CineView SE is the perfect companion for gimbal shots
Run for hours on a single battery
The CineView SE has incredibly low power consumption and a single NP-F970 battery can last up to 12 hours. Additionally, it can be powered via the DC input port (7.4V~16.8V) as well as a USB-C power source (5V). The unit can remain powered on while switching between these sources, allowing for continuous operation on long shoots.
Features
Dual-Band Transmission: Streams video simultaneously over 2.4GHz and 5GHz for a stable and interference-free connection.Full HD Support: Transmits video up to 1080p resolution at 60fps for high-quality monitoring and recording.Low Latency: Ensures real-time video transmission with minimal delay, ideal for live production and filming.Wide Range: Offers a transmission range of up to 1200 feet, making it suitable for large production areas.Multiple Device Streaming: Connects to up to four devices, including monitors, tablets, and smartphones, for flexible monitoring.Compact and Lightweight: Easily mounts on cameras or rigs without adding bulk.HDMI Input: Compatible with a variety of cameras, making it versatile for professional setups.Built-In Antennas: Ensures a clean and simple design with reliable performance.Easy Setup: Features plug-and-play functionality for quick and effortless use.Durable Construction: Built to withstand the demands of professional filming environments.
Specifications
Channels: 20
Frequency Range: 2412 to 2472 MHz, 5180 to 5580 MHz, 5660 to 5825 MHz
LUT Support: .cube
RF Power: 17dBm
Video Connectors: 1 x HDMI Input, 1 x SDI Input; 1 x HDMI Output, 1 x SDI Output
Video Format: 1080p at 23.98, 24, 25, 29.97, 30,50 59.94, 60 fps, 1080i 50, 59.94/50fps 720p/576p/480p
Wi-Fi: 2.4GHz & 5 GHz
Wireless Range: 1200' / 400 m (Line-of-Sight)
