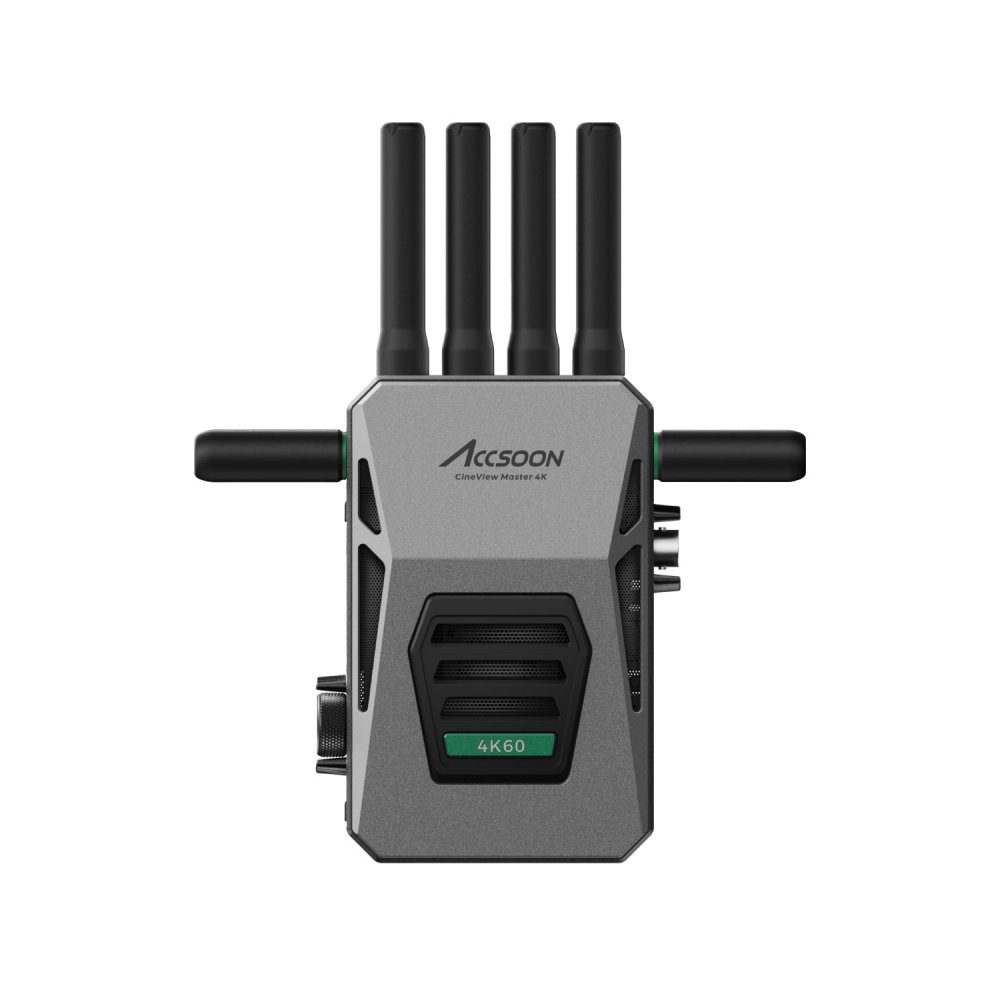

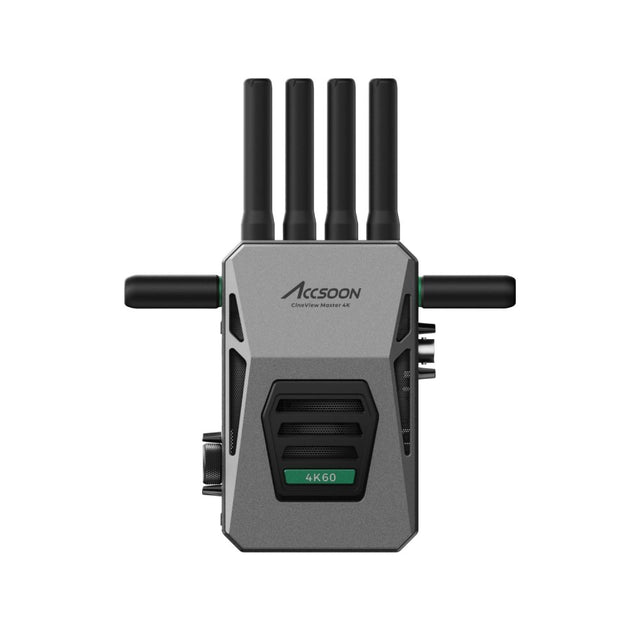

Accsoon CineView Master 4K-TX
UPC/EAN #607609770176
MPN #ACS-WIT07-RX
Transmitter only, 4K60 transmission, 25ms latency, 2.5km range, tri-band support, SDI/HDMI inputs, HDMI loop-out, USB-C video out, up to 5 devices, and DC or NP-F battery power
The CineView Master 4K transmitter is designed for high-performance, professional video transmission. It supports a wide range of features to ensure smooth and versatile operation. The transmitter can handle true 4K60 video transmission with minimal latency (as low as 25ms) over long distances, up to 2.5 km in ideal conditions. This makes it ideal for live production setups where high-quality video needs to be sent over significant distances without losing resolution or timing.

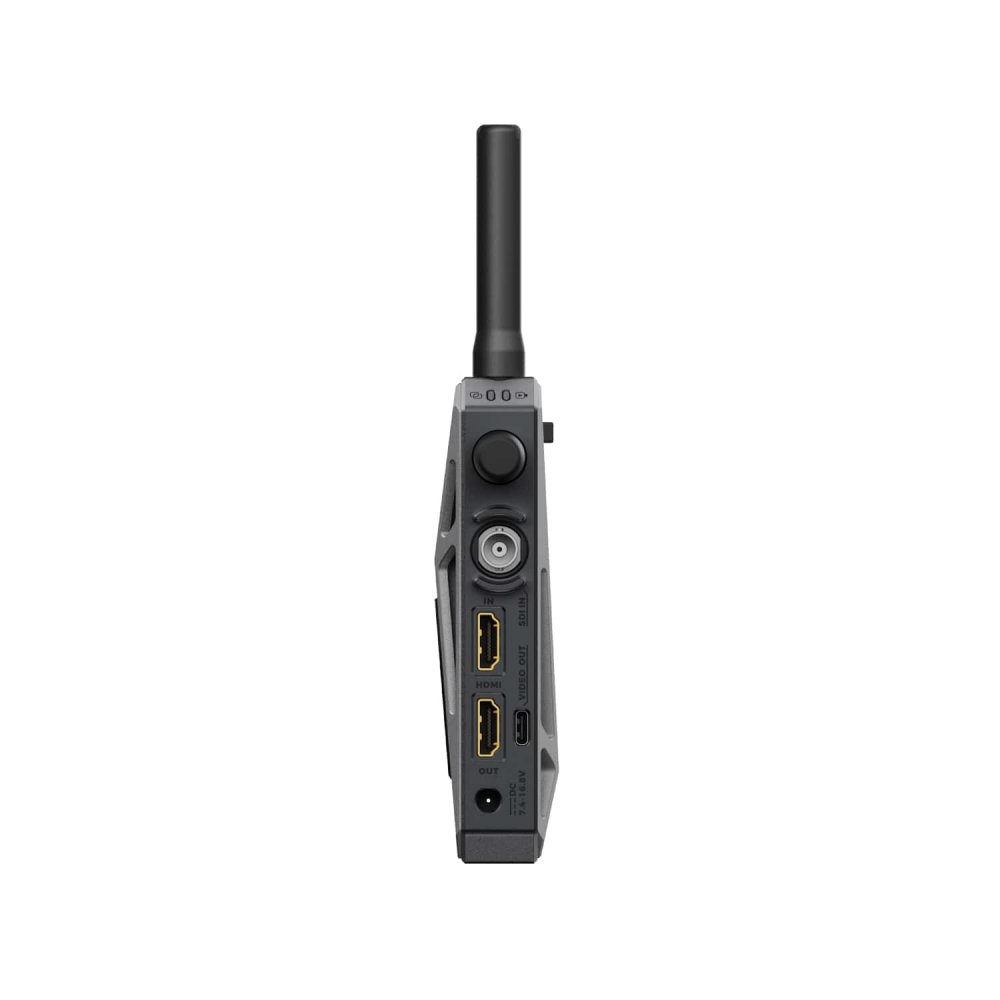

The transmitter comes equipped with HDMI and SDI inputs, along with HDMI loop-out for flexibility in connecting to different devices. It also has USB-C video out, which allows for direct wired transmission to iOS devices like iPhones or iPads, turning them into high-quality monitors. Wireless video transmission is enhanced by the use of tri-band technology (2.4GHz, 5GHz, and 6GHz), providing strong and stable signals even in challenging environments. Up to five devices can receive signals simultaneously, with one wired and four wireless connections.
Features
4K60 Wireless Transmission: Supports true end-to-end 4K video streaming for professional monitoring.Tri-band Wireless System: Operates on 2.4GHz, 5GHz, and 6GHz frequencies for stable transmission.Low Latency: Best-in-class latency of 25ms for real-time video monitoring.Multiple Video Inputs: Offers SDI and HDMI inputs, with HDMI loop-out for simultaneous video output.Wired and Wireless Connections: Can transmit video wirelessly or via USB-C to iPhone/iPad with MFi certification.Simultaneous Transmission: Capable of sending video to up to five devices (one wired and four wireless).Power Versatility: Can be powered via NP-F battery or DC input with hot-swap capability for uninterrupted use.Full-Color Display: 1.05-inch screen provides status and settings at a glance.Durable Build: Aerospace-grade aluminum for a lightweight yet sturdy design.
Specifications
General
Weight: 322g (without antennas)Dimensions: 130mm x 95mm x 32mm (without antennas)Power Input: 7.4V - 16.8V (DC Input via 5.5mm x 2.1mm port, center positive)Compatible Battery: NP-F550, NP-F750, NP-F970 seriesPower Consumption: 6.5W (without powering other devices)
Video Input/Output
SDI Input: 3G SDI, supports up to 1080p60HDMI Input: 4K (3840x2160) 24/25/30/50/60p, 1080p 24/25/30/50/60p, 1080i 50/60iHDMI Loop-Out: Identical to HDMI inputUSB Video Output: USB-C to iOS devices (for wired transmission)
Transmission
Wireless Protocol: Proprietary RTMS4.0Tri-band transmission: 2.4GHz, 5GHz, 6GHz with DFS (Dynamic Frequency Selection)Latency: 4K < 35ms, 1080p < 25msMaximum Range: 2.5km (with FCC compliance, unobstructed)Supports up to 5 simultaneous connections (1 wired, 4 wireless)
Video Formats
Maximum Resolution: 4K 60fpsBitrate: Adjustable up to 24Mbps (for 4K wireless/wired), 12Mbps (for 1080p wireless), 32Mbps (for 1080p wired)Supports both VBR (Variable Bitrate) and CBR (Constant Bitrate)
Display and Interface

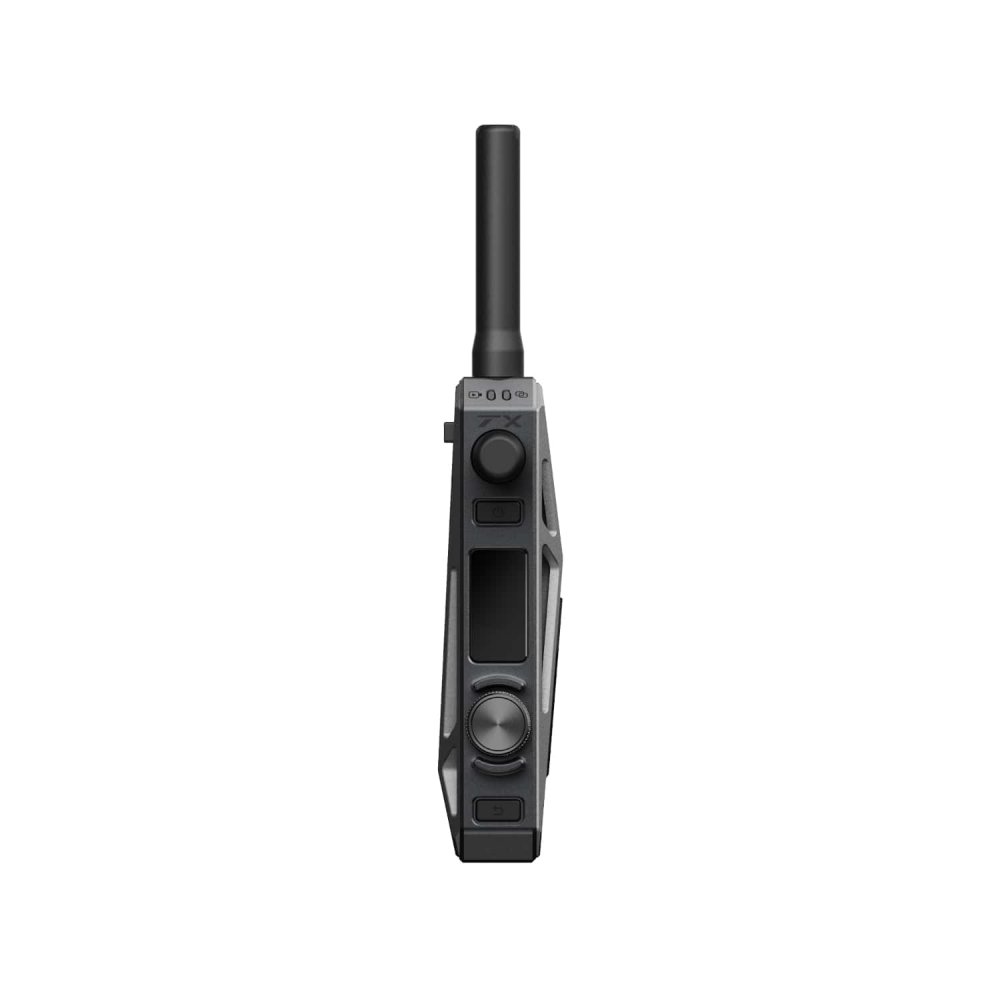

LCD Display: 1.05-inch full-colorUser Interface: Menu navigation via knobIndicators: Battery level, connection status, video input, and frequency settings
Compatibility
Supported Devices: iPhone 12 and newer, iPad Pro 12.9-inch (Gen 3+), iPad Pro 11-inch (Gen 3+), iPad Air (Gen 4+), iPad mini (Gen 6+)Mobile Monitoring: Accsoon SEE App for Android/iOS
Other Features
Quiet Heat Dissipation: Intelligent fan controlAerospace-grade aluminum alloy constructionMounting: Anti-rotation 1/4" screw hole and cold shoe mount
