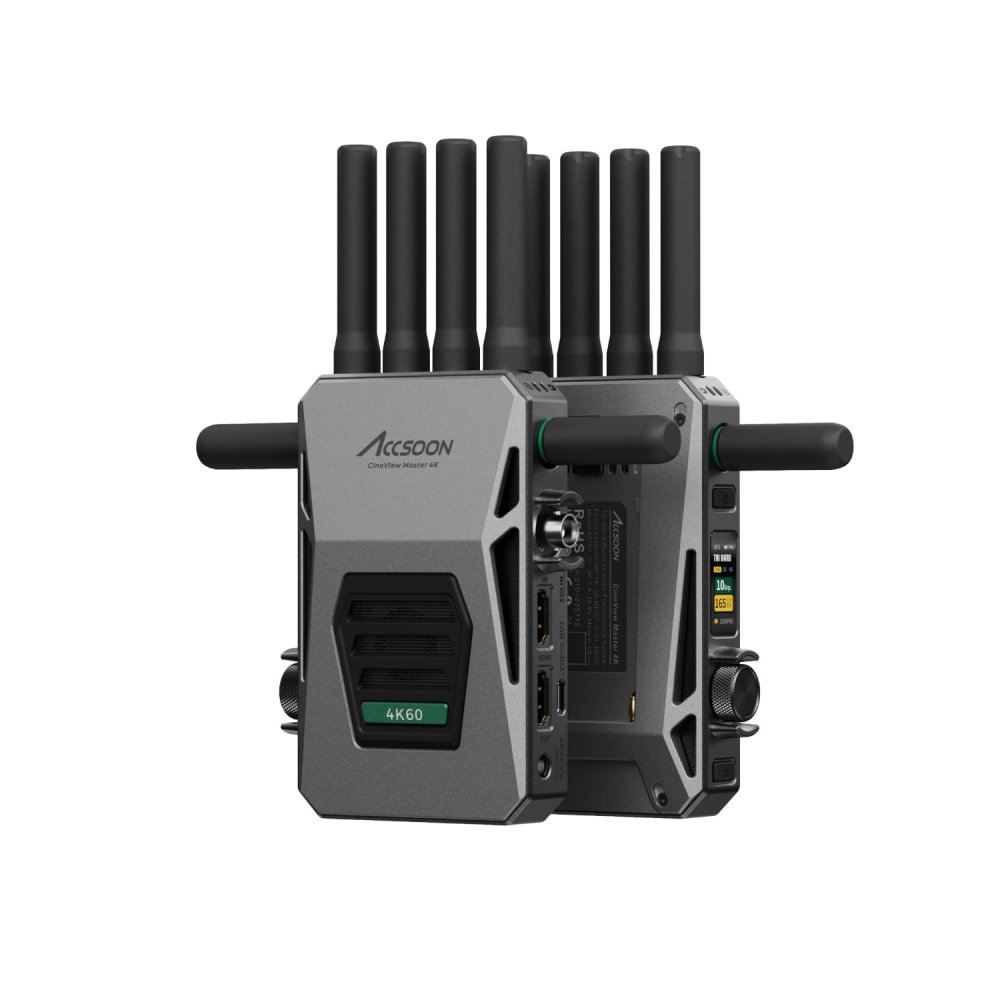

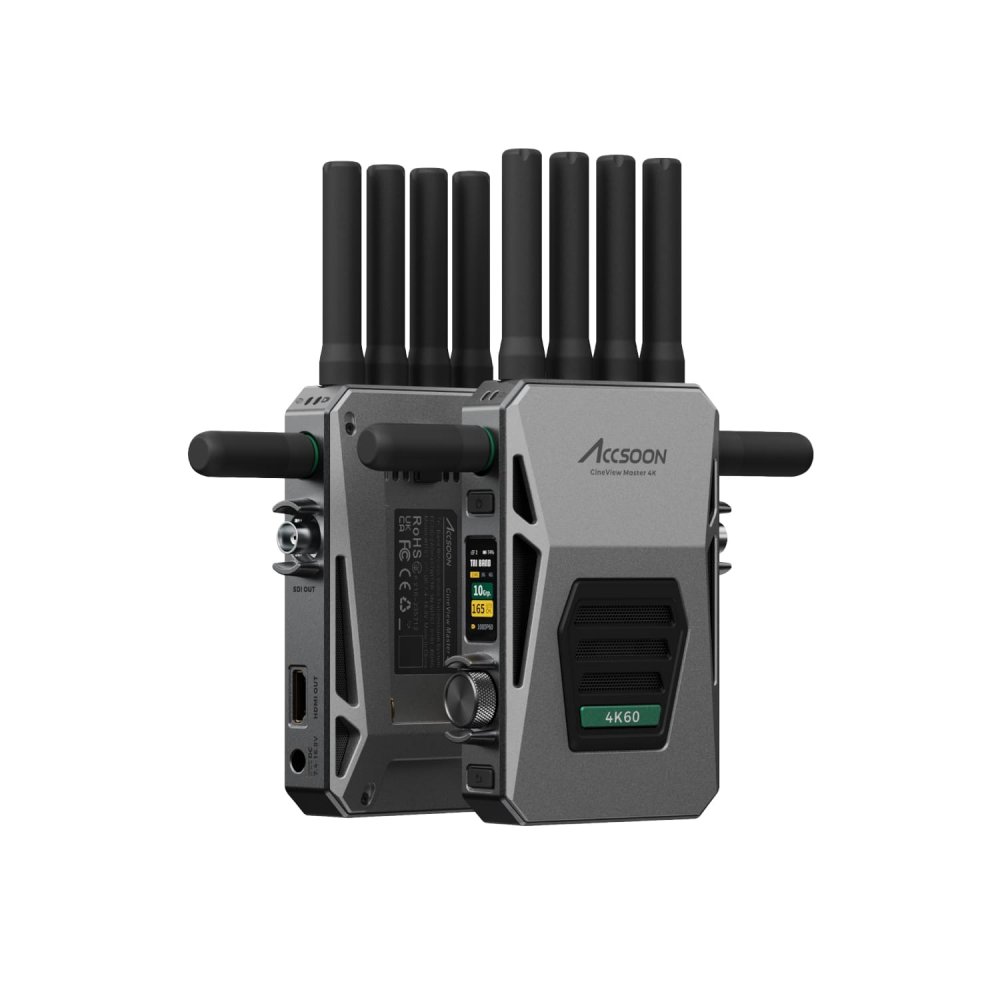

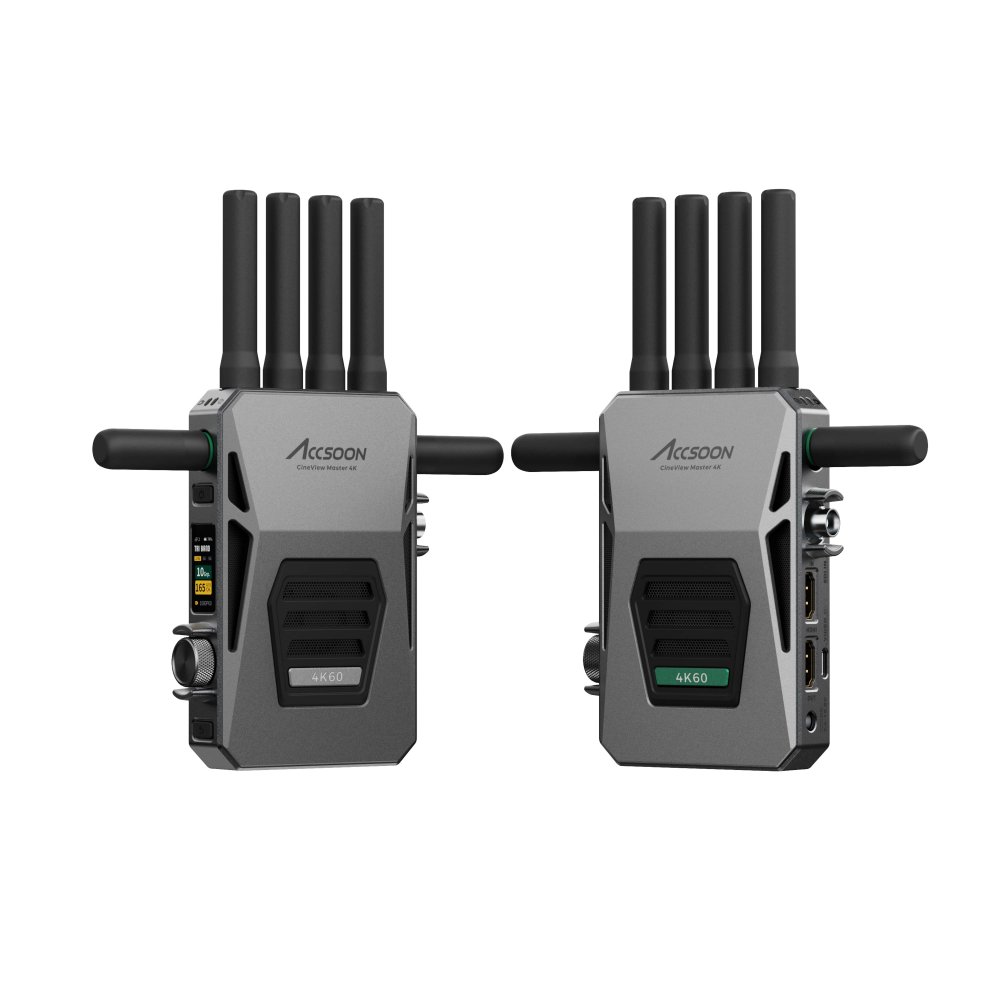

Accsoon CineView Master 4K
UPC/EAN #664918772444
MPN #ACS-WIT07
True 4K60 wireless video transmission, 25ms latency, 2.5km transmission range, tri-band (2.4GHz, 5GHz, 6GHz), supports SDI/HDMI inputs, streams to 5 devices simultaneously
The Accsoon CineView Master 4K is a cutting-edge wireless video transmission system designed for high-end production environments. It features true 4K60 video transmission, offering remarkable image quality and minimal latency, ideal for filmmakers and content creators. Utilizing a tri-band (2.4GHz, 5GHz, and 6GHz) wireless transmission technology, it ensures stable and interference-free connections, even in challenging environments. With a transmission range of up to 2.5 kilometers and an industry-leading latency of just 25 milliseconds, it provides reliable performance for capturing and monitoring video over long distances.
The CineView Master 4K supports both SDI and HDMI inputs on the transmitter, and allows output to SDI and HDMI from the receiver, offering flexibility for various video setups. It can simultaneously stream to up to five devices, including smartphones and tablets through the Accsoon SEE App, making it perfect for multi-device monitoring. Its versatile design supports both wireless and wired (USB-C to iOS) connections, enabling users to convert mobile devices into professional monitoring tools. This system is ideal for filmmakers looking to enhance their on-set monitoring capabilities without compromising on video quality or reliability<<.
Features
True 4K60 TransmissionTri-Band Wireless TransmissionLow LatencyExtended RangeMultiple Video StreamsDevice ConnectivitySDI and HDMI Inputs/OutputsAccsoon SEE App IntegrationDurabilityPower Options
Specifications
Transmission
End-to-end true 4K60 wireless video transmissionTri-band wireless transmission (2.4GHz, 5GHz, 6GHz + DFS)Transmission range: Up to 2.5km (unobstructed, low-interference conditions)Latency: 25ms (1080p), 35ms (4K) without camera latencySupport for up to 5 devices simultaneously (1 wired, 4 wireless)Video stream options: 4K (stream 1), 1080p wireless (stream 2), 1080p wired (stream 3)
Input/Output
TX: SDI and HDMI inputs, HDMI loop-outRX: SDI and HDMI outputs (simultaneous)USB-C video output (wired connection to iPhone/iPad)HDMI and SDI embedded audio support
Video Formats
SDI input: 1080p (23.98/24/25/29.97/30/50/59.94/60fps), 1080i (50/59.94/60i)HDMI input/output: 4K (24/25/30/50/60p), 1080p (24/25/30/50/60p), 1080i (50/60i)HDMI loop-out: identical to HDMI input
Power
DC input: 7.4-16.8V (5.5mm x 2.1mm connector, center positive)Battery: NP-F550, NP-F750, NP-F970 compatibilityHot-swap capable with DC and battery powerPower consumption: 6.5W (TX), 5.0W (RX)
Hardware
Aerospace-grade aluminum alloy body1.05-inch full-color LCD displayQuiet, intelligent heat dissipation with multiple fan settingsDimensions (excluding antennas): 130mm x 95mm x 32mmWeight (excluding antennas): 322g (TX), 320g (RX)
App Compatibility
Accsoon SEE App: iOS and Android (monitoring, bitrate control, video stream selection)Supported devices: iPhone 12 and later, iPad Pro (3rd gen and later)
Other Features
Wired USB output to iOS (via USB-C or Lightning)Bitrate control (up to 24Mbps for 4K, 12Mbps for 1080p wireless, 32Mbps for 1080p wired)8K high-performance A/V processor for multiple streamsCompatible with Accsoon V-mount battery adapter
