A-Designs REDDI
MPN #REDDI
All-tube Direct Box with Level Control, Ground Lift, Inspired by the Ampeg B-15
The number of A-Designs REDDIs in use on stages and studios all over the world is nothing short of staggering. Quite simply, there just is no better sounding way to convert an instrument or line level signal to XLR.
Designed with the help of top studio engineers and bass players, REDDI has been widely praised by engineers and bassists all over the world as the best-sounding DI solution on the market today.
It is important to note that the REDDI is not a high-gain device! Its gain structure has been painstakingly engineered to avoid the slightest compromise in sound quality. Inspired by the glorious sound of the Ampeg B-15 tube bass amp, REDDI's 6N1-P tube-driven amplifier feeds signal directly into a hefty custom output transformer by Cinemag - a key component to providing a harmonically rich tone.
REDDI'S extremely wide frequency range (20Hz to 60kHz) prevents in-band phase shift, resulting in outstanding detail and realism. Another major benefit of its wide bandwidth is the prevention of LF phase shift by maintaining a linear response extending below the audible bass range, insuring a full, natural sound.

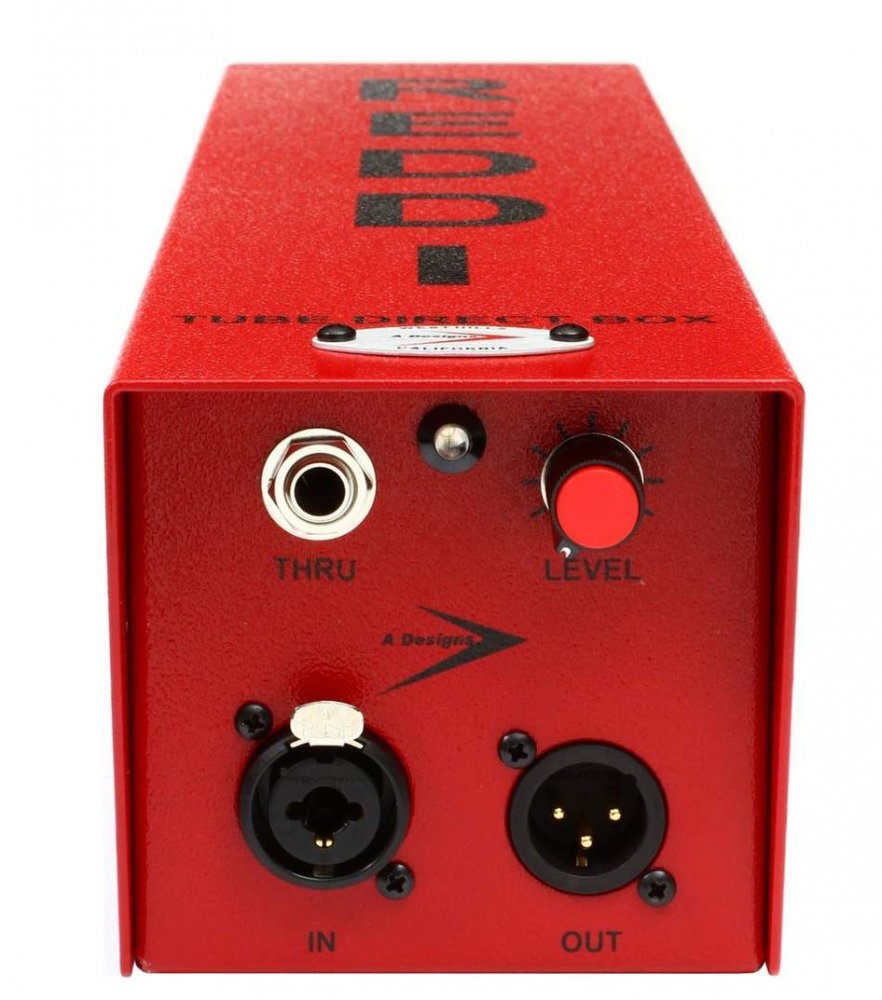

REDDI'S distinctive bright red steel chassis sports a front-panel Neutrik XLR/1/4" combo input jack, balanced XLR output, and a 1/4" thru-put, for sending signal to a bass amp - not only useful for live applications, but also for simultaneously recording direct and miked amp tracks in the studio. A 0-16dB-Level control and a bright blue LED power indicator complete the front panel controls. On the back panel are heavy-duty toggle switches for power and ground lift, along with the IEC power outlet.
The REDDI's all-tube circuitry will enhance the character of any electrified instrument run through it - not just bass! Plug the pickup of an acoustic guitar through REDDI to add depth and fullness to its tone. Capture and improve all the richness and life of an electric piano or analog synthesizer. Warm up sterile sounding digital keyboards or drum machines by strapping a REDDI across their output.
Features
All-tube direct box with custom output transformer.Ultra wide frequency range (20Hz-60kHz).Neutrik input connector, balanced XLR out, and 1/4" thru jack.Inspired by the Ampeg B-15.Clean and airy high end, warmth, transparency, and ultra high-quality sound.Level control.Ground lift.Ultra bright blue LED on/off lamp.Zero-feedback loop design.Massive, custom-wound transformers.6NI-P tube.Low-Z, transformer-balanced output.
Specifications
Frequency Response 20Hz - 60kHzInput impedance: 1M ohmGain range: 16dBNoise (EIN): -126dBOutput impedance: 600 ohmMaximum level: +22dBuDistortion THD: > .08 @ 1kHzPower Requirements: 100/120/230VAC - 42WDimensions (W x H x D) 3-1/2" x 3-1/2" x 14-1/2"Weight 10 lb. (4.54 kg.)
Write a review about the A-Designs REDDI
![]()
5.0
Matt Lederman
Toronto, ON
October 16, 2021
The best bass DI i have ever heard
I tried this unit out a studio years ago and it's been on my wish list ever since. Marc-Andre ordered it for me and it's being used daily on current tracking session. We are running multiple bass guitars through it, and i never have to worry about the tone.
Read moreIt always comes out exactly as you need and full of presence. Can't recommend it enough.
![]()
5.0
Shawn Cole
Coldstream BC
November 25, 2020
Red rocker
As one of the bass players at Village church in Surrey BC, I was introduces to the REDDI. My bass has never sounded so good. It's used by many pro players and for obvious reasons. I highly recommend this unit.
